neoface 2
- James 'PJ' Noxon
- midibim.fremont@gmail.com
-
The neoface 2: Bluetooth MIDI transceiver/Voltage MIDI convertor for effect pedals, providing WIDI and MIDI input, and 2 MIDI outputs in a hand-made bamboo case.
-
The Bluetooth transceiver implements standard MIDI over BLE protocol, sometimes called WIDI (for Wireless MIDI). The WIDI app can be downloaded from the Google Play store or Apple App store in order to control settings, but in many cases this is not necessary because the WIDI adaptor will automatically connect to other Bluetooth MIDI devices. The neoface 2 has three MIDI jacks: one optoisolated MIDI input, and two 5v MIDI outputs. There are two switches on neoface 2: one selects the source from either the MIDI input jack or the WIDI receiver (the middle position mutes the WIDI/MIDI input signals while still providing power from the middle MIDI jack), the other switch controls the out/thru MIDI jack. The middle MIDI output jack provides the selected source (either WIDI input or MIDI input), which is also converted to Voltage MIDI and connects to the effects pedal's control jack input. The out/thru MIDI jack provides either the MIDI out converted from the Voltage MIDI output coming from the processor inside the effects pedal (which copies the received MIDI input and adds some controller messages), or the MIDI signal from the selected source (a bit accurate copy of the MIDI/WIDI input signal without the inherent delay from passing though the processor), or Power Only (the output provides power to any connected device while muting all MIDI message transmission). The MIDI input jack is permanently routed to the WIDI transceiver's input and these signals are sent out via Bluetooth MIDI.
About effect pedals with Voltage MIDI

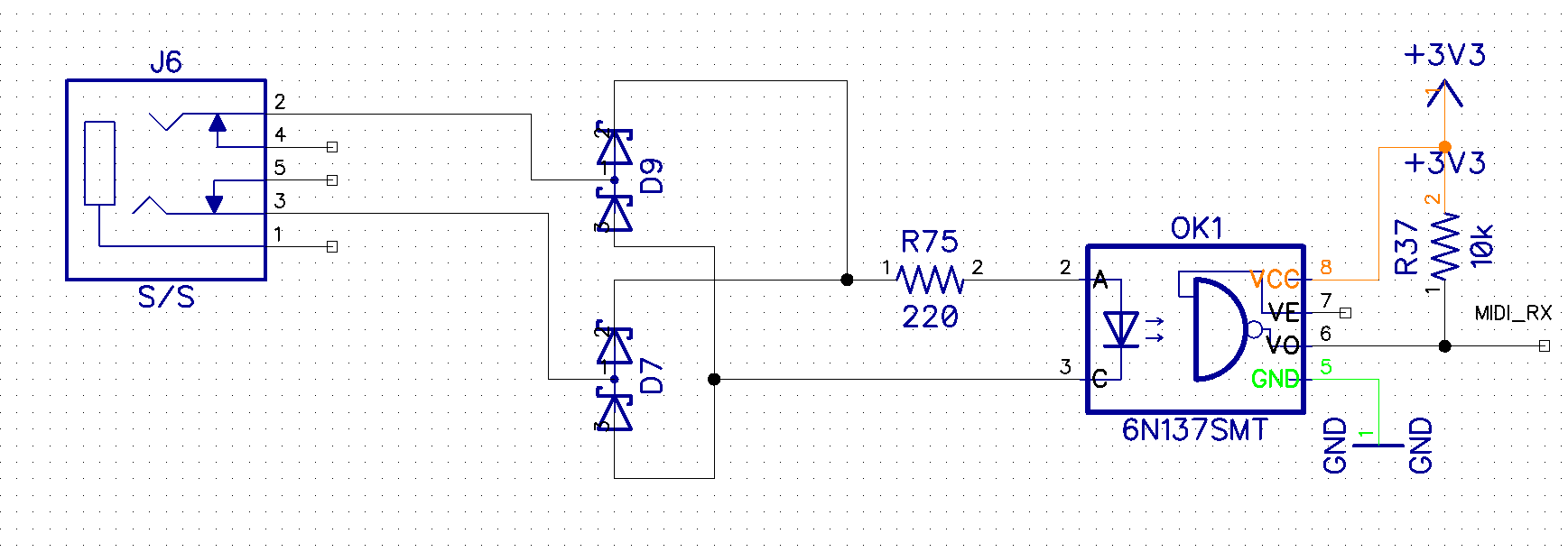

Alexander Neo series effect pedals offer many control capabilities including a complete MIDI implementation. The Neo can store 16 patch memories, but only 4 can be accessed by a long hold on the bypass button. One limitation of their MIDI implementation on Alexander Neo pedals (also on some effect pedals from Meris, Disaster Area, Chase Bliss, Empress and others) comes from the small space available for the control jack. Instead of standard MIDI 5-pin DIN jacks, the control input is on a 1/4" TRS jack. Unlike the standardized MIDI TRS jack (which come in two flavors: Type A and Type B), some effect pedals implement 'voltage MIDI' which is easier to implement than standard MIDI, requires fewer expensive components, but this interface is less standardized. Voltage MIDI requires a special adapter like neoface to convert from standard MIDI (opto-isolated current loop signals) to the 3.3 volt unbalanced 'voltage MIDI' and from 'voltage MIDI' back to standard MIDI. Since Voltage MIDI is a low voltage unbalanced signal, and not opto-isolated, the length of cables carrying the signal are very limited. But in a situation like a pedal board this is not likely to cause any problems as long as the control cables are only a few inches long. - http://teachtonga.com/midibim/
- https://youtu.be/GY_wbnMoCz4
-
The technology for keyboards and synthesizers keeps advancing and is mature, while the technology for guitar and bass players has recently been exploding. Yet there seems to be a divide, so why should guitar players have all the fun? Custom Electronic division of midibim has produced neoface and neoface 2 to cross this divide. Now high technology pedals can be incorporated into keyboard players arsenal more easily, and guitar players can incorporate a wider variety of tools and more wireless options too.
-
I use these devices to incorporate high technology pedals into my performances on bass guitar and also on keytar, but who knows what other clever musicians might discover with these new tools?
-
Standard MIDI using 5 pin DIN connectors has been available for decades, but newer types of MIDI are coming along like TRS MIDI Type A and Type B, Voltage MIDI, and Bluetooth MIDI. midibim devices enable interconnections with the different physical characteristics possible.
-
I have produced these products and they are available now on eBay.
-
Once I retire from my duty as a SEIU Union Chief Steward and technician at the transit district (in a few months), I will begin production on my top secret project - an amplified speaker system specifically for keyboard players! Why should guitar players have all the fun?
