Watch the promo video on YoutubeMIDI Association Hall A Booth 10302Three Days of Educational Sessions about MIDIMap of The MIDI Association booth and MIDI Association Members Booths In The MIDI Showcase
MIDI Association NAMM Booth Events Thursday, January 23
MIDI Association Lifetime Achievement Awards 2025
Thursday, January 2311:00 AM-11:45 AM 45 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
The MIDI Association will present John Bowen, Karl Hirano, Tadao Kikumoto, Tetsuo Nishimoto, Chris Meyer, Jeff Rona and Brian Vincik with MIDI Association Lifetime Achievement awards for their contributions to MIDI from 1983 to 1990.
MIDI 2.0 Network (UDP) Transport Specification
Thursday, January 231:00 PM- 1:30 PM 30 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
The Network MIDI 2.0 (UDP) Transport Specification defines a way to connect home studios or performance venues via Ethernet and wireless LAN on a local area network using MIDI 1.0 and MIDI 2.0 UMP packets.
TamiX interviews Innovative Chinese MIDI Companies
Thursday, January 23 3:30 PM- 4:00 PM 30 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
Tang Nan (artist name TamiX) who runsMidifan, the largest Music Production website in China will interview Hotone, Medeli, MIDI Plus and Robkooabout the latest developments in MIDI technology in China.
The Music Accessibility Special Interest Group
Thursday, January 234:30 PM- 5:15 PM 45 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
The Special Interest Group on Music Accessibility allows artists, researchers, and others in the music production community to interact directly with MIDI Association companies and provides a forum for discussions surrounding music accessibility and MIDI.
Riverside City College MIDI Jam
Thursday, January 235:30 PM- 6:00 PM 30 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
Come see what this group of talented young music production students have been inspired to create with MIDI. Special thanks to Artiphon, Caedence, Jamstik, Playtime Engineering, Robkoo and others for their donations to the all-MIDI jam.
MIDI Association NAMM Booth Events Friday, January 24
Latest MIDI 2.0 Developments in Apple, Google, Linux and Microsoft Operating Systems
Friday, January 2410:30 AM- 11:00 AM 30 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
The MIDI Association and its members will provide updates on the latest developments in the major operating systems. If you are a developer of MIDI products, this is a presentation you won’t want to miss.
DAW Control Profile-Replacing Mackie control
Friday, January 24 11:30 AM- 12:00 PM 30 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
With MIDI 2.0 support already beginning to appear in Digital Audio Workstations, plugin developers are benefitting from the work being done by the MIDI Association member companies that develop those plugin formats – Apple (Audio Units), Avid (AAX), Bitwig (CLAP) and Steinberg (VST). The DAW Working Group is working on a DAW Control Profile which would supersede proprietary control protocols like Mackie Control and Logic control with a true industry standard for controlling DAWs via external hardware and software.
Plugin Formats Open Source Support for MIDI 2.0
Friday, January 241:30 PM- 2:00 PM 30 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
The MIDI Association member companies that develop plugin formats – Apple (Audio Units), Avid (AAX), Bitwig (CLAP) and Steinberg (VST) are working together to develop open-source software that will enable plugin developers to quickly and easily interface with external MIDI gear without the need for any in depth knowledge of MIDI 2.0 or MIDI-CI.
Build Your Own Audio and MIDI Plug-ins Using JUCE
Friday, January 24 1:00 PM- 1:30 PM 30 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
Senior JUCE developer Anthony Nicholls will show you how you can use JUCE to create your own, unique, audio and MIDI plug-ins that you can make available to other people.
MIDI 2.0 Piano Profile Progress Report
Friday, January 242:30 PM- 3:00 PM 30 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
At NAMM 2024, we showed off a working prototype of the MIDI 2.0 Piano Profile.
This year we focused on two other important parts of the Piano Profile- DAW Plugin support and implementation guidelines with accompanying Audio and MIDI files.
MIDI 2.0 Drum Profiles
Friday, January 243:30 PM- 4:00 PM 30 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
The MIDI Association has made significant progress this year in developing some Profiles focused on electronic drums and drum machines.
MIDI In Music Education and SAE Mexico
Friday, January 244:30 PM- 5:00 PM 30 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
SAE Mexico has been selected to begin work on The MIDI Association’s MIDI In Music Education curriculum by the NAMM Foundation.
They will provide the curriculum materials in both English and Spanish under a Creative Common license and have a unique relationship with Coursera, the massive open online course provider.
Digitaize – Transforming strings with the power of MIDI
Anaheim Convention Center | Front of Hall A | The MIDI Association Booth 10302 800 W Katella Ave, Anaheim, CA, United States
Digitaize takes a completely new approach to augmenting acoustic instruments. This innovative technology uses a unique sensor system to acquire real-time playing data from musical instruments. In this demonstration, the Digitaize Module uses software instruments from Spectrasonics, Moog, and Audio Modeling, a hardware from CME and Roland to showcase its versatility.
MIDI Association NAMM Booth Events Saturday, January 25
MIDI Association Open Meeting
Saturday, January 2510:00 AM- 10:45 AM 45 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
Please join us as we introduce the new MIDI Association Executive and Technical Standards Boards, review the previous year’s progress and take a look at what we want to accomplish in 2025.
MIDI Innovation Awards 2024
Saturday, January 2511:00 AM- 11:30 AM 30 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
Join Jean Baptiste Thibeaut from Music Hackspace and Martin Keary (host of the 2024 MIDI Innovation Awards Show) as they introduce the winners of the 2024 MIDI Innovation Awards.
Innovators Meetup with Rock Paper Scissors
Saturday, January 2511:30 am – 12:15 pm AM 30 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
Meet all the musical instrument, software and app innovators at NAMM! Everyone gets the mic in this networking session. Give your 30-second introduction, connect faces to names around the room, then break to network one on one. Leave with connections to collaborators, customers, allies, and friends.
Riverside City College MIDI Jam II
Saturday, January 254:30 PM- 5:00 PM 30 minutes (America/Los_Angeles)
MIDI Association Booth 10302 (Hall A)
In-Person Only
Come see what this group of talented young music production students have been inspired to create with MIDI.
Special thanks to Artiphon, Caedence, Jamstik, Playtime Engineering, Robkoo and others for their donations to the all-MIDI jam.
The ethics of AI music became a heated topic at industry panels in 2024, sparking debates around the notion of “fair use”. AI music tech companies have admitted to training their models on copyright protected music, without a license or consent from rights holders in the RIAA.
Over ten thousand major figures from the industry, including Thom Yorke of Radiohead, signed a shared statement near the end of the year, expressing their belief that “unlicensed use of creative works for training generative AI is a major, unjust threat to the livelihoods of the people behind those works, and must not be permitted.”
During September 2024, Billboard broke a story about Michael Smith, a man accused of $10M in wire fraud. He published large quantities of algorithmically generated music and used bot farms to stream that audio to turn a profit. Billboard’s story stoked concerns that instant song generation will pollute DSPs and siphon revenue away from “real” artists and labels.
There has been little to no discussion of AI MIDI generation software or its ethical implications. Instant song generators appeal to a substantially larger market size and pose a more direct threat to DSPs. MIDI tools are generally considered too niche for a non-technical audience.
The ethical advantages of AI MIDI generation
There are several ethical advantages to generating MIDI files instead of raw audio.
First, MIDI’s small file size conserves energy during training, generation, and file storage. That means that it’s not only cheaper to operate, but may have a lower environmental impact.
Second, independent artists are partnering with AI MIDI companies to create fine-tuned models that replicate their style, and selling access to those models as a vector for passive income.
AI audio models are fine tuned with artists as well, but the major AI song generation companies are scraping audio from the internet or licensing stock music in bulk. They don’t partner with artists on fine-tunes, which means labels and rights holders will make the most money.
In this article, I’ll review a couple big AI music ethics stories from 2024 and celebrate a few MIDI generation companies that have been working hard to set up fair deals with artists.
RIAA: Narrowing AI music ethics to licensing and copyright
Debates over the ethics of AI music reached a boiling point in June 2024, in a historic lawsuit by the RIAA against Suno and Udio. Both companies scraped copyright-protected music from the internet and used that audio to train their own commercial AI song generators.
Suno andUdio currently grant their users unlimited commercial license for audio created on their platform. This means vocalists can create albums without musicians and producers. Media creatives can add music to their productions without sync licensing fees.
Labels are predictably upset by Suno and Udio’s commercial license clause, which they feel competes directly with their own sync libraries and threatens to erode their bottom line.
To be clear, it’s not that the music industry wants to put a stop to generative AI music. On the contrary, they want to train AI models on their own music and create a new revenue source.
UMG struck up a partnership with AI music generator Klay, announced October 2024. If Klay can compete with Suno and Udio, it will likely be regarded as the “ethical alternative” and set a standard for other major labels to follow.
Fairly Trained: A system of accountability for data licensing
The non-profit organizationFairly Trained and their founder Ed Newton Rex have put a spotlight on AI audio model training and the need for better licensing standards. They offer an affordable certification for audio companies that want to signal compliance with industry expectations.
Watch the discussion below to learn more about Fairly Trained:
https://www.youtube.com/watch?v=MDFxWfnP42U>
AI MIDI companies with Fairly Trained certifications
At least two AI MIDI companies have been certified Fairly Trained:
Lemonaide Music is a state of the art AI MIDI and audio generation plugin. They partner with music producers to fine tune models on their MIDI stems. When users purchase a model from the app store, artists receive a 40% revenue share. In early November 2024, Lemonaide announced a new partnership with Spawn, bringing advanced sound design and color field visualization to the MIDI generation experience.
Soundful Music is a B2C music generation service that includes MIDI stems as part of their core product. They hire musicians to create sound templates and render variations of that content from a cloud service. Soundful is a web browser application.
Both of these companies have proven that they sourced their training data responsibly.
The environmental cost of AI music generation
I spoke to several machine learning experts who agreed that MIDI training, generation and storage should consume less energy than raw audio generation, by virtue of the file size alone.
There is no public data on energy consumption at top AI audio generation companies. What we do have are reports on the data centers where those operations are held. Journalists like Karen Hao have ramped up coverage of the data centers housing our generative model operations and demonstrated the impact they’re having on vulnerable populations.
Economists have suggested that the US will benefit from domestic energy production. They encourage the construction of miniature nuclear plants and data centers.
Big tech companies do have sustainability initiatives, but they focus primarily on carbon emission reduction. The depletion of freshwater resources has received less attention from the media, appears to be less tightly regulated, and may end up being the most important issue.
🚫 In May 2024, Microsoft’senvironmental sustainability report confirmed that they failed to replenish the water consumed by datacenter operations. Their AI services led to a 34% increase in water consumption against previous years.
Freshwater restoration efforts led to a 10% recovery of the 55,500 megaliters consumed. The 50k megaliter loss would be enough to fill 20,000 standard Olympic-size swimming pools.
🚫 Amazon Web Services (AWS) appears to be a major offender, but their water use is mostly private. They’ve made a commitment to become “water positive” by 2030, a distant goal post considering the growing rate of consumption.
According to UNESCO, 50% of the people on our planet suffer from extreme water scarcity for at least one month every year. Do we want our generative audio products contributing to that problem, when there might be a better alternative?
How DataMind reduced the impact of their AI music app
Professor Ben Cantil, founder ofDataMind Audio, is the perfect example of a founder who prioritized ethics during model training.
DataMind partners directly with artists to train fine-tuned models on their style. He offers a generous 50% revenue share and credits them directly on the company’s website.
Their brick and mortar headquarters are powered by solar energy. They formerly completed a government sponsored study that reduced the local GPU energy footprint by 40% over a two month period. Cantil has made a public commitment to use green GPU centers whenever they outsource model training.
His main product is a tone morphing plugin called The Combobulator. Watch a demo of the plugin below to see how it works:
Exploring AI MIDI software further
We’ve already covered some of the Fairly Trained AI MIDI generation companies. Outside that camp, you can also check out HookTheory’s state of the art AI MIDI generation feature Aria.
The AI MIDI startup Samplab has also released several free browser tools in 2024, though they specialize in audio to MIDI rather than generative music.
Delphos Music is a B2B AI MIDI modeling service that gives musicians the power to fine-tune MIDI models on their own audio stems. Their service is currently high touch and operated through a web browser, but they do have a DAW plugin in beta.
Staccato is building an AI MIDI browser app that can analyze and expand on MIDI content. I’ve also seen a private demo from the AI text-to-MIDI generation startup Muse that looked very promising.
Bookmark our AI MIDI generator article to follow along. We update the list a few times a year and keep it up to date.
ADC is a non-profit event, dedicated to the audio community, focused on learning, facilitating networking and positive working relationships, sharing best practice, and promoting equality, diversity and inclusion across all that we do.
Audio Developers Conference
Tickets to ADC24
Tickets to ADC24 are available for both in person and virtual attendance and range in price with discounts for Academics and Students. Click the button below to see all the options.
MIDI Association Companies Sponsor The Audio Developers Conference 2024
For many years now The MIDI Association has been a community sponsor of the Audio Developers Conference.
At ADC24, MIDI Association members Juce and Focusrite are Gold Sponsors of the conference. Arturia, Avid, Muse Group and Roland are Silver Sponsors and Steinberg is a Bronze sponsor.
MIDI Association Companies Presentations At Audio Developers Conference
MIDI Association companies are giving a number of presentations at ADC24.
The MIDI Association is actually underwriting support for the Workshop: Inclusive Design within Audio Products.
This workshop which is being run by Jay Pocknell of the Royal Institute for the Blind highlights the work being done to make music music more accessible to everyone and features the work of many of the people in the MIDI Association’s Music Accessibility Special Interest Group.
Workshop: Inclusive Design within Audio Products
What, Why, How?
14:00 – 17:00 UTC | Monday 11th November 2024 | Empire
Following the success of last year’s ‘An Introduction to Inclusive Design of Audio Products’, we are delighted to be presenting a follow up this year. The session will promote the work happening across the audio industry to support accessibility and inclusive design. We will focus on providing practical design principles for attendees to take away, backed up by engaging lived experience insights and demonstrations.
In particular, we will showcase the practices of two companies who have been making big waves within accessible music in the last year: Ableton and Arcana Instruments. Jay Pocknell and Tim Yates will be exploring how these companies involved the disabled musician community throughout the design of their products, as well as sharing accessibility top tips for attendees to take away, along with insights from musicians Elizabeth J. Birch and Andre Louis.
Why is this important?
As the audio industry seeks to improve diversity within its workforce, and the music industry seeks to widen the diversity of artists creating music, it is essential that inclusion becomes woven into the design of the tools available.
Overview of the social model of disability. 10 mins.
Why design inclusively? The importance of accessibility in mainstream audio technology. 10 mins.
Inclusive design principles and best practice guidelines for music-making and audio products, including examples from products already on the market. 40 mins.
[Break. 10 mins.]
Call to action. How to learn more, further resources to explore. 5 mins.
Case study – Developing with the community: what Ableton have learnt since investing in accessibility and connecting with their user community during the development of Live 12, Note, and Move. Andre Louis will also demonstrate the accessibility features of Ableton Move. 30 mins.
Case study – From the ground up: how Arcana built a company around inclusive design and developed their first instrument, the Arcana Strum, for all. 30 mins.
Panel Q&A. All panellists. 30 mins.
Beyond ValueTrees
(Confessions of a ValueTree Skeptic)
15:40 – 16:00 UTC | Monday 11th November 2024 | Bristol 2
Presenter:Brett g Porter Lead Software Engineer Artiphon and Executive Board of The MIDI Association
The JUCE website says “The ValueTree class is JUCE’s secret weapon,” and it’s true. They give you:
A really easy way to capture and pass around the entire state of your application’s data at run time
A rich mechanism to watch that data at a fine degree of granularity
Trivially easy persistence of application state
…but at the cost (in comparison to using native POD or class/struct variables) of being:
slower
less convenient to use
less type-safe, since all values are stored in the JUCE var variant type.
This talk will explore the new Cello library to abstract away the underlying API calls in favor of syntax that’s more like working with POD data. The original goal was to be able to write code something like the below, but using ValueTrees as the backing data store:
Roland’s Holistic Approach to AI for Music Creation
12:20 – 12:50 UTC | Tuesday 12th November 2024 | Bristol 3
Presenter:Paul McCabeSVP Research & Innovation Roland Future Design Lab
Presenter:Ichiro YazawaAdvanced R&D Group Leader Roland Future Design Lab
Presenter:Kazuyoshi SasamoriAI Product Manager Roland Future Design Lab
This presentation introduces Roland’s approach to AI for music creation and will include a technical demonstration of a new AI-powered application. Roland will also overview its holistic strategy for AI which considers R&D, policy, and governance mechanisms. As a general-purpose disruptive technology, Artificial Intelligence is in the process of impacting virtually every aspect of life, including creativity. As a leading music technology innovator, Roland is highly optimistic about the potential of AI to enhance and empower human music making but is deeply aware of the need to innovate responsibly.
Expanding SDKs and APIs in Pro Tools
12:20 – 12:50 UTC | Tuesday 12th November 2024 | Bristol 1
Dave TylerSenior Manager, Development Partner Program Avid
In this session, we will discuss how SDKs will play an important part in the future of Pro Tools to enable the integration of partner technologies and workflow solutions.
Introducing ni-midi2
A Modern C++ Library Implementing MIDI2 UMP 1.1 and MIDI CI 1.2
14:00 – 14:50 UTC | Tuesday 12th November 2024 | Bristol 1
Franz Detro – Member of the MIDI Association Technical Standards Board and contributor to MIDI 2.0 and USB Audio/MIDI Device Class specifications. Co-founder of midi2.dev – a collaboration platform for MIDI 2.0 developer resources.
MIDI 2.0 implementations arrived in recent macOS and Linux versions, and Windows MIDI 2.0 support is expected to arrive end of 2024.
ni-midi2 is a modern C++ library implementing MIDI2 UMP 1.1 and MIDI-CI 1.2. The platform-independent library allows you to easily migrate your code to support MIDI 2, while maintaining compatibility to the traditional MIDI 1 protocol.
The talk will cover basic concepts of the library and real-world examples of how it helps you to achieve protocol-agnostic MIDI 2 support in your codebase.
Sponsor Talk from Focusrite
12:20 – 12:50 UTC | Wednesday 13th November 2024 | Bristol 2
TBD
Going Deeper with CLAP
12:20 – 12:50 UTC | Wednesday 13th November 2024 | Bristol 3
Alexandre Bique of Bitwig and Urs Heckmann of u-he join the stage to present updates on CLAP (CLever Audio Plugin API). A lot has happened since CLAP was presented at ADC 23. Alexandre and Urs will briefly focus on industry adoption and give an overview of latest extensions, roadmap and goals. Then they’ll be digging deeper by showing example implementations of some of CLAPs core features, such as Polyphonic Parameter Modulation and Voice Info.
An Efficient, Open-Source C++ Loop Classifier and Tempo Estimator
The Algorithm Behind Audacity’s Brand New Tempo Detection Feature
15:00 – 15:50 Wednesday 13th November 2024 UTC
Matthieu HodgkinsonSenior Software Developer Muse Group
An efficient, offline C++ algorithm for loop classification and tempo estimation is presented, alongside its evaluation framework. The framework provides the area under the ROC curve (AUC) of the classifier, facilitating regression-free development and tuning of the algorithm. The AUC is now 0.93 when evaluated against the set of files (publicly available on freesound.org under the Creative Commons license) listed in the framework’s source code. By providing computation time measurement, the framework has also been useful for optimizing the algorithm, which is now typically over 2500 times faster than real-time (measurement made on a Windows laptop with a 12th Gen Intel Core i7-12800HX processor and 32 GB of RAM). Furthermore, the framework can be used to set the target false positive rate according to the requirements of your application. Algorithm and evaluation framework are open source, and care has been taken to keep the algorithm easily reusable.
The algorithm can be seen as a “classical” algorithm and reuses ideas described elsewhere in the literature. However, the idea behind the classifier is original. A set of loosely plausible numbers of tatums (or ticks) fitting in the duration of the provided audio file is taken. The likelihood of each tatum count hypothesis is evaluated by measuring the distance of each onset to its closest tatum and using the onset’s strength in the weighted average of all distances. The average is then compared to a threshold, and, if below, a disambiguation step is carried out, where the number of tatums is reused to determine the most likely tempo (BPM) and time signature.
As implied above, the input audio must be a loop for its tempo to be detected. This limitation was not deemed critical for the application the algorithm was intended for. On the other hand, it opened possibilities to improve the discriminant factor of the classifier, allowing a higher success rate while keeping the false positive rate low. This choice may explain the originality of the approach despite its simplicity.
As you can see the Audio Developers Conference and The MIDI Association have a close and copacetic relationship because many of our corporate members are supporters and sponsors of the Audio Developers Conference.
If you are at ADC24, please keep your eye out for these presentations and come up and say hello to the many MIDI Association members who will be there.
Just set your browser to always translate Japanese, click on the Tokyo Gakki Expo link above and you can surf the site and see all the cool events that were held, but here is a sampling (pun intended!).
MIDI 2.0 Seminar
This is a MIDI 2.0 seminar held by the Association of Musical Electronics Industry (AMEI). The latest MIDI 2.0 compatible devices will be operated and their functions will be demonstrated. Some unreleased driver information will also be made public. This is a great opportunity to learn about the future of MIDI.
JSPA members’ top pick! Highlights of Tokyo Musical Instrument Expo 2024!
We will introduce the booths that JSPA members are personally looking forward to and paying attention to at this year’s Tokyo Musical Instrument Expo! If you check this out, you will definitely be an information expert at this year’s Tokyo Musical Instrument Expo! There will also be an announcement about the concept of this year’s event by the creator of the “unofficial” song for Tokyo Musical Instrument Expo 2024!
Following on from last year, the three major synthesizer brands, Korg, Roland, and Yamaha, will be holding the “Synthesizer Battle Royale 2024.” Don’t miss the battle between the cutting-edge synthesizer sounds and specs of the most talented keyboardists representing each company.
Let’s experience the mechanism and performance of an analog synthesizer using KORG’s monotron DUO! You can also touch modular synthesizers and rhythm machines! Calling all future music producers!
Target audience: 3rd grade elementary school students to 3rd grade junior high school students. Cast:Masaaki Enatsu
Cute gadget experiment time
Using cute battery-powered gadgets, we will experiment with making sounds and sampling! We will create simple music using sounds recorded in mono with a mini plug. What will the sound produced by the JSPA director’s collaborative experiment be?!
Cast: Miki Nomiyama Mion Tsuruta
Yamaha MONTAGE M Synth 50th Anniversary Special Demo by Katsunori Ujiie
Talk and demonstration by Katsunori Ujiie of the MONTAGE M special sound to celebrate the 50th anniversary of Yamaha synthesizers. Look forward to famous songs by famous artists and sounds of rare synthesizers.
A new era for Arturia’s new stage keyboard. Kurumi Fujioka plays and Nicolas Woolley explains AstroLab. Witness the many new features of AstroLab!
There were a lot of MIDI Association companies participating in the event (not just Japanese companies) including Ableton, Arturia, Hammond, Korg, Melbourne Instruments, Mellotron, Oberheim, Roland, Sequential, Spectrasonics, Udo and Yamaha.
Synthogy has released Ivory 3 American Concert D, the 2nd virtual piano for its Ivory 3 platform. Ivory 3 American Concert D features their legendary recordings of a vintage New York Steinway D Concert Grand, now fully realized through the power of the Ivory 3 engine.
This 1951 New York Steinway D (CD 121) was handpicked by Steinway & Sons Concert & Artist department for artist promotion. The instrument has received praise over the years from some of the world’s greatest concert artists, with the signatures of masters like Glenn Gould and Rudolph Serkin gracing its plate.
Powered by Ivory 3’s RGB engine, the Continuous Velocity feature provides smooth, seamless velocity-to-timbre on every piano strike. This technology, unique to Synthogy, behaves like modeling yet maintains the complex, rich and realistic sound of real-world instruments. It is the foundation of a new generation of expressive capabilities in Ivory 3.
The Ivory 3 American Concert D instrument also features 4 stereo microphone positions. Multiple close and ambient choices are instantly available for detailed presence and depth of field. The on-board Ivory 3 mixer enables fine levels of control over the sound.
In addition, the Ivory 3 engine is MIDI 2.0 ready for support of MIDI 2.0 high resolution velocity. 65,536 velocity-to-timbre levels are manifested by the RGB engine, opening the door to new possibilities of musical expression with myriad degrees of tone color.
Ivory 3 American Concert D is available now for Windows and Mac, as a digital download purchase direct from Synthogy’s on-line web store, or from any of its authorized resellers.
Upgrades are available for Ivory II American Concert D owners.
Ivory 3 American Concert D MSRP $249 USD Ivory 3 American Concert D Upgrade (from Ivory II American Concert D) MSRP $139 USD
Pete Brown is both the MIDI Association Exec Board Chair and a Principal Software Engineer in the Windows Developer Platform team at Microsoft. He focuses on client-side dev on Windows, apps and technology for musicians, music app developers, and music hardware developers, and the Windows developer community.
For musicians, there are two key enabling technologies for making music – MIDI and Audio. Microsoft announced updates to both are coming soon to Windows.
Microsoft announced updates to both MIDI and Audio at the Qualcomm Snapdragon Summit 2024.
What did we announce today for musicians and other audio professionals?
Musician Software coming to Arm64 Steinberg Cubase and Nuendo in preview this week Cockos Reaper in preview today Reason Studios Reason in preview in early 2025
Audio Hardware coming to Arm64 Vendor-specific USB Audio / ASIO driver preview from Focusrite early in 2025 Vendor-specific USB Audio / ASIO driver preview from Steinberg/Yamaha in 2025
In-Box Support coming to Arm64 ASIO and low-latency USB Audio Class 2 driver previews mid 2025, in-box in Windows when complete MIDI 2.0 (Windows MIDI Services) previews in Windows Insider builds this November, in-box in retail Windows early next year.
From my own use and from working with others in the music industry, I know we need to have support for two major features on Windows for musicians to have a great experience:
Better APIs which support MIDI, including MIDI 2.0, with backwards compatibility with MIDI 1.0 APIs and devices. Our older MIDI stack hasn’t kept up with current needs, and needed replacing so that we can grow and innovate.
Full support for low-latency, high-channel-count audio, using standards already accepted by the industry
Pete Brown-Microsoft
Windows MIDI Services: The New Windows MIDI Stack
Windows MIDI Services supports MIDI 1.0 as well as the MIDI 2.0 Universal MIDI Packet (UMP) standard. Together this provides compatibility with existing MIDI devices as well as the new MIDI 2.0 devices already in-market or coming soon (I have several MIDI 2.0 devices here in my studio).

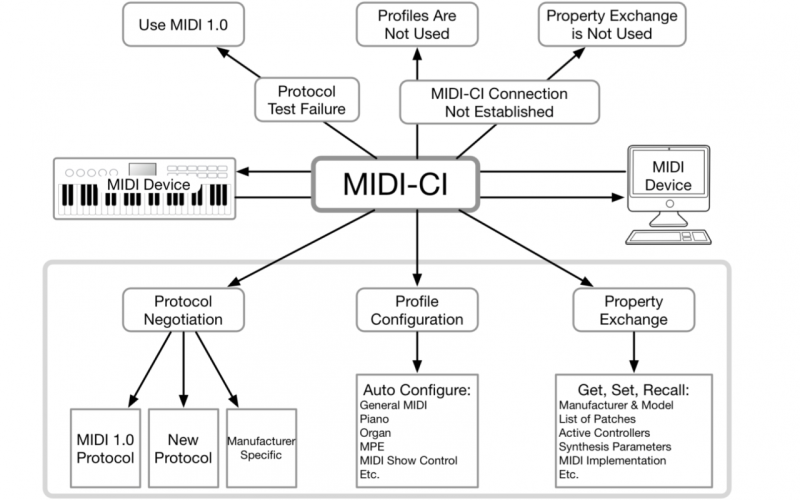

MIDI CI, which bridges the gap between MIDI 1.0 and MIDI 2.0 UMP, is supported through normal SysEx support, and we recommend the use of open source cross-platform libraries which help with creating and parsing those messages.
Pete Brown-Microsoft
Backwards compatibility with the WinMM MIDI 1.0 API
The Association of Musical Electronics Industries (AMEI), the organization that oversees the MIDI specification in Japan, committed to funding the development of an open-source USB MIDI 2.0 Host Driver for Windows Operating Systems under a memorandum of understanding between AMEI, AmeNote Inc, and Microsoft.
AMEI is underwriting the cost and has engaged AmeNote Inc. to develop the driver because of AmeNote’s extensive experience in MIDI 2.0 and USB development. In addition, concurrent to this, Microsoft has also agreed to start development of a Windows standard open-source MIDI 2.0 API.
The driver and API will be developed in accordance with Microsoft’s quality control standards, and will be managed as a permissively licensed (MIT license) Microsoft open-source project. As a result, anyone can participate in the development as an open-source contributor in the future, or use the code in their own devices or operating systems. Because of this open source arrangement, continuous and timely improvements and enhancements to the USB MIDI 2.0 Host driver and MIDI 2.0 API are expected.
Here is a list of the AMEI companies supporting this work.
l AlphaTheta Corporation
l INTERNET Co., Ltd.
l Kawai Musical Instruments Manufacturing Co., Ltd.
l CRYPTON FUTURE MEDIA, INC.
l CRIMSON TECHNOLOGY, Inc.
l KORG INC.
l Educational Corporation Shobi Gakuen
l SyncPower Corporation
l ZOOM CORPORATION
l -SUZUKI MUSICAL INST. MFG. CO.,LTD.
l TEAC CORPORATION
l Yamaha Corporation
l Yamaha Music Entertainment Holdings, Inc.
l Roland Corporation
l Analog Devices, K.K.
For the full blog from Pete on the New Windows MIDI Stack, please click on the link below.
We’ve recently kicked off a project with Qualcomm and Yamaha to create a brand new USB Audio Class 2 Driver in Windows, with both WaveRT (our internal audio) and ASIO interfaces, following the latest standards for Windows driver development using the ACX framework.
The new driver will support the devices that our current USB Audio Class 2 driver supports, but will increase support for high-IO-count interfaces with an option for low-latency for musician scenarios.
It will have an ASIO interface so all the existing DAWs on Windows can use it, and it will support the interface being used by Windows and the DAW application at the same time, like a few ASIO drivers do today. And, of course, it will handle power management events on the new CPUs.
This driver will work with USB Audio Class 2 devices, so you can plug in your device, and get right to making music.
Finally, we’ll make the class driver source available to others on GitHub, just like we have with MIDI, so that any company creating their own USB Audio Class 2 drivers will be able to learn from how we handled events and also give us suggestions for how we could do better. It’s a two-way conversation.
Pete Brown-Microsoft
Announcing: Hardware-optimized USB Audio drivers on Arm64
Our new in-box driver needs to work well for all compliant USB Audio Class 2 devices. But some hardware developers are expert driver authors, and for years have known that if they write their own optimized drivers for their USB Audio Interfaces, even on other platforms with built-in drivers and low-latency APIs, they can achieve even better round-trip latency at the same levels of stability. Every millisecond counts!
Pete Brown-Microsoft
Focusrite – Native on Arm64
“Focusrite is targeting releasing native Arm64 drivers for all of its supported USB audio interface products in early 2025, bringing compatibility with all ASIO and non-ASIO applications running on the platform.”
Tim Carroll, CEO Focusrite Group
CEO Focusrite Group, President of The MIDI Association
Yamaha – Native on Arm64
Yamaha creates the Steinberg-branded USB audio interfaces, which are fantastic performers on Windows and loved by their customers. In addition to working on the in-box class driver for Arm64, they are going to release optimized device-family versions of their audio interface drivers for Windows on Arm, giving users of their devices the best of both worlds. We’re excited to see these drivers coming out for Arm64 in 2025!
Pete Brown- Microsoft
Announcing: New Musician-focused apps coming to Arm64
With the new MIDI stack and in-box ASIO, these three killer DAW apps, and two families of audio interfaces with optimized drivers for Arm64, we’re set up to help make the experience of creating music amazing on Windows. I am beyond excited for so many of these efforts to come together at this point in time. A huge thanks to all our hardware and software partners who have stepped up to help musicians and other audio creators on Windows.
Pete Brown-Microsoft
Cubase x Snapdragon: Redefining mobile music production
For the full blog from Pete on Make Great Music with Windows on Arm, please click on the link below.
At the MIDI Forum, there were a number of technology presentations and one of the most fascinating was from Robin Zhang about the open source software he developed called Digishow.
Robin runs a creators’ collective in a beautiful old building that used to be the home of the Lester School and Technical Institute. They get diverse people from different backgrounds (musicians, lighting, artists, designers) to work together and create unique pieces of art using Digishow.
DigiShow is a lightweight control software designed for live performances and immersive show spaces with music, lights, displays, robots and interactive installations. It serves as an easy-to-use console for signal controlling, also enables signal mapping between MIDI, DMX, OSC, ArtNet, Modbus, Arduino, Philips Hue and more digital interfaces.
With using DigiShow LINK app, there are some scenarios assumed:
Producers: For live music or theatre performances, DJ or producers can arrange show lighting cues and stage automations on MIDI tracks alongside the music tracks in Ableton Live or other DAW. At the show, press the button on the Launchpad, the music loop and lighting effects will be instantly played in sync.
Ableton Live with tracks programmed for Digishow
Picture of magnetic and MIDI demo with lightshow
Performers: When playing MIDI instruments like drums or keyboards, DigiShow can trigger dynamic lighting changes and even robotic movements by MIDI notes following the beat or the music. Sensors can also be added to acoustic or DIY instruments to automatically generate MIDI notes.
Artists and Designer: For building interactive art installations, the creators often need to make software that works with the hardware. DigiShow provides OSC, ArtNet, WebSocket pipes for inter-application communication. Designers can create their interactive content in some creative software like TouchDesigner, Unity 3D, P5.js and access the hardware easily through DigiShow. Developers can also program using Python or JavaScript to connect DigiShow and extend interaction logic.
Storefront Display programmed by Digishow and simulated in Touch Designer
Makers and Hobbyists: DigiShow is for all show makers as well as hobbyists with little professional skills. Make digital shows for your own party time, or just make your house into a mini ‘disneyland’.
With the help of Geoffery Ge from Medeli and Yitian Zhao from CME Pro, Music China arranged for a MIDI Forum with experts from all over the world. The setup was actually quite amazing. There was a very nice AV setup, but most impressive was the simultaneous translation.
When MIDI Association members were speaking English, Chinese people were provided translations into Chinese and when Chinese MIDI Association members spoke Chinese, the English speakers were provided English translations. This was not just for the panel participants, but for the entire audience which consisted of over a 100 people. Even Miura-san from AMEI had translation as Music China had arranged for a brand ambassador from Shanghai Conservatory of Music who spoke fluent Japanese. It was impressive and really underscored that MIDI is the universal digital language of music. People on the panels spoke different languages, but they all spoke MIDI!
Future Music Technology and International MIDI Technology Development Forum. Forum time 14:00-17:00 p.m., October 12, 2024
Organizer China Musical Instrument Association, Shanghai Intex Exhibition and Convention Center Co., Ltd.
Facilitator Future Music Technology Committee of China Musical Instrument Association and Sound and Music Technical Committee of China Electronic Audio Industry Association
Co-Facilitator The MIDI Association
Shanghai Pudong New Area Advanced Audio and Video Technology Association
Forum content:
Panel Discussion: Progress in the Global Application of MIDI 2.0 Technology
Zhao Yitian, The founder and CEO of CME, Member of the Executive Board of the MIDI Association
Guests:
1) Athan Billias- Member of the Executive Board of the MIDI Association.
2) Daisuke Miura-Chairman of the MIDI Standards Committee of the Japan AMEI Association
3) Mike Kent-Chairman, MIDI 2.0 Working Group, Chief Strategy Officer, AmeNote Inc.
4) Joe Zhang-Director of R&D Technology of Medeli Electronics (Shanghai) Co., Ltd. and Member of the Technical Standard Board of the MIDI Association
First, Athan Billias, MIDI Association board member explained some basics about The MIDI Association.
Daisuke Miura from AMEI, the Japanese MIDI organization explained about AMEI’s role in the world of MIDI.
Then Mike Kent (Exec Board member and chair of the MIDI 2.0 Working Group) explained the current state of the technical specifications with an emphasis on the new Windows MIDI 2.0 open source driver that his company is developing with the support of AMEI.
After Mike, it was Joe Zhang from Medeli’s turn to explain the state of MIDI 2.0.
Joe is on the Technical Standards Board of The MIDI Association and gets up at 3 am in the morning to attend this meeting every 2 weeks. With members in Europe, the United States, Australia and China, there is no perfect (or even good) time to schedule a meeting for everyone. But Joe has been getting up at 3 am for 6 years now so maybe it is time to shift and pick a time that’s more convenient for him.
2.Keynote Speech: Review and Prospect – The Convergence of Music Technology
Guest: Yu Yang- Dean and Professor, Department of Music Engineering, Shanghai Conservatory of Music, Doctoral supervisor and famous composer
3.Dialogue between two people: Will Artificial Intelligence Destroy Everything?
Guests:
1) TamiX Tang Nan- Buchla modular synthesizer artist, visual artist, and the founder of Midifan.com
2) L+R Wang Lu- Sound artist, electronic music producer, arranger, sound interaction producer, independent radioanchor
4.Keynote Speech: Automatic Music Transcription: A Bridge to the Symbolic Representation of Music in the Future
Guest: Wu Yulun- Ph.D., School of Computer Science and Technology, Fudan University
5.Keynote Speech: Jam with Things: Music Geeks’ Improvisational InstrumentModification
Guest:Robin Zhang
Founder of Digishow – digital performing arts open-source project
We are going to do a separate article on Digishow and Robin because we got a chance to visit him on Sunday night at what was once the Lester Institute and were blown away by the creative things he and his team were doing.
6.Roundtable Discussion: Discussion on the development of future musical instruments and music technology in China
Ge Xinghua- General Manager of Deli Electronics (Shanghai) Co., Ltd
Guests:
1) Zhao Yitian- The founder and CEO of CME
2) Chen Guobin- Deputy General Manager of Ringway Electronics (Jiangsu) Co., Ltd.
3) Huang Jianheng,- Director of Longjoin Group, CTO, Co-founder of MIDIPLUS brand, CEO of MIDIPLUS
4) Zhang Guangzhong- Director of R&D Technology of Medeli Electronics (Shanghai) Co., Ltd.
5) Cao Qiang- Deputy General Manager and CTO of Changsha Hotone Electronic Technology Co., Ltd
We hope this gives you a bit of feel of how much there is going on in China with MIDI 2.0. There is a tremendous energy there. During the roundtable with the Chinese members, Joe Zhang said that China hadn’t been able to participate in MIDI 1.0’s development because the technical level in China wasn’t ready at the time. But he said that with MIDI 2.0, it was the time for Chinese companies to not just participate, but lead in MIDI 2.0 development.
Looking at the technical level of all our Chinese members and their openness to new ways of using tools like AI, it’s clear that Joe Zhang was right.
To see Music China’s coverage of Music X and the MIDI forum, click the link below.
The 10th Audio Developer Conference (ADC) returns in 2024 both in-person and online in a new city, Bristol, UK.
The in-person and online hybrid conference will take place 11-13 November 2024.
Talks at ADC range from audio research, to professional practices, to standards in audio development, as well talks about application areas and career development. Experimental projects are welcome.
Topics include, but are not limited, to:
Digital Signal Processing
Audio synthesis and analysis
Music technology, DAWs, audio plug-ins
Game audio
3D and VR/AR audio
Creative coding
Other applications of audio programming (e.g. telecommunications, multimedia, medicine, biology)
Design and evaluation of audio software and hardware systems
Programming languages used for audio development (e.g. C++, Rust, Python)
Software development tools, techniques, and processes
Performance, optimisation, and parallelisation
Audio development on mobile platforms
Embedded, Linux, and bare metal audio programming
Low-latency and real-time programming
Best practices in audio programming
Testing and QA
Educational approaches and tools for audio and DSP programming
Planning and navigating a career as an audio developer
Other relevant topics likely to be of interest to the ADC audience
The MIDI Association and ADC
The MIDI Association is a community sponsor of Audio Developers Conference and several MIDI Association companies are paid sponsors of the event.
ADC is run by PACE Anti-Piracy Inc., an industry leader in the development of robust protection products, and flexible licensing management solutions. PACE acquired JUCE a few years ago.
JUCE is the most widely used framework for audio application and plug-in development. It is an open source C++ codebase that can be used to create standalone software on Windows, macOS, Linux, iOS and Android, as well as VST, VST3, AU, AUv3, AAX and LV2 plug-ins.
Several MIDI Association companies are sponsors of Audio Developers Conference including Gold Sponsors Juce and Focusrite, Silver sponsor Avid, and Bronze sponsor Steinberg.
Franz Detro from Native Instruments will be doing a talk introducing ni-midi2, a modern C++ library implementing MIDI2 UMP 1.1 and MIDI CI 1.2 and also the open source software available on MIDI2.dev.
Franz is on The MIDI Association Technical Standards Board and an active participant in the MIDI 2.0 Working Group, the DAW working group which is working on open source software for how plugin formats including Apple Audio Units, Avid Audio Extension, Bitwig CLever Audio Plug-in, and Steinberg VST3.
He will be available at ADC to answer questions about MIDI 2.0 and The MIDI Association. The Interactive Audio Special Interest Group (Tom Poole from JUCE is on the IASIG steering committee) will hold an online meeting during ADC.
The MIDI Association will have both in person and on line representation at ADC and ADCx Gather.
The ADCx Gather one-day online event is free and open to everyone in the audio developer community (registration required). ADCx Gather is hosted in Gather.Town, a browser-based virtual online platform that allows attendees to interact and collaborate in real-time.
ADCx Gather takes place on the 1st of November starting at Noon UTC.
Registration for this event has not yet started. Sign-up for the ADC newsletter and be the first to know when ADCx Gather attendee registrations begin.
Tickets for ADC
There are different tickets available for ADC with in person tickets for corporate, individual, academic and also the same categories for online participation.
This is the third part in this series on how developers go about building a USB MIDI 2.0 Device. Please read Part 1 and Part 2 before reading Part 3.
In Part 2 we looked at handling Function Blocks and Group Terminal Blocks, UMP Discovery.
In this third guide we will cover:
Using a USB Descriptor Builder to avoid mistakes
Interfaces and Interface Association Descriptors in USB
Why having separate MIDI 1.0 mode may be useful
OS Caching and Firmware updates that affect your USB Descriptors
Using a USB Descriptor Builder to avoid mistakes
Creating correct USB Descriptors can be difficult to get right. Issues can occur such as
Incorrect lengths of descriptors
Difficulties when creating USB Endpoint with multi MIDI 1.0 Ports
Confusion between USB Endpoint In/Out to Embedded Out/IN to External In/Out Descriptors
IAD creation
To make this much easier, members of the MIDI Association and MIDI2.dev have created a MIDI USB Descriptor Builder. It allows you to create the Descriptors needed to create a MIDI 1.0/2.0 USB Device. Although the Descriptor Builder is catered to output descriptor for use with tinyUSB tusb_ump driver (https://github.com/midi2-dev/tusb_ump) or the Linux Gadget interface, the generated code should be easily adaptable to other USB stack implementations.
Parts 1 and 2 of this article include several examples of descriptors. Those examples are based on the default settings of the Descriptor Builder. The USB Descriptor sets many parameters and properties used by the device. It is also recommended that you consider the association of these parameters in relation to other UMP features, selecting values that are consistently formatted. In developing your USB device, be sure to reference the Property Names and Mapping article (https://midi.org/midi-2-0-device-design-property-names-and-mapping).
Interfaces and Interface Association Descriptors (IAD)
If a device supports both USB MIDI and USB Audio, the device should be configured as a Composite device with Audio Interfaces separated from MIDI Interfaces. This mechanism is particularly useful in devices which combine Audio Class version 2, 3, or 4 with a MIDI Class function. This is because the MIDI Class Function, defined as a subclass of Audio Class, has an Audio Control Interface.
An IAD is used to show the relationship between the Audio Interfaces, particularly to associate an Audio Control Interface with an Audio Streaming Interface(s).
A separate IAD is used to show the relationship between the Interfaces for the MIDI Function. This IAD associates a 2nd Audio Control Interface with a MIDI Streaming Interface.
USB Hosts may use the IADs to better determine which drivers will be used to support the device.
Two Alternate Settings: To Enable Backward Compatibility
The USB Device Class Definition for MIDI Devices, Version 2.0 defines how the use of 2 Alternate Settings on the Class Specific MIDI Streaming Interface provides the widest compatibility of Devices and Hosts.
Using this mechanism, a Device can operate as a MIDI 1.0 Device when necessary, but can switch to operating as a MIDI 2.0 Device on any Host which can support MIDI 2.0.
Alternate Setting 0 of the MIDI Streaming Interface is compliant with USB Device Class Specification for MIDI Devices Version 1.0.
Alternate Setting 1 of the MIDI Streaming Interface has descriptors for the MIDI 2.0 function.
The bcdMSC field in Alternate Setting 0 is set to 0x0100. (MIDI 1.0)
The bcdMSC field in Alternate Setting 1 is set to 0x0200. (MIDI 2.0)
USB MIDI Hosts which do not support USB MIDI 2.0 use the descriptors found on Alternate Setting 0 and install the Device as a MIDI 1.0 Device.
USB MIDI Hosts capable of supporting a USB MIDI 2.0 Device instead start by looking for an Alternate Setting 1 with bcdMSC set to 0x0200. If such an Alternate Setting is found in the device, the Host installs the Device as a MIDI 2.0 Device using those descriptors. If the Host does not find the Alternate Setting 1, then the Host will use the descriptors found on Alternate Setting 0 and install the Device as a MIDI 1.0 Device.
Why having separate MIDI 1.0 USB Only mode may be useful in some cases at this time
This may be done to be more compatible with and avoid unexpected behavior when used with some early beta versions of Host USB MIDI 2.0 drivers in 2023 and 2024.
Initial USB MIDI 2.0 Devices, such as the Native Instruments Komplete Kontrol MK3 and the Roland A-88 MK2, store 2 sets of USB Descriptors :
Legacy MIDI 1.0 only
USB MIDI 2.0 (with alt 0 = MIDI 1.0, alt 1 = MIDI 2.0)
The user decides which to enable on the device. On the A-88MK2 this is a button combination on start up, on the Kontrol it is a menu option (which causes a reboot).
It is expected that with a short timeframe this will not be a concern and this suggestion will change. Ultimately, all Devices should simply have a single mode of operation which has an Alternate Setting 0 for MIDI 1.0 and an Alternate Setting 1 for MIDI 2.0.
OS Caching and Firmware updates that affect your USB Descriptors
When Devices connect to a Host, an OS may cache the USB Descriptors. For example CoreMIDI uses caching to build a database of MIDI Devices and to handle reconnects.
A Host might not be able to recognize when a device makes these kinds of changes::
USB Descriptors including string name changes
Group Terminal Block updates
Switching between a USB MIDI 1.0 only mode and USB MIDI 2.0 mode
If the Host OS does not recognize that a change has occurred, the user may experience errors and unknown behaviors.
One method to avoid errors, the user needs to clear the cache and remove the prior device entry. However, this is not always possible and explaining the steps to users can be a challenge. This can be confusing and may still result in further technical support issues.
If the device can change the iSerial string value or the PID every time these notable configuration changes occur, then the OS will see a new device with a new set of features.
The End…
This set of articles would not have been possible without the input and support of the MIDI Association OSAPI Working Group members who provided much of the content.
Writing this series has helped me to clarify and organize my own understanding of USB MIDI. The MIDI Association intends to continue publishing these kinds of articles to support developers.
Thank you to everyone else who provided information, asked probing questions, and read this series.
MIDI 2.0 defines a number of device properties which are declared across 4 layers:
Standard MIDI 2.0 Messages
MIDI-CI Transactions
Property Exchange Resources
USB MIDI 2.0
A single device might declare values for any of these device properties in all 4 layers. This article and its tables show where there are properties in each layer which should have the same value as properties in other layers. Keeping these values the same across the 4 layers will help other devices, operating systems, and applications to recognize and display the device to the user in a predictable and consistent manner.
The properties in this table are generally used for product identification.
Property Name
UMP Message
UMP Message Field
MIDI-CI Message
MIDI-CI Message Field
PE Resource
Property
USB MIDI 2.0 Descriptor
USB MIDI 2.0 Descriptor Field
Vendor ID
Device Descriptor
idVendor
Product ID
idProduct
Interface Name
Standard MIDI Streaming Interface Descriptor
iInterface + Separate String Descriptor1
UMP Endpoint Name2
Endpoint Name Notification
UMP Endpoint Name
Standard MIDI Streaming Interface Descriptor
iInterface + Separate String Descriptor
Manufacturer Name
DeviceInfo
manufacturer
Device Descriptor
iManufacturer + Separate String Descriptor
Product Name
family + model
iProduct + Separate String Descriptor
Unique Identifier3
Product Instance Id Notification
Product Instance Id
Reply to Endpoint Message
Product Instance Id
serial
iSerialNumber + Separate String Descriptor
Manufacturer SysEx Id
Device Identity Notification
Manufacturer
Discovery and Reply to Discovery
Manufacturer
DeviceInfo
manufacturerId
Model Family Value
Model Family
Model Family
familyId
Model Number Value
Model Number
Model Number
modelId
Version Value
Version
Version
versionId
Note 1: The text string for iInterface should be very similar to or the same as UMP Endpoint Name if possible. But iInterface Name might need to include “MIDI” for identification purposes.
Note 2: If the device does not declare its UMP Endpoint name, then use the text string for iInterface from USB as a substitute. If the text string for iInterface has a “MIDI” suffix, the suffix should be removed when being presented as a UMP Endpoint.
If a USB MIDI 1.0 device is represented as a Virtual UMP device, then the text string for iInterface can be used as the virtual UMP Endpoint Name.
Note 3: MIDI 2.0 Product Instance Id Notification and USB iSerialNumber:
This property has high value for Operating Systems to track a device between power cycles or when connected to a different USB port. This also differentiates between multiple units of the same make/model device. It is sometimes difficult to add the actual serial number found on the product or box. This property is not required to match that serial number. For example, the value could be a random number generated at first powerup then written to memory. max 255 characters ASCII (recommend < 36 characters)
Table 2: Further Properties for Devices which have Dynamic Function Blocks
The properties in this table are generally used to describe device topology for devices which implement Dynamic Function Blocks.
See the M2-104-UM specification for 2 ways to design a device in the relationship between USB MIDI 2.0 Group Terminal Blocks and MIDI 2.0 Function Blocks (Dynamic Function Blocks or Static Function Blocks).
Property Name
UMP Message
UMP Message Field
MIDI-CI Message
MIDI-CI Message Field
PE Resource
Property
USB MIDI 2.0 Descriptor
USB MIDI 2.0 Descriptor Field
UMP Endpoint Block Configuration
Number of Group Terminal Blocks
Class-specific MS Data Endpoint Descriptor
bNumGrpTrmBlock1
Number of Function Blocks
Endpoint Info Notification
Number of Function Blocks
Protocols Supported
M2 and M1 bits
Group Terminal Block Protocol
Group Terminal Block Descriptor
bMIDIProtocol2
Current UMP Endpoint Protocol
Stream Configuration Notification
Protocol
Group Terminal Block Name
String Descriptor
iBlockItem + Separate String Descriptor3
For Each of One or More Function Blocks
Block Name
Function Block Name Notification
Function Block Name
Block ID
Function Blocks Info Notification
Function Block Number
Reply to Discovery
Function Block Number
Streaming Direction
Direction
Block Active
Function Block Active
Block Is MIDI 1.0
MIDI 1.0
First Group
First Group
Number of Groups Spanned
Number of Groups Spanned
Note 1: bNumGrpTrmBlock must be set to a single, bidirectional (bGrpTrmBlkType=0x00) Group Terminal Block starting at Group 1 (nGroupTrm=0x00) and containing 16 Groups (nNumGroupTRM=0x10)
Note 2: bMIDIProtocol should be set to 0x00 (unknown). Protocol is set by UMP Endpoint and Function Blocks.
Note 3: String for iBlockItem should be set to the same as UMP Endpoint Name and the string for iInterface.
Table 3: Further Properties for Devices which have Static Function Blocks
The properties in this table are generally used to describe device topology for devices which implement Static Function Blocks.
See the M2-104-UM specification for 2 ways to design a device in the relationship between USB MIDI 2.0 Group Terminal Blocks and MIDI 2.0 Function Blocks (Dynamic Function Blocks or Static Function Blocks).
Property Name
UMP Message
UMP Message Field
MIDI-CI Message
MIDI-CI Message Field
PE Resource
Property
USB MIDI 2.0 Descriptor
USB MIDI 2.0 Descriptor Field
UMP Endpoint Block Configuration
Number of Blocks
Endpoint Info Notification
Number of Function Blocks
Class-specific MS Data Endpoint Descriptor
bNumGrpTrmBlock
Protocols Supported
M2 and M1 bits
Current UMP Endpoint Protocol
Stream Configuration Notification
Protocol
Group Terminal Block Descriptor
bMIDIProtocol
For Each of One or More Blocks
Block Name
Function Block Name Notification
Function Block Name
Group Terminal Block Descriptor
iBlockItem + Separate String Descriptor
Block ID
Function Blocks Info Notification
Function Block Number
Reply to Discovery
Function Block Number
Group Terminal Block Descriptor
bGrpTrmBlkID
Streaming Direction
Direction
Group Terminal Block Descriptor
bGrpTrmBlkType
Block Active
Function Block Active
Block Is MIDI 1.0
MIDI 1.0
Group Terminal Block Descriptor
bMIDIProtocol
First Group
First Group
Group Terminal Block Descriptor
nGroupTrm
Number of Groups Spanned
Number of Groups Spanned
Group Terminal Block Descriptor
nNumGroupTrm
Also see these developer device design articles for building USB MIDI 2.0 devices:
The MIDI Association and AMEI continue to push MIDI 2.0 forward
Profiles are one of the most powerful mechanisms in MIDI 2.0 and in the past few months the MIDI Association has adopted 6 new Profile Specifications bringing the total number of adopted Profiles to 7.
We covered some of the basics of profiles in this article.
Click on the link above or image below to view that article.
The MIDI Association voted to adopt the first Profile in 2021 and then followed up with 6 Profiles specifications that were adopted around NAMM 2024:
M2-113-UM 1-0 Default Control Change Mapping Profile
M2-118-UM GM Function Block Profile
M2-119-UM GM Single Channel Profile
M2-120-UM MPE Profile
M2-121-UM Drawbar Organ Profile
M2-122-UM Rotary Speaker Profile
M2-123-UM MIDI-CI Profile for Note On Selection of Orchestral Articulation
In this article, we will summarize each of the these Profiles and explain their benefits to people who use MIDI and why you should be encouraging companies to support these Profiles in their products in the future.
Default Control Change Mapping Profile
Many MIDI devices are very flexible in configuration to allow a wide variety of interaction between devices in various applications. However, when 2 devices are configured differently, there can be a mismatch that reduces interoperability.
This Default Control Change Mapping Profile defines how devices can be set to a default state, aligned with core definitions of MIDI 1.0 and MIDI 2.0. In particular, devices with this Profile enabled have the assignment of Control Change message destinations/functions set to common, default definitions.
One of the core challenges with MIDI 1.0 was that there were fewer than 128 Controller Change messages (because the MIDI 1.0 Control Change list also included Mode Changes messages, Program and Bank Change and some other very fundamental mechanisms tied to physical controllers like Foot Pedals.
On top of that the Reset All Controller message in MIDI 1.0 is interesting because it does NOT reset all controllers (only some of them) and only resets the value of the controller, not it’s destination.
In otherwords, a Reset All Controller messages will reset the value of CC74 to a default value, but not what CC74 is mapped to.
For historical reasons, many products come with default MIDI mappings setting often used parameters to the CC messages used to control General MIDI modules.
One of the first and best examples of a hardware controller that used these typical assignments was the Phat Boy by Keyfax.
If you look at the front panel of the Phat Boy and the list of controllers in the Default Controller Mapping Profile, you can see exactly how these things would work together. Channel Volume (Control Change 7), Pan (Control Change 10) are also included as well as the mapping for the physical devices listed in the MIDI 1.0 specification that include Mod Wheel, Breath Controller, Foot Controller, Damper, Sustenuto, Soft Pedal and Legato FootSwitch.
You can download the Default Control Mapping Profile HERE.
“Actually General MIDI was an example of what a Profile could do. GM was a defined set of responses to set of MIDI messages. But GM was done before the advent of the bi-directional communication enabled by MIDI-CI.
So in the MIDI 1.0 world, you sent out a GM On message, but you never knew if the device on the other side could actually respond to the message. There was no dialog to establish a connection and negotiate capabilities.
But bi-directional commmunication allows for much better negotiation of capabilities (MIDI -CI stands for Capabilities Inquiry after all).”
Here is a quote from the Executive Summary of the GM Function Block Profile.
The General MIDI specifications were written many years before MIDI 2.0 and the concept of MIDI Profiles enabled by MIDI-Capability Inquiry (MIDI-CI). General MIDI describes a minimum number of voices, sound locations, drum note mapping, octave registration, pitch bend range, and controller usage, thereby defining a given set of capabilities to expect in a given synthesizer which claims General MIDI compatibility. This document defines how to use General MIDI 2 as a MIDI-CI Profile.
This new definition allows all the capabilities of General MIDI 2 devices to be enabled or disabled using MIDI-CI Profile Configuration messages. The MIDI-CI Profile for General MIDI 2 defines bidirectional mechanisms for devices to discover whether General MIDI 2 functionality is available on a Receiver, enabling a more reliable and predictable result from the connection between two devices.
The GM Function Block Profile can set an entire set of 16 Channels to respond to GM2 messages, but because MIDI 2.0 has 16 Groups that can expand the functionality of MIDI beyond just 16 channels, a GM Function Block Profile could be used to set 32 or 48 channels to GM. Here is a quote from the spec.
“The MIDI-CI Profile for General MIDI 2 is a Function Block Profile (see the Common Rules for Profiles [MA04]). The Device ID: Source or Destination field in all MIDI-CI Profile Configuration messages for this GM2 Profile shall be set to 0x7F (Function Block).
The GM2 Profile supports 16 Channels on a Device connected by a MIDI 1.0 transport.
On a MIDI 2.0 transport using UMP Format, the Profile supports any multiple of 16 up to 256 Channels. When using the UMP Format, the number of Channels which will be used when the GM2 Profile is enabled is determined by the Function Block design of the Receiver. The Sender may discover the number of Channels in the Receiver’s Function Block(s) by mechanisms defined in the Universal MIDI Packet (UMP) Format and MIDI 2.0 Protocol specification [MA06].
When the Function Block spans 2 or more Groups, the rules of Channel usage from General MIDI 2 shall apply individually to each Group. For example, if the Profile is operating on Groups 7 and 8, Channel 10 of both Groups defaults to a Rhythm Channel and all other Channels default to a Melody Channel. See the General MIDI 2 specification [MA07] for rules of implementation for each set of 16 Channels (each Group).
As defined in the Common Rules for Profiles, if no Function Blocks are declared by the Receiver, then the Profile will operate on a single UMP Group (with 16 Channels) or on 16 Channels of a MIDI 1.0 connection.
You can download the GM function Block Profile HERE.
The GM Single Channel Profile
In addition to the Function Block Profile, we have added the ability to turn on GM on Single Channel.
General MIDI System Level 1 and General MIDI 2 specifications were written many years before the concept of MIDI Profiles enabled by MIDI-CI. The original specifications require support on all 16 MIDI channels. This document defines how to use MIDI-CI Profile Configuration Messages to implement the functions of a General MIDI 2 Melody Channel on a single channel.
This Single Channel GM Profile only supports the Melody Channel of GM2 as we have some other plans in the works for Drum and Percussion Profiles.
MPE Profile
Youtube Video of the MPE WG Presentation at NAMM 2024
MPE has been called by Geert Bevin, one of the major proponents of both the original MPE spec and the new MPE Profile as “the bridge between MIDI 1.0 and MIDI 2.0”. MPE uses channel rotation so that each Note can have it’s own MIDI Polyphonic Expression.
There are many MPe devices in the market and MIDI Association Member Roli has done a great job of pulling together information on all the products available.
Click on the link below to see a list of products that currently support MPE.
So what are the advantages that a Profile brings to the table? Just like GM, MPE had no bi-directional communication so two products couldn’t negotiate and share information about their capabilities.
Being able to let two products exchange information can greatly expand the interoperability between the products. We tried to add as much benefit as possible without fundementally changing how MPE currently works. Here is an Overview taken directly from the new MPE Profile Specification.
MPE Profile Overview
MPE Profile Functional Overview
The MPE Profile is a MIDI-CI Profile which conforms to the definition of a Multi-Channel Profile as defined in the M2-102-U Common Rules for MIDI-CI Profiles [MA04]
“Turning On and Enabling a Profile”. This overview summarizes the main elements of the MPE Profile specification, additional important details can be found in later sections.
MPE Profile is switched on and configured using the following messages:
MIDI-CI Profile Configuration mechanisms to setup the devices and enable the MPE Profile
Registered Controller/RPN [0x00, 0x00] to change the Pitch Bend Sensitivity from the default MPE Profile value of 48 HCUs, if desired or needed.
MPE offers per-note expressive control using the following messages:
Note On/Off
Pitch Bend
Channel Pressure or alternatively, bipolar Registered Controller/RPN [0x20, 0x20]
Third Dimension of Control using Control Change #74 or, alternatively, bipolar Registered Controller/RPN [0x20, 0x21]
MPE uses the following mechanisms to coordinate per-note control:
The range of Channels over which notes are sent and received can be set by enabling this Profile. The
MIDI Channel space can be divided into multiple Zones by enabling multiple MPE Profiles with non- overlapping Channels.
Each MPE Profile has a number of Member Channels for notes plus a dedicated extra Channel, called the Manager Channel, which conveys information common to all Active Notes in that Zone. The Manager Channel is always the lowest Channel in the Profile and is not used for notes.
Wherever possible, every note is assigned its own Channel for the lifetime of that note. This allows MPE messages to be addressed uniquely to that Active Note.
2.2 Differences Between MPE (v1.1) and this MIDI-CI Profile for MPE
There are a number of differences between MPE 1.1 and MPE Profile. Specifically:
The Profile is receiver centric. The receiver will report back the range of Channels that it can support, and the Sender will adapt.
The MPE 1.1 configuration parameter formerly set by RPN 6 (MCM), is now handled by enabling an MPE Profile using MIDI CI. See M2-102-U Common Rules for MIDI-CI Profiles [MA04].
Multiple Zones are realized by enabling multiple MPE Profiles with non-overlapping Channels.
The Manager Channel is always the lowest Channel in the Profile.
Notes sent on the Manager Channel are not defined by this Profile.
Because the Manager Channel is always the lowest Channel, the MPE 1.1 Upper Zone is not possible with an MPE Profile.
Profile Details Inquiry mechanism is used to determine the number of MIDI Channels which will be used by MPE and to discover the Receiver’s properties which are addressed by the MPE controls.
There is no need to send Pitch Bend Sensitivity to every individual Member Channel, it is sent to the Manager Channel only.
So here are a couple of points about the new MPE Profile.
The MPE Profile can be extended over more than 16 Channels
The MPE Profile can have multiple “Zones” because you can enable multiple Profiles as long as there are no overlapping channels. MPE is no longer limited to just 16 channels and 2 Zones.
Manager Channels and Member Channels clarify how Messages are used
The Profiles Detail Inquiry Message can discover optional features increasing interoperability between devices.
The following are defined as optional features:
MPE devices are not required to use all three core MPE Expression Controllers.
MPE devices may optionally and mutually exclusively use high resolution versions of Channel Pressure or Third Dimension of Control Section 4.5
MPE devices may optionally respond to Channel Response Type notification (Section 3.6.3)
You can download the MPE Profile Specification HERE.
Drawbar Organ Profile
About MIDI 2.0 Profiles
Several years ago, we showed this demo of several prototypes of the Drawbar Organ Profile and some people may wonder what ahs taken so long to pass the Drawbar Organ Specification. Actually several very key mechanisms had to be developed before developers would ready to implement Profiles.
First, we had to come up with and prototype the Profile Details Inquiry message. This mechanism allows two products to share what optional features are supported without having to make the user configure anything. Also we need to get the operating systems to implement new MIDI APIs to pass this messages.
Below is an image taken from the Drawbar Organ Single Channel Profile. You can see the level of detail that can included in a Profiel Details Inquiry. Once again, it is important to point out that these mechanisms are two MIDI products talking to each other and auto-configuring themselves.
Rotary Speaker Profile Specification defines a common set of basic features and MIDI messages to control a rotary speaker. The typical model is a rotating speaker cabinet with a horn and woofer that rotate at different speeds. The Device that implements the specification might be a rotating speaker or an effects unit that emulates the sound of a rotating speaker. The goal of the specification is to encourage implementation of a chosen set of MIDI messages for control for the parameters that are most common to all such Devices.
Once again, once we had the right mechanisms in place, the Rotary Speaker is a very simple Profile.
Profile for Note On Selection of Orchestral Articulation
We are working on many Profiles, but we believe that the Note On Articulation could have significant impact on the way movies and games are scored in the future. Here are two Youtube videos.
The first is an overview of the Orchestral Articulation Profile and the second is the presentation from NAMM 2024 at The MIDI Association booth.
The Orchestral Articulation Profile Presentation at NAMM 2024
Executive Summary
There are many orchestral sample libraries in the market, and they are essential for film scoring, game audio, studio, and live MIDI applications. These orchestral libraries have many kinds of articulations.
For example, a string library might have a different set of samples for every articulation including marcato, staccato, pizzicato, etc.
However, there is no industry standard method-the method for selecting these different articulations has been different for each developer. Many developers use notes at the lower end of the MIDI note range for “key switching”, but the actual keys used are different between different developers. Some developers use CC messages to switch between articulations, but again there is no industry wide consistency. Some plugin formats now have the ability for per note selection of articulations, but again the method for inputting that data is different for different applications.
It is the goal of the MIDI-CI Profile for Note On Selection of Orchestral Articulation to provide a consistent way to encode articulation information directly in the MIDI 2.0 Note On message, using the Attribute Type and Attribute Data fields.
In arriving at this Profile, a study was made of orchestral instrument families, choir, big band instruments, guitar, keyboard instruments, and various non-western instruments to evaluate the degree to which they share common performance attributes and sound production techniques. Notation symbols and performance indications were also considered to determine, for example, how successfully a violin note marked with a trill might result in a musically meaningful or analogous articulation when the part is copied to an instrument as far afield as timpani— all without the composer having to re-articulate the timpani part, at least initially.
The Profile provides a comprehensive yet concise system of articulation mapping that includes a wide palette of articulation types and supports articulation equivalence across eight instrument categories.
The Profile was designed to offer articulation equivalence — a system of articulation mapping that allows a passage articulated for one instrument to be copied to another track and played back with an equivalent or analogous articulation, regardless of the target instrument type.
When implemented by sample library developers, the Profile will greatly aid composers in highly significant ways.
First, it will simplify the process of substituting or layering sounds from the same or different sample libraries;
Second, it will allow composers to quickly audition and orchestrate unison passages by copying an articulated part to other tracks and hear them to play back with equivalent or analogous articulations.
Here is a dopwnloadable PDF of the Orchestral Articulation Profile Overview.
We are working on several important Profiles that we hope to finish in the future near future.
The Orchestral Profile will be available for download soon.
The Camera Control Profile
Camera Control Profile Demo
Video has become the premier driver of many aspects of creative production and is now often an integral part of the music production process. Video Cameras are ubiquitous and have well-defined feature sets.
They can be roughly categorized in two groups- simple cameras with basic on/off, zoom, and focus and Pan, Tilt, Zoom cameras with either mechanical motors for moving the camera lens to focus on different objects or digital mechanisms for the same type of PTZ control.
The feature sets for these cameras are well defined, but there is no standardized control protocol. In fact, instead there are many different manufacturer specific protocols that all do very similar things. The Camera Control Working Group analyzed the various manufacturer specific protocols, determined what features had commonality and then defined the MIDI messages to control those features.
MIDI allows people to use off the shelf MIDI controllers to also control their cameras making it easier to integrate and use these products.
Adoption of the Profile might happen in one of two ways.
Software could be developed that translated MIDI messages into the various manufacturer specific protocols which would allow Profile support for cameras already in the market.
In the future, new cameras could be shipped with MIDI support for the Profile built-in.
The Piano Profile
Just last week, we had a joint meeting of the MIDI Association and AMEI working groups on the Piano Profile. AMEI companies that are participating are Yamaha, Roland, Korg and Kawai and The MIDI Association companies include Synthogy, Steinway, Piano Disc, Kurzweil.
The two videos that follow detail the work we have been doing on the Piano Profile and also a demo of the Profile featuring Scott Tibbs.
Goal of the Piano Profile
Piano Profile Demo at NAMM 2024 featuring Scott Tibbs
We’ve Been Busy
As Luther said when he gave the parking garage attendant a three year old parking garage ticket “I’ve been busy”. Yes, we have been very busy, but are starting to see the results of our work.
Our MIDI Association volunteers are continuing to work on new Profiles specifications including a DAW control profile and multiple effects profiles.
We just started a DAW working group which has the support of Apple (Audio Units), AVID( AAX), Bitwig (CLAP) and Steinberg (VST) so we have all the plug in format companies, multiple DAW and notation companies, and plug in developers all working together to ensure that MIDI 2.0 is handled correctly now that the operating systems have completed much of their work. We are planning a face to face meeting in Berlin before SuperBooth.
The Windows Open Source Driver and API is available to developers and Apple, Google and Linux continue to improve their support for MIDI 2.0.
So if you are developer, we hope you will join us by becoming a MIDI Association member or posting on the new public forum that has an area dedicated to developers.
If you are someone who uses MIDI, there are more and more MIDI 2.0 products in the market and we are confident that 2024 will prove to be a significant year in MIDI 2.0’s history.
We recently sent out a survey about our NAMM plans and one of the interesting comments came from a developer.
I’ve been following up with the development of MIDI 2.0 for a long time as an open source developer. Not having open tooling to validate the development is really sad and delays adoption by the community. Why didn’t you open the MIDI workbench or some other tooling to help developers simulate devices, inspect communications and validate our software/hardware yet?
from the recent MIDI Association survey
The MIDI Association and our members agree. After much internal discussion, we decided the best way to accomplish this goal was to have a number of our members create a website specifically for open source resources.
Key contributors to the MIDI 2.0 specification open a new website and github with open source resources for developing MIDI 2.0 products.
Mike Kent, chair of the MIDI 2 Working Group, his partner Michael Loh, chair of the OS API Working Group, Andrew Mee, recently elected Technical Standard Board member and Chair of the Developer Support Working group, and Franz Detro of Native Instruments formed a consortium of individuals whose aim is to promote the adoption of MIDI 2.0 by providing tools and libraries useful to developers. Resources include C++ Libraries, USB helpers, testing applications, and more from leading contributors to the MIDI 2.0 specifications.
Here is an overview of the resources available at https://midi2.dev/. These are available under permissive open-source licenses.
MIDI WORKBENCH MIDI 2.0 TESTING AND COMPLIANCE TOOL
The MIDI Workbench MIDI 2.0 is a Standalone Electron Application for complete MIDI 2.0 environment. This workbench uses UMP internally and translates MIDI 1.0 (including MPE) to and from MIDI 2.0.
This Project aims to follow the current public MIDI specifications. This project is supported and copyrighted by Yamaha Corporation 2020 and provided under an MIT license.
AmeNote ProtoZOA
AmeNote ProtoZOA is a flexible prototyping tool for MIDI 2.0. Open source firmware provides MIDI 2.0 interfaces and functions for developers to use in their own hardware and software products.
MIDI 2.0 with MIDI-CI Discovery
USB MIDI 2.0 Class Compliant Device
Universal MIDI Packet Data Format
MIDI 1.0 <-> MIDI 2.0 Translation
MIDI 1.0 Input / Output Ports
Expansions for MIDI 2.0 UMP Network, A2B Network, CME BLE MIDI, SPI, UART
Open-Source Code on Raspberry Pico
PicoProbe for integrated debugging
AmeNote developed and provides a USB MIDI 2.0 Class Compliant Device on ProtoZOA, designed specifically to jump-start prototyping and validation of UMP functions and fuel the MIDI 2.0 revolution. ProtoZOA encourages speedier adoption of MIDI 2.0 by:
Providing an affordable, flexible prototyping platform to enable software and hardware developers to start testing and prototyping MIDI 2.0.
Providing a testing platform which connects via the USB MIDI 2.0 drivers recently released by Apple and Google and a test tool for Microsoft as AmeNote develops Windows host drivers.
Provide USB MIDI 2.0 source code that other hardware developers can use under a no-charge permissive license.
The MIDI Association helped to fund the development of the Protozoa and made it available to dues-paying members of the MIDI Association and the Association of Musical Electronics Industry. Some 60+ member companies have been using ProtoZOA for over a year. Now AmeNote is making ProtoZOA available to all non-member developers.The Protozoa is available for purchase on the Amenote website in a variety of configurations.
This is a general purposes Library for building MIDI 2.0 Devices and Applications. This library is targeted to work on everything from Arduinos through to large scale applications. It provides foundational building blocks, processing, and translations needed for most MIDI 2.0 Devices and Applications.
ni-midi2
The library provides the basic functionality of UMP 1.1 and MIDI-CI 1.2 by providing base classes for all UMP 1.1 packet types, (Universal) System Exclusive messages and MIDI-CI messages. There are concrete types for controllers, velocity and pitch, plus type aliases for common message field types. Mathematical operators allow to do integer / fixed point math on pitches and controllers, type constructors allow initialization with values of different resolution. Conrete instances of packets or messages are created using factory functions. Incoming packets and messages are inspected using data views. The library is completed by a number of helper functionalities dealing with conversion from / to MIDI 1 byte stream data format, collecting sysex messages and more.
AmeNote tusb_ump Device Driver for tinyUSB
AmeNote Universal MIDI Packet (UMP) USB MIDI 2.0 / USB MIDI 1.0 Class Driver for tinyUSB Device
As part of the midi2.dev community and with the intention of contributing back to tinyUSB, AmeNote is providing a class driver for USB MIDI (either 1.0 or 2.0) for tinyUSB USDB Device integrations. With the correct descriptors and configuration, the driver will enable embedded devices using the tinyUSB embedded library.
The driver is compatible with hosts selecting either USB MIDI 2.0 or USB MIDI 1.0 standard. If USB MIDI 1.0, the driver will translate between USB MIDI 1.0 and UMP packets. All embedded applications will interface using UMP packet data structure as a series of 32-bit words.
TODO: Example code and integration guide will be provided
usbMIDI2DescriptorBuilder
Andrew Mee has created a tool to help correctly build USB descriptors. USB descriptors can be quite difficult for developers to get right and this tool will create USB MIDI 2.0 Descriptors for the tinyUSB and Linux MIDI2 Gadget Driver.
These MIDI 2.0 developer resource efforts highlight what is truly unique about the MIDI Association.
Since MIDI’s genesis, companies that are traditionally fierce competitors have chosen cooperation as the best way to solve difficult problems—and to contribute those solutions at no charge back to the global community, for the benefit of musicians, artists, and engineers everywhere.
If you are developer of MIDI products, you will definitely want to check out this in depth look at the significant upgrades happening to MIDI in an upcoming version of Windows from Microsoft MIDI evangelist and chair of The MIDI Association Exec Board Pete Brown.
In the past few weeks, a number of MIDI Association member companies have released MIDI 2.0 products.
In this article, we’ll give a brief overview of those new MIDI 2.0 products, describe what their MIDI 2.0 features are and try to give an accurate picture of the MIDI 2.0 market.
The MIDI Association is currently undertaking a complete redesign of the MIDI.org website. By Winter NAMM 2024, our plan is to have a searchable database of MIDI 2.0 products. Companies will be able to upload information on new MIDI 2.0 products and MIDI users will be able to search for MIDI 2.0 products that work together.
MIDI 2.0 products can have different features sets. Some that support MIDI-CI Profiles and Property Exchange will work on MIDI 1.0 transports including 5 Pin DIN. Some require an operating system that supports MIDI 2.0 high resolution Voice Channel Messages, and some even need other products that support the same feature set to take full advantage of MIDI 2.0 features (for example, the demo at The MIDI Association booth in April 2023 included a Roland A88MKII, an Apple computer running Logic and AU and Synthogy’s Ivory Piano softsynth.
Native Instruments Kontrol S-Series MK3
Native Instruments has released the Kontrol S-Series MK3 which supports a number of MIDI 2.0 features. It supports USB MIDI 2.0, the new Universal MIDI Packet (UMP), MIDI 1.0 Voice Channel Messages in UMP format, and MIDI-CI Property Exchange including Channel List. It also supports Function Blocks. What is important to note is that even though it supports USB MIDI 2.0, it also has 5 PIN Din MIDI In and Out connectors.
If you have a Mac Computer that is running any operating system after Monterey, the internal native format for MIDI in the operating system is MIDI 2.0 High Resolution Voice Channel Messages.
When you plug in your MIDI 1.0 keyboard or interface, the OS is smart enough to know it is a MIDI 1.0 device and translates the internal MIDI 2.0 messages into MIDI 1.0 messages that your keyboard can understand.
People often worry if MIDI 2.0 will force them to buy a new cable, new software or new products. But literally for the last 2 years, people who owned Macs and updated their operating system have been using “MIDI 2.0”, they just didn’t know it or notice it because we spent so much time and effort making sure that things were backwards compatible.
So go ahead, connect a Sequential Circuits Prophet 600 or a Roland Jupiter 6 (the first two products ever connected by MIDI back in 1983) to your NI Kontrol S Series MK3 and they will still work just fine!
The S-Series MK3 features a large full color display, polyphonic aftertouch, and light guides for Smart Play. It also features software integration via NI’s next generation of NKS technology.
Features
Unparalleled software integration with next-generation NKS technology for a direct and immersive connection to NI and partner instruments, effects, and sounds
Choose between 49 or 61 semi-weighted keys, or 88 fully weighted hammer-action keys, all in an industry-leading Fatar keybed
All three models come with polyphonic aftertouch as standard, plus Kontrol S88 is the first widely available hammer-action polyphonic aftertouch keyboard controller
High-resolution full-color display screen for intuitive browsing, tweaking, and mixing
Light Guide: RGB lights above each key highlight drum cells, key switches, chords, scales, and more
Smart Play: See scales and modes on the Light Guide, play chord progressions and arpeggios with single keys, or map any scale to white keys only
Anodized aluminum knobs and pitch and modulation wheels
by Native Instruments
Korg Keystage
Korg has released the Keystage controller which supports MIDI 2.0 via a manufacturer specific MIDI-CI Property Exchange including Channel List.
In designing MIDI 2.0, we wanted to allow companies to innovate without needing to get something standardized by the entire industry. So both Profiles and Property Exchange allow companies to use their companies SysEx ID to define a manufacturer specific Profile or Property Exchange.
That is exactly what Korg did with the Keystage. They use MIDI-CI Property Exchange to send JSON data between the computer and the Keystage. They can subscribe parameters so the communication is bi-directional and always gets updated. Because JSON is in human readable format, it can be easily displayed on the screen of the controller.
What’s important is that once companies have developed the core software for doing MIDI-CI that MIDI 2.0 software can be re-used in future products.
Keystage is at the forefront of keyboard innovation, being the first to truly tap into the potential of MIDI 2.0. Simply connect the keyboard to compatible software, and Keystage automatically assigns parameters and even displays their names on its crystal-clear OLED screens. Each screen is paired with a dedicated knob for real-time adjustments, meaning you always see the parameters assigned and their exact values, empowering you to make informed decisions and act on your musical instincts without breaking your creative stride.
by Korg
Roland A88 MKII Firmware Update
Roland announced the A88 MKII in 2020 and said that it was MIDI 2.0 ready and that the keyboard was capable of high resolution velocity and the and knobs were capable of sending 32 bit controllers. They have now made good on that promise by releasing a firmware update.
Roland is pleased to announce the immediate availability of a free MIDI 2.0 update for the A-88MKII MIDI Keyboard Controller. When Roland first introduced the A-88MKII at the Consumer Electronics Show (CES) in January 2020, the hardware was designed to be “ready for MIDI 2.0.” Now in 2023, MIDI 2.0 support is included with or coming very soon for all major computer and device operating systems.
With the free MIDI 2.0 update installed, A-88MKII owners will be ready to take advantage of dramatically increased musical expressivity as compatible instruments and apps become available. Pianos will perfectly reflect the most subtle keyboard playing techniques, orchestral sounds will be more acoustic and lifelike, and synthesizer textures will respond to performance gestures like never before.
Speaking to the A-88MKII MIDI 2.0 update, Roland Vice President of Customer Experience (CX) Paul McCabe notes, “Roland was a pioneering contributor to the original MIDI Standard over 40 years ago and has been deeply involved in the development of MIDI 2.0 since day one. Bringing MIDI 2.0 to life for musicians worldwide has long been a high priority for us, and we are pleased to make this happen with the free update for our A-88MKII MIDI Keyboard Controller.”
by Roland
Once again, we should point out that the A88 MKII which now supports MIDI 2.0 still includes good old 5 Pin DIN plugs. Now that companies are actually releasing products, people should feel very comfortable with the fact that MIDI 2.0 and MIDI 1.0 products will live side by side in their studios with no issues.
DAWs and Plugins Support for MIDI 2.0
There are now a number of DAWs on the market that have support for MIDI 2.0.
MultitrackStudio supports MIDI 2.0 and MIDI 2.0 VCM, MIDI-CI, Property Exchange Program List, MIDI 2.0 VCM with Articulations,
Logic supports MIDI 2.0 CVM and those can be passed to AU plugins,
Steinberg’s Cubase 13 and Nuendo 13 translate some MIDI 2.0 messages into VST3 format and supports high resolution velocity, CC, aftertouch, pitch bend, and poly pressure data. According to the Steinberg website both Nuendo 13 and Cubase 13 are ready for the widespread adoption of MIDI 2.0.
It’s clear that there will soon be many, many MIDI 2.0 products in the market.
As we mentioned before, we are working on a redesign of the MIDI.org website that will allow companies to enter their MIDI 2.0 products into a searchable database. If you want a preview of what that might look like just pop over to the MIDI Innovation Awards pages. Those entries were all done by the entrants filling out a web form with images, Youtube links and defined text fields that we can then use as dynamic content that automatically builds web pages after the entry is approved.
Next week, we will do another article that focuses on the tools and open source software that The MIDI Association and MIDI Association members are making available to support MIDI 2.0 developers.
In the last part we created a simple set of USB MIDI 2.0 descriptors for a synthesizer. The “ACMESynth” at this stage has one function, the “Monosynth”, and a USB MIDI 2.0 Group Terminal Block was declared for this function.
In this second guide we will cover:
UMP Discovery handling
Function Blocks and how to expand them
UMP Discovery Handling
Our hypothetical ACMESynth is designed to be used primarily as a tone generator connected to a DAW. The goals of discovery are:
We want the DAW to know which UMP Group is in use and information about this Group.
We want the DAW or Operating System (OS) to use MIDI 2.0 Channel Voice messages. (Another article will cover handling of MIDI 1.0 Protocol, MIDI 2.0 Protocol, and translation.)
We want the USB device to provide names and identifiers so that the DAW can store local information about the ACMESynth to help the user when they reload a DAW session.
The UMP and MIDI 2.0 Protocol ver 1.1 specification defines discovery mechanisms so that devices can interrogate each other and present the user options on the best way to connect to a device to achieve the goals listed above.
Note: MIDI-CI is used additionally to discover more information about a device which we will be discussing in another article.
Our device needs to be able to respond to the following Groupless messages:
Endpoint Discovery Message
Stream Configuration Request
Function Block Discovery Message
Let’s relook at the data work our ACMESynth and add the Device Identity data we need:
Detail
Value
Manufacturer Name
“ACME Enterprises”
Product Name
“ACMESynth”
Product Instance Id
“ABCD12345”
Protocol
MIDI 2.0 Protocol (with a fallback to MIDI 1.0 Protocol)
Manufacturer SysEx Id
0x7E 0x00 0x00This example uses the Research Manufacturer System Exclusive Id set by MIDI Association. This System Exclusive Id is often shown as a single byte. However in many MIDI 2.0 Messages single byte id’s are transmitted using 3 bytes. Manufacturers should contact the MIDI Association to get their own Id.
Model Family Id
0x01 0x00
Model Id
0x11 0x22Family Id and Model Id are defined by the Manufacturer and often messages define that these are LSB first. Please review MIDI Specifications for a detailed explanation.
Version
0x01 0x00 0x00 0x00
Function 1
Function 1 Name
“Monosynth”
Function 1 Channels Needed
1 Channel at a time used bidirectionally
Note: This guide shows UMP messages similar to the UMP and MIDI 2.0 Protocol specification. It is recommended that developers use a library such as my AM_MIDI2.0Lib C++ library or ni-midi2 library to help with parsing and creating the UMP messages correctly.
Responding to the Endpoint Discovery Message
One of the first UMP messages that your device may receive is the Endpoint Discovery Message. This example is asking for all information available about the UMP Endpoint.
Endpoint Info Notification Message (filter & 0b1 == true)
In response to the above message, the ACMESynth formulates an Endpoint Info Notification Message:
The Endpoint Info Notification is declaring that the ACMESynth supports both MIDI 1.0 and MIDI 2.0 Protocols and that it has one static Function Block. This is reflected by the Group Terminal Block discussion in part 1.
In response to the above message, the ACMESynth formulates an Device Identity Notification Message:
Endpoint Name Notification Message (filter & 0b100 == true)
In response to the above message, the ACMESynth formulates an Endpoint Name Notification Message:
Product Instance Id Notification Message (filter & 0b1000 == true)
In response to the above message the ACMESynth formulates a Product Instance Id Notification Message:
Stream Configuration Notification Message:
While the Endpoint Info Notification messages inform the other UMP Endpoint of its support for different Protocols and JR Timestamps, the Stream Configuration Notification informs the other UMP Endpoint of its current Protocol and JR Timestamp configuration.
In our startup state of the ACMESynth it will be using MIDI 1.0 Protocol. JR Timestamp is not supported so it will set this to off.
Responding to the Stream Configuration Request
The device connected to the ACMESynth may wish to change from MIDI 1.0 Protocol to MIDI 2.0 Protocol. It achieves this be sending a Stream Configuration Request:
If ACMESynth agrees with this change then it will change its Protocol in use an send a Stream Configuration Notification Message in response:
If ACMESynth was unable to change with the Protocol change it should send a response with the Protocol set to 0x01.
Responding to the Function Block Discovery
The Endpoint Info Notification message declares how many Function Blocks ACMESynth has. A separate message is received that asks us to respond with the Function Block information:
The Function Block Number (FB#) could have also been 0x00 to represent the first (and only) Function Block. This request is also asking to return both the Info and the Name of the Function Block. This request result in two replies:
Function Block Info Notification
This Function Block is providing the direction (0xb11 – bidirectional), an indication if the Function block represents a MIDI 1.0 (0b00 – Not MIDI 1.0) and Groups in use.
As Function Blocks provide more information than USB Group Terminal Blocks it also provides
a UI Hint (0b01 – primarily a Receiver or destination for MIDI messages) – While our Monosynth supports bidirectional MIDI Messages, it mainly acts as a Tone Generator. A DAW can look at this field and have a better understanding and representation of the Devices connected.
a the MIDI-CI Version (0x00 none or unknown) – currently set to none. Later articles will look at MIDI-CI support and how this value is affected.
Max number of SysEx8 Streams – Our Monosynth does not support SysEx8 so this is set to zero.
Function Block Name Notification
Function Blocks and How to Expand Them
So far in the ACMESynth we have only declared a single Monosynth function. However many devices may require more than one function. Let’s take our device and add 2 more functions, a “MIDI IN” Din Port, and a “MIDI OUT” Din Port:
Let’s assume that the reason to add these functions is that we want our MIDI Application to use these DIN ports as a USB MIDI Adaptor for external MIDI 1.0 gear.
Our table of functions for the ACMESynth now looks like:
Detail
Value
Function 1
Function 1 Name
“Monosynth”
Function 1 Channels Needed
1 Channel at a time used bidirectionally
Function 1 Groups used
Only one Group is used on Function 1
Function 2
Function 2 Name
“MIDI IN”
Function 2 Channels Needed
16 Channel at a time may used in one direction (inwards)
Function 2 Groups used
Only one Group is used on Function 2
Function 3
Function 2 Name
“MIDI OUT”
Function 3 Channels Needed
16 Channel at a time may used in one direction (outwards)
Function 3 Groups used
Only one Group is used on Function 3
By making this change our Endpoint Info Notification Message should declare three Function Blocks:
And our Function Block Info Notification and Function Block Name messages also needs to handle the two new Function Blocks:
Function Block 2: Function Block Info Notification
Pay attention to the settings of MIDI 1.0, UI hint and Direction fields. For this Function Block we have set the direction as Input and the UI Hint also as Input.
Function Block 3: Function Block Info Notification
Function Block 3: Function Block Name Notification
What about the USB Group Terminal Blocks?
To make the USB Group Terminal Blocks reflect our new set of static Function Blocks we should extend the Group Terminal Block descriptor from part 1 (which already contained a bidirectional Group Terminal Block for the Monosynth) with the following:
Detail
Meaning
Value
bGrpTrmBlkID
Block Id
2
bGrpTrmBlkType
Block Type
0x01 – IN Group Terminals Only
nGroupTrm
Group Terminal Block Start
0x01 – Group 2
nNumGroupTrm
Number of Group Blocks
1
iBlockItem
Function 2 Name
Id of String Descriptor Referenced Value – “MIDI IN”
bMIDIProtocol
Block Protocol*
0x01 (MIDI 1.0 Protocol)
Detail
Meaning
Value
bGrpTrmBlkID
Block Id
3
bGrpTrmBlkType
Block Type
0x02 – OUT Group Terminals Only
nGroupTrm
Group Terminal Block Start
0x01 – Group 2
nNumGroupTrm
Number of Group Blocks
1
iBlockItem
Function 3 Name
Id of String Descriptor Referenced Value – “MIDI OUT”
bMIDIProtocol
Block Protocol*
0x01 (MIDI 1.0 Protocol)
USB Endpoints under the Interface will also need the following updates to their values values:
IN Endpoint:
Detail
Meaning
Value
bNumGrpTrmBlock
2
baAssoGrpTrmBlkID[0]
Block Id
1
baAssoGrpTrmBlkID[1]
Block Id
3 (MIDI OUT)
OUT Endpoint:
Detail
Meaning
Value
bNumGrpTrmBlock
2
baAssoGrpTrmBlkID[0]
Block Id
1
baAssoGrpTrmBlkID[1]
Block Id
2 (MIDI IN)
Note: you may also wish to update the USB MIDI 1 Descriptors to have these new functions on separate MIDI 1.0 Ports.
Static vs Non-Static Function Blocks
Up to this point we have been using static Function Blocks when declaring the functions of ACMESynth. When connecting to a DAW that is the central manager and handling the routing of MIDI Messages this is unlikely to present any problems.
This is because a DAW is likely to adapt to the devices connected to it. In this case the ACMESynth declares it has the Monosynth on Group 1 and the DAW will send MIDI Messages on Group 1.
However static Function Blocks have limitations when connecting between other devices. Much like when two devices that connect to each other must use the same channels – two UMP enabled devices must use the same Groups (and Channels) to communicate effectively.
Function Blocks also have the ability (unlike USB Group Terminal Blocks) to overlap. For example we may want a setup where the Monosynth and MIDI IN and MIDI Out functions all use the same Group. By using non-static Function Blocks the user can move these functions to the same Group.
This ability to reconfigure Function Blocks may become more important with other (upcoming) UMP transports.
Group Terminal Blocks for Non-Static Function Blocks
When using static Function Blocks it is easy to see that having matching USB Group Terminal Blocks makes sense. When Function Blocks are non-static it is best to have one bidirectional Group Terminal Block that covers all 16 Groups.
Detail
Meaning
Value
bGrpTrmBlkID
Block Id
1
bGrpTrmBlkType
Block Type
0x00 – Bidertional
nGroupTrm
Group Terminal Block Start
0x00 – Group 1
nNumGroupTrm
Number of Group Blocks
16
iBlockItem
Function 2 Name
Id of String Descriptor Referenced Value – “ACMESynth”
bMIDIProtocol
Block Protocol
0x11 (MIDI 2.0 Protocol)
4Endpoint Info Notification Message should declare three non-static Function Blocks:
As macOS only provides MIDI 1.0 compatibility to Groups declared by a Group Terminal this allows Functions blocks to move around freely to different Groups while still allowing MIDI 1.0 compatibility.
The downside of this is that all 16 Groups are presented as MIDI 1.0 ports even though only a handful may be connected to an internal function like the Monosynth.
Linux works somewhat differently in that all UMP connections automatically set up all 16 Groups as ALSA ports for MIDI 1.0 compatibility. These ALSA ports are then displayed to the user only if they are active. When a USB MIDI 2.0 device is first connected, it will activate the ALSA Ports based on Group Terminal Block information. It will then attempt to retrieve the current Function Blocks and then update the list of active ALSA Ports. These ALSA ports are then updated immediately based on any Function Block changes.
What to look at next…
In part 3 of this series we are going to look at how to handle advanced USB set-ups, and also look at other gotchas that a developer needs to be aware of.
The MIDI Association has enjoyed an ongoing partnership with Microsoft, collaborating to ensure that MIDI software and hardware play nicely with the Windows operating system. All of the major operating systems companies are represented equally in the MIDI Association, and participate in standards development, best practices, and more to help ensure the user experience is great for everyone.
As an AI music generator enthusiast, I’ve taken a keen interest in Microsoft Research (MSR) and their machine learning music branch, where experiments about music understanding and generation have been ongoing.
It’s important to note that this Microsoft Research team is based in Asia and enjoys the freedom to experiment without being bound to the product roadmaps of other divisions of Microsoft. That’s something unique to MSR, and gives them incredible flexibility to try almost anything. This means that their MIDI generation experiments are not necessarily an indication of Microsoft’s intention to compete in that space commercially.
That being said, Microsoft has integrated work from their research team in the past, adding derived features to Office, Windows, and more, so it’s not out of the question that these AI MIDI generation efforts might some day find their way into a Windows application, or they may simply remain a fun and interesting diversion for others to experiment with and learn from.
The Microsoft AI Music research team, operating under the name Muzic, started publishing papers in 2020 and have shared over fourteen projects since then. You can find their Github repository here.
The majority of Muzic’s machine learning efforts have been based on understanding and generating MIDI music, setting them apart from text-to-music audio generation services like Google’s MusicLM, Meta’s MusicGen, and OpenAI’s Jukebox.
On May 31st, Muzic published a research paper on their first ever text-to-midi application, MuseCoco. Trained on a reported 947,659 Standard MIDI files (a file format which includes MIDI performance information) across six open source datasets, developers found that it significantly outperformed the music generation capabilities of GPT-4 (source).
It makes sense that MuseCoco would outperform GPT-4, having trained specifically on musical attributes in a large MIDI training dataset. Details of the GPT-4 prompt techniques were included on figure 4 of the MuseCoco article, shown below. The developers requested output in ABC notation, a shorthand form of musical notation for computers.
Text to MIDI prompting with GPT-4
I have published my own experiments with GPT-4 music generation, including code snippets that produce MIDI compositions and will save the MIDI files locally using JS Node with the MidiWriter library. I also shared some thoughts about AutoGPT music generation, to explore how AI agents might self-correct and expand upon the short duration of GPT-4 MIDI output.
Readers who don’t have experience with programming can still explore MIDI generation with GPT-4 through a browser DAW called WavTool. The application includes a chatbot who understands basic instructions about MIDI and can translate text commands into MIDI data within the DAW. I speak regularly with their founder Sam Watkinson, and within the next months we anticipate some big improvements.
Unlike WavTool, there is currently no user interface for MuseCoco. As is common with research projects, users clone the repository locally and then use bash commands in the terminal to generate MIDI data. This can be done either on a dedicated Linux install, or on Windows through the Windows Subsystem for Linux (WSL). There are no publicly available videos of the service in action and no repository of MIDI output to review.
You can explore a non-technical summary of the full collection of Muzic research papers to learn more about their efforts to train machine learning models on MIDI data.
Although non-musicians often associate MIDI with .mid files, MIDI is much larger than just the Standard MIDI File format. It was originally designed as a way to communicate between two synthesizers from different manufacturers, with no computer involved. Musicians tend to use MIDI extensively for controlling and synchronizing everything from synthesizers, sequencers, lighting, and even drones. It is one of the few standards which has stood the test of time.
Today, there are different toolkits and APIs, USB, Bluetooth, and Networking transports, and the new MIDI 2.0 standard which expands upon what MIDI 1.0 has evolved to do since its introduction in 1983.
MIDI 2.0 updates for Windows in 2023
While conducting research for this article, I discovered the Windows music dev blog where it just so happens that the Chair of the Executive Board of the MIDI Association, Pete Brown, shares ongoing updates about Microsoft’s MIDI and music efforts. He is a Principal Software Engineer in Windows at Microsoft and is also the lead of the MIDI 2.0-focused Windows MIDI Services project.
I reached out to Pete directly and was able to glean the following insights.
Q: I understand Microsoft is working on MIDI updates for Windows. Can you share more information?
A: Thanks. Yes, we’re completely revamping the MIDI stack in Windows to support MIDI 2.0, but also add needed features to MIDI 1.0. It will ship with Windows, but we’ve taken a different approach this time, and it is all open source so other developers can watch the progress, submit pull requests, feature requests, and more. We’ve partnered with AMEI (the Japan equivalent of the MIDI Association) and AmeNote on the USB driver work. Our milestones and major features are all visible on our GitHub repo and the related GitHub project.
Q: What is exciting about MIDI 2.0?
A: There is a lot in MIDI 2.0 including new messages, profiles and properties, better discovery, etc., but let me zero in on one thing: MIDI 2.0 builds on the work many have done to extend MIDI for greater articulation over the past 40 years, extends it, and cleans it up, making it more easily used by applications, and with higher resolution and fidelity. Notes can have individual articulation and absolute pitch, control changes are no longer limited to 128 values (0-127), speed is no longer capped at the 1983 serial 31,250bps, and we’re no longer working with a stream of bytes, but instead with a packet format (the Universal MIDI Packet or UMP) that translates much better to other transports like network and BLE. It does all this while also making it easy for developers to migrate their MIDI 1.0 code, because the same MIDI 1.0 messages are still supported in the new UMP format.
At NAMM, the MIDI Association showcased a piano with the plugin software running in Logic under macOS. Musicians who came by and tried it out (the first public demonstration of MIDI 2.0, I should add) were amazed by how much finer the articulation was, and how enjoyable it was to play.
Q: When will this be out for customers?
A: At NAMM 2023, we (Microsoft) had a very early version of the USB MIDI 2.0 driver out on the show floor in the MIDI Association booth, demonstrating connectivity to MIDI 2.0 devices. We have hardware and software developers previewing bits today, with some official developer releases coming later this summer and fall. The first version of Windows MIDI Services for musicians will be out at the end of the year. That release will focus on the basics of MIDI 2.0. We’ll follow on with updates throughout 2024.
Q: What happens to all the MIDI 1.0 devices?
A: Microsoft, Apple, Linux (ALSA Project), and Google are all working together in the MIDI association to ensure that the adoption of MIDI 2.0 is as easy as possible for application and hardware developers, and musicians on our respective operating systems. Part of that is ensuring that MIDI 1.0 devices work seamlessly in this new MIDI 2.0 world.
On Windows, for the first release, class-compliant MIDI 1.0 devices will be visible to users of the new API and seamlessly integrated into that flow. After the first release is out and we’re satisfied with performance and stability, we’ll repoint the WinMM and WinRT MIDI 1.0 APIs (the APIs most apps use today) to the new service so they have access to the MIDI 2.0 devices in a MIDI 1.0 capacity, and also benefit from the multi-client features, virtual transports, and more. They won’t get MIDI 2.0 features like the additional resolution, but they will be up-leveled a bit, without breaking compatibility. When the MIDI Association members defined the MIDI 2.0 specification, we included rules for translating MIDI 2.0 protocol messages to and from MIDI 1.0 protocol messages, to ensure this works cleanly and preserves compatibility.
Over time, we’d expect new application development to use the new APIs to take advantage of all the new features in MIDI 2.0.
This series (based on the work of the OS API Working Group of the MIDI Association) focuses on configuring the USB descriptors to provide the best experience for your users. It shows you how to handle Group Terminal Blocks and Function Blocks, Multiple UMP Endpoints and compatibility with USB Hosts that can only handle USB MIDI 1.0, as well MIDI 1.0 Applications.
This guide assumes that the reader is familiar with the following specifications:
Universal MIDI Packet (UMP) Format and MIDI 2.0 Protocol v1.1
MIDI Capability Inquiry (MIDI-CI) v1.2
Universal Serial Bus Device Class Definition for MIDI Devices v2.0 (USB MIDI 2.0)
Planning your MIDI 2.0 Device
In MIDI 1.0 most Devices present an IN port and an OUT port and that is all that is required.
In MIDI 2.0 there are several factors to consider:
What are the details of your Device?
This includes the product name and other similar details.
How many functions does your Device have?
Initially think of functions as destinations and/or sources in your Device. For example a simple single channel mono synthesizer has a tone generator – this is one function. However this hardware Device may also have external MIDI IN/OUT Din ports – this could be classed as more functions. A Workstation may have many more functions. Note: Ultimately, these functions are represented by Function Blocks, which should drive your Group Terminal Block design. But for purposes of this article, we’ll cover only the USB descriptors, and the Group Terminal Blocks
How many channels are needed for each function?
With the ability to utilize more than 16 Channels a multitimbral tone generator may have 32 Channels (or indeed up to 256 channels!)
Do you want/need the user to access all 256 channels or just a subset?
For example maybe the tone generator can be accessed on any of the 256 Channels
How do you want these functions accessed when using MIDI 1.0?
This is explained in greater detail below.
What MIDI 2.0 features are used for this function?
MIDI-CI, MIDI 2.0 Protocol, JR Timestamps etc
Design of a simple Desktop Monosynth
Let’s imagine we have a simple single channel desktop monosynth. We want to use MIDI 2.0 Protocol where we can because the parameters (e.g. filter cutoff frequency) benefit from having more than 128 steps. While the MIDI 2.0 Protocol boasts a massive improvement in resolution and capabilities and allows us to future-proof the product, we also need to have MIDI 1.0 compatibility for both older OS’s and MIDI 1.0 Applications.
First, we start gathering the details of the synth. These values will be repeated into several different fields. They have been color-coded so you can easily refer to the source of information.
Detail
Value
String Rules
Manufacturer Name
“ACME Enterprises”
UTF16, Max Length: 254 bytes
Product Name
“ACMESynth”
UTF-8, Max Length: 98 bytes
Product Instance Id
“ABCD12345”
The Product Instance Id of a device is any
unique identifier the Device has. This may be
Microcontroller Id or a built in MAC address.
Please read Pete Brown’s excellent article on why this is critical.
ASCII, Max Length: 42 bytes
don’t include characters that are:
Less than or equal to 0x20
Greater than 0x7F
Equal to 0x2C (‘,’)
Protocol
MIDI 2.0 Protocol (with a fallback to MIDI 1.0 Protocol)
Function 1
Function 1 Name
“Monosynth”
UTF-8, Max Length: 98 bytes
Function 1 Channels Needed
1 Channel at a time used bidirectionally
String Values
The string values in this table will be used in USB descriptors, UMP messages, and MIDI-CI messages. Each of these systems have limitations that should be adhered to. The table above provides a set of rules that best suits all strings used in a new device.
USB String Descriptors use UNICODE UTF16LE encodings, not NULL-terminated up to 254 characters
UMP Endpoint Name Notification and Function Block Name Notification Messages are UTF-8 up to 98 characters
UMP Product Instance Id Notification Message is ASCII up to 42 characters.
It is recommended that Product Instance Id is used as the USB iSerial value. For compatibility with Windows it is suggested iSerial numbers don’t contain characters that are:
Less than or equal to 0x20 (‘ ‘)
Greater than 0x7F
Equal to 0x2C (‘,’)
USB Descriptors
In USB MIDI 1.0, devices can present a USB IN Data Endpoint and/or a USB OUT Data Endpoint with up to 16 virtual MIDI cables each. Note that USB IN and USB OUT refer to data direction from the point of view of the USB Host. Each virtual MIDI cable can be considered equivalent to a MIDI DIN jack with streaming MIDI 1.0 for up to 16 channels each. In USB MIDI 2.0, the device can present a single USB IN Data Endpoint and/or a single USB OUT Data Endpoint that represents a single Universal MIDI Packet (UMP) data stream. It is strongly recommended that an IN/OUT Data Endpoint pair is presented to create a bi-directional UMP Endpoint to fully take advantage of MIDI 2.0.
At this point we start building the USB Descriptors. Developers should ensure that the following fields are filled out with the information above.
When defining the USB descriptors we can see that this Device only needs to set-up a single Interface.
Note some USB details in this document use an id reference for a separate string descriptor. The strings are shown for brevity. If the value is omitted, the id should be set to 0, not to an entry with a blank string.
Detail
Product Detail Value
Id of String Descriptor Referenced Value
iManufacturer
Manufacturer Name
“ACME Enterprises”
iProduct
Product Name
“ACMESynth”
iSerialNumber
Product Instance Id
“ABCD12345”
iInterface
Model Name*
“ACMESynth”
*More complicated setups with multiple interfaces (and multiple UMP endpoints) will be discussed in a followup article. For a simple Device the iInterface and the iProduct can be the same.
MIDI 1.0 Class Specific Descriptors (on Alternate Setting 0)
A USB MIDI 2.0 Device should include a set of USB MIDI 1.0 Class Descriptors so that when it is plugged into a Host which does not understand MIDI 2.0, it can operate as a MIDI 1.0 Device.
When declaring MIDI 1.0 Class Specific Descriptors, you should provide a text string name for all Embedded MIDI Jacks.
Detail
Product Detail Value
Id of String Descriptor Referenced Value
iJack
Function 1 Name
“Monosynth”
Most Host MIDI 1.0 Class drivers do not collect information about the topology inside the MIDI Function, such as External MIDI Jacks or Elements.
MIDI 2.0 Descriptors (on Alternate Setting 1)
For the best compatibility on OS’s, each UMP Endpoint is represented by a single Interface. The Interface has an In and an Out USB Endpoint that represents a bidirectional UMP Endpoint.
Devices expose their functions and topology using Function Blocks regardless of transport. USB MIDI 2.0 has the additional requirement of Group Terminal Blocks which are declared in the Device descriptors and designed in consideration of the device’s Function Blocks.
Each USB Endpoint declares the Group Terminal Block Id’s used. The USB Device has a list of Group Terminal Block descriptors that match these Id’s.
In our example, the Monosynth function only uses one channel, so we only need to declare the use of one UMP Group. While there are different ways of declaring Group Terminal Blocks we will look at just one way first and revisit with different configurations with the pros and cons of each at another time.
Option 1: Declare a Single Group Terminal Block on Group 1 with a length of 1 Group
For simple Devices like our Monosynth that only connect over USB this may be the most straightforward way of connecting to a computer and provides the best backwards compatibility to MIDI 1.0 Applications.
The Group Terminal Block should have the following settings:
Detail
Value
String Rules
bGrpTrmBlkID
Block Id
1
bGrpTrmBlkType
Block Type
0x00 – bidirectional
nGroupTrm
Starting Group
0x00 – Group 1
nNumGroupTrm
Number of Groups Spanned
1
iBlockItem
Function 1 Name
Id of String Descriptor Referenced Value – “Monosynth”
bMIDIProtocol
Block Protocol*
0x11 (MIDI 2.0 Protocol)
USB Endpoints under the Interface should have the following values:
Detail
Value
String Rules
bNumGrpTrmBlock
Number of GTB’s
1
baAssoGrpTrmBlkID
Block Id
1
With the descriptors now defined, let’s observe the interaction with an OS that supports MIDI 2.0.
While MIDI 2.0 Protocol is declared in the Monosynth Group Terminal Block, a host Application may send MIDI 1.0 Channel Voice Message either intentionally or accidentally. In UMP 1.1 Stream Configuration messages may also be used to switch Protocols. To ensure the best compatibility with incoming messages a MIDI 2.0 Device supporting MIDI 2.0 Protocol should also handle and process MIDI 1.0 Channel Voice messages. We will discuss handling this in a follow up article.
OS’s That Support MIDI 2.0
Accessing MIDI 2.0 Devices in Software
MIDI 2.0 applications should, where possible, connect to the connection labelled “MIDI 2.0” (as seen below). MIDI 1.0 applications are generally only able to connect to the “Monosynth” connection and talk using MIDI 1.0 Protocol. The OS converts these MIDI 1.0 byte stream messages to UMP format between the Device and the application.
MAC OSX 14+
In Mac OSX 14+ (developer release) this looks like the following:
Hint: More detailed information can be seen in Mac OSX MIDI Studio by selecting List View.
Note: OSX has supported USB MIDI 2.0 since OSX 11. Prior to OSX 14 (developer release) only the “Monosynth” entity is shown.
Linux (6.5+)
In Linux (upcoming Kernel 6.5, ALSA 1.2.x+) this shows up as:
Android 13+
Android 13+ currently connects to the USB MIDI Interface and can use either the USB MIDI 1.0 function on Alternate Setting #0 or use the USB MIDI 2.0 function on Alternate Setting #1 on a per application basis. When apps call midiManager.getDevicesForTransport( MidiManager.TRANSPORT_UNIVERSAL_MIDI_PACKETS), they see the USB MIDI 2.0 device as a MIDI 2.0 device. If they call midiManager.getDevicesForTransport( MidiManager.TRANSPORT_MIDI_BYTE_STREAM), they see the device as a MIDI 1.0 device. A device can be opened as only one of the two modes at once.
In OS’s that don’t yet support MIDI 2.0, the USB MIDI 1.0 function may be loaded to expose MIDI 1.0 Ports as declared in the MIDI 1.0 Class Specific Descriptors (on Alternate Setting 0). Currently in Windows this looks like:
While in current versions of Linux this looks like:
Where to next…?
These USB settings form the beginnings of a USB MIDI 2.0 Device.
In the next part of this series we look at recommended UMP Endpoint messages and how Function Blocks interact with Group Terminal Blocks to extend the usability of MIDI 2.0. We will look at other options for having more functions in your Device and how best to support them.
The core specifications for MIDI 2.0 were adopted by the AMEI and The MIDI Association in January of 2020. Since that time the MIDI Association and its members have been developing tools and prototyping the first MIDI 2.0 products. As a result of our prototyping, we have improved and enhanced the specifications.
This article is simply a list of the steps that have led up to the release of a major update to the core MIDI 2.0 specifications in June 2023.
As computers have become central components in many MIDI systems, USB has become the most widely used protocol for transporting MIDI data. With the introduction of MIDI 2.0, the USB Implementers Forum’s USB MIDI 2.0 working group, headed by members o
Los Angeles, CA – June 1, 2022.The MIDI Association announced today the addition of MIDI 2.0 capabilities to the Automotive Audio Bus (A2B®) from Analog Devices, Inc. The technology was showcased at the MIDI Association booth #10300 at the NAMM show
MIDI Association announces global initiative by over 50 MIDI Association companies to prototype MIDI 2.0. The MIDI Association has released details of the ongoing, industry-wide initiative by over 50 MIDI Association companies to deve
November 1, 2022 – The Association of Musical Electronics Industries (AMEI), the organization that oversees the MIDI specification in Japan, has committed to funding the development of an open-source USB MIDI 2.0 Host Driver for Windows Operating Sys
All kinds of companies, all kinds of devices One of the things that has always made MIDI unique in the world of standards is that no one owns MIDI and the MIDI Associations (AMEI in Japan and The MIDI Association in the rest of the world) don’t sell anything. We (AMEI and The MIDI Association) get companies to volunteer their s…
Check out Pete Brown’s post on the Microsoft Dev blog for important updates on MIDI 2.0 Pete is not just the designated representative to the MIDI Association for Microsoft, he is also the current chair of our Executive Board and an incredible evangelist for MIDI and particularly for MIDI 2.0. Here are some of the topics …
This article is for companies looking to develop MIDI 2.0 products, both software developers and hardware manufacturers. If you are a MIDI user looking for the benefits of MIDI 2.0, go to this article, which is a more general overview of MIDI 2.0 fea
This article is to explain the benefits of MIDI 2.0 to people who use MIDI. If you are a MIDI developer looking for the technical details about MIDI 2.0, go to this article updated to reflect the major updates published to the core MIDI 2.0 specs in June 2023. MIDI 2.0 Overview Back in 1983, musical instrument companies that c…
This article is to explain the benefits of MIDI 2.0 to people who use MIDI.
If you are a MIDI developer looking for the technical details about MIDI 2.0, go to this article updated to reflect the major updates published to the core MIDI 2.0 specs in June 2023.
The following movie explains the basics of MIDI 2.0 in simple language.
MIDI 2.0 Overview
Music is the universal language of human beings and MIDI is the universal digital language of music
Back in 1983, musical instrument companies that competed fiercely against one another nonetheless banded together to create a visionary specification—MIDI 1.0, the first universal Musical Instrument Digital Interface.
Nearly four decades on, it’s clear that MIDI was crafted so well that it has remained viable and relevant. Its ability to join computers, music, and the arts has become an essential part of live performance, recording, smartphones, and even stage lighting.
Now, MIDI 2.0 takes the specification even further, while retaining backward compatibility with the MIDI 1.0 gear and software already in use. MIDI 2.0 is the biggest advance in music technology in 4 decades. It offers many new features and improvements over MIDI 1.0, such as higher resolution, bidirectional communication, dynamic configuration, and enhanced expressiveness.
MIDI 2.0 Means Two-way MIDI Conversations
MIDI 1.0 messages went in one direction: from a transmitter to a receiver. MIDI 2.0 is bi-directional and changes MIDI from a monologue to a dialog. With the new MIDI-CI (Capability Inquiry) messages and UMP EndPoint Device Discovery Messages, MIDI 2.0 devices can talk to each other, and auto-configure themselves to work together.
They can also exchange information on functionality, which is key to backward compatibility—MIDI 2.0 gear can find out if a device doesn’t support MIDI 2.0, and then simply communicate using MIDI 1.0.
MIDI 2.0 Specs are mostly for MIDI developers, not MIDI users
If you are a MIDI user trying to read and make sense of many of the new MIDI 2.0 specs, MIDI 2.0 may seem really complicated.
Yes, it actually is more complicated because we have given hardware and software MIDI developers and operating system companies the ability to create bi-directional MIDI communications between devices and products.
MIDI 2.0 is much more like an API (application programming interface, a set of functions and procedures allowing the creation of applications that access the features or data of an operating system, application, or other service) than a simple one directional set of data messages like MIDI 1.0.
Just connect your MIDI gear exactly like you always have and then the operating systems, DAWs and MIDI applications take over and try to auto-configure themselves using MIDI 2.0.
If they can’t then they will work exactly like they do currently with MIDI 1.0.
If they do have mutual MIDI 2.0 features, then these auto-configuration mechanisms will work and set up your MIDI devices for you.
MIDI 2.0 works harder so you don’t have to.
Just Use MIDI
As you can see the only step that MIDI users really have to think about is Step 7 -Use MIDI
MIDI 2.0 expands MIDI to 256 Channels in 16 Groups so you will start to see applications and products that display Groups, but these are not so different than the 16 Ports in USB MIDI 1.0.
We have tried very hard to make it simple for MIDI users, but as any good developer will tell you – making it easy for users often makes more work for developers.
MIDI-CI Profile Configuration
At Music China 2023, there were a number of public presentations of recent MIDI specifications that the MIDI Association has been working on.
Joe Shang from Medeli who is on the MIDI Association Technical Standards board put it very well at the International MIDI Forum at Music China.
He said that with the recent updates published in June 2023, MIDI 2.0 had a strong skeleton, but now we need to put muscles on the bones. He also said that Profiles are the muscles we need to add.
He is right. This will be “The Year Of Profiles” for The MIDI Association.
We have now adopted 7 Profiles.
MIDI-CI Profile for General MIDI 2 (GM2 Function Block Profile)
MIDI-CI Profile for for General MIDI 2 Single Channel (GM2 Melody Channel)
MIDI-CI Profile for Drawbar Organ Single Channel
MIDI-CI Profile for Rotary Speaker Single Channel
MIDI-CI Profile for MPE (Multi Channel)
MIDI-CI Profile for Orchestral Articulation Single Channel
We also have completed the basic design of three more Profiles.
MIDI-CI Profile for Orchestral Articulation Single Channel
MIDI-CI Profile for Piano Single Channel
MIDI-CI Profile for Camera Control Single Channel
At Music China and at the meeting we had at the same time at Microsoft office in Redmond, MIDI Association and AMEI members were talking about the UDP Network transport specification that we are working on and the need to Profiles for all sorts of Effects ( Chorus, Reverb, Phaser, Distortion, etc.), Electronic Drums, Wind Controllers and DAW control.
The MIDI 2.0 overview defined a defined sets of rules for how a MIDI device sends or responds to a specific set of MIDI messages to achieve a specific purpose or suit a specific application.
Advanced MIDI users might be familiar with manually “mapping” all the controllers from one device to another device to make them talk to each other. Most MIDI users are familiar with MIDI Learn.
If 2 devices agree to use a common Profile, MIDI-CI Profile Configuration can auto-configure the mappings. Two devices learn what their common capabilities are and then can auto-configure themselves to respond correctly to a whole set of MIDI messages.
MIDI gear can now have Profiles that can dynamically configure a device for a particular use case. If a control surface queries a device with a “mixer” Profile, then the controls will map to faders, panpots, and other mixer parameters. But with a “drawbar organ” Profile, that same control surface can map its controls automatically to virtual drawbars and other keyboard parameters—or map to dimmers if the profile is a lighting controller. This saves setup time, improves workflow, and eliminates tedious manual programming.
Actually General MIDI was an example of what a Profile could do.
GM was a defined set of responses to set of MIDI messages. But GM was done before the advent of the bi-directional communication enabled by MIDI-CI.
So in the MIDI 1.0 world, you sent out a GM On message, but you never knew if the device on the other side could actually respond to the message. There was no dialog to establish a connection and negotiate capabilities.
But bi-directional commmunication allows for much better negotiation of capabilities (MIDI -CI stands for Capabilities Inquiry after all).
One of the important things about Profiles is that they can negotiate a set of features like the number of Channels a Profile wants to use. Some Profiles like the Piano Profile are Single Channel Profiles and get turned on and used on any single channel you want.
Let’s use the MPE Profile as an example. MPE works great, but it has no bi-directional communication for negotiation.
With MIDI 2.0 using a mechanism called the Profile Details Inquiry message, two products can agree that they want to be in MPE Mode, agree on the number of channels that both devices can support, the number of dimensions of control that both devices support (Pitch Bend, Channel Pressure and a third dimension of control) and even if both devices support high resolution bi-polar controllers. Bi-directional negotiation just makes things work better automatically.
Let’s consider MIDI pianos. Pianos have a lot of characteristics in common and we can control those characteristics by a common set of MIDI messages. MIDI messages used by all pianos include Note On/Off and Sustain Pedal.
But when we brought all the companies that made different kinds of piano products together (digital piano makers like Kawai, Korg and Roland, companies like Yamaha and Steinway that make MIDI controlled acoustic pianos and softsynth companies like Synthogy that makes Ivory), we realized that each company had different velocity and sustain pedal response curves.
We decided that if we all agreed on a Piano Profile with an industry standard velocity and pedal curve, it would greatly enhance interoperability.
Orchestral Articulation is another great example. There are plenty of great orchestral libraries, but each company uses different MIDI messages to switch articulations. Some companies use notes on the bottom of the keyboard and some use CC messages. So we came up with way to put the actual articulation messages right into the expanded fields in the MIDI 2.0 Note On message.
The following video has a demonstration of how Profile Configuration works.
The MIDI Association adopted the first Profile in 2022, the Default Control Change Mapping Profile.
Many MIDI devices are very flexible in configuration to allow a wide variety of interaction between devices in various applications. However, when 2 devices are configured differently, there can be a mismatch that reduces interoperability.
This Default Control Change Mapping Profile defines how devices can be set to a default state, aligned with core definitions of MIDI 1.0 and MIDI 2.0. In particular, devices with this Profile enabled have the assignment of Control Change message destinations/functions set to common, default definitions.
Because there were less than 128 controllers in MIDI 1.0, even the most commonly used could be reassigned to other functions.
Turning on this Profile sets commonly used controllers such as Volume (CC7), Pan (CC-10) , Sustain (CC64), Cutoff (CC 74), Attack (CC73), Decay (CC75), Release (CC72), Reverb Depth (CC91) to their intended assignment.
The video above included a very early prototype of the Drawbar Organ Profile and Rotary Speaker Profile.
We have just finished videos for Music China. Here are short videos for:
Property Exchange is a set of System Exclusive messages that devices can use discover, get, and set many properties of MIDI devices. The properties that can be exchanged include device configuration settings, a list of patches with names and other meta data, a list of controllers and their destinations, and much more.
Property Exchange can allow for devices to auto map controllers, choose programs by name, change state and also provide visual editors to DAW’s without any prior knowledge of the device or specially crafted software. This means that Devices could work on Windows, Mac, Linux, IOS and Web Browsers and may provide tighter integrations with DAW’s and hardware controllers.
Property Exchange uses JSON inside of the System Exclusive messages. JSON (JavaScript Object Notation) is a human readable format for exchanging data sets. The use of JSON expands MIDI with a whole new area of potential capabilities.
The MIDI Association has completed and published the following Property Exchange Resources.
Property_Exchange_Foundational_Resources
Property_Exchange_Mode_Resources
Property_Exchange_ProgramList_Resource
Property_Exchange_Channel_Resources
Property_Exchange_LocalOn_Resource
Property_Exchange_MaxSysex8Streams_Resource
Property_Exchange_Get_and_Set_Device_State
Property_Exchange_StateList
Property_Exchange_ExternalSync_Resource
Property_Exchange_Controller_Resources
One of the most interesting of these PE specifications is Get and Set Device State which allows for an Initiator to send or receive Device State, or in other words, to capture a snapshot which might be sent back to the Device at a later time.
The primary goal of this application of Property Exchange is to GET the current memory of a MIDI Device. This allows a Digital Audio Workstation (DAW) or other Initiator to store the State of a Responder Device between closing and opening of a project. Before a DAW closes a project, it performs the GET inquiry and the target Device sends a REPLY with all data necessary to restore the current State at a later time. When the DAW reopens a project, the target Device can be restored to its prior State by sending an Inquiry: Set Property Data Message.
Data included in each State is decided by the manufacturer but typically might include the following properties (not an exhaustive list):
Current Program
All Program Parameters
Mode: Single Patch, Multi, etc.
Current Active MIDI Channel(s)
Controller Mappings
Samples and other binary data
Effects
Output Assignments
Essentially this will allow hardware devices to have the same amount of recallability as soft synths when using a DAW.
There are a number of MIDI Association companies who are actively working on implementing this MIDI 2.0 Property Exchange Resource.
MIDI-CI Process Inquiry
Version 1.2 of MIDI-CI introduces a new category of MIDI-CI, Process Inquiry, which allows one device to discover the current values of supported MIDI Messages in another device including: System Messages, Channel Controller Messages and Note Data Messages
Here some use cases:
Query the current values of parameters which are settable by MIDI Controller messages.
Query to find out which Program is currently active
Query to find out the current song position of a sequence.
For Those Who Want To Go Deeper
In the previous version of this article, we provide some more technical details and we will retin them here for those who want to know more, but if you are satified with knowing what MIDI 2.0 can do for you, you can stop reading here.
MIDI Capability Inquiry (MIDI-CI) and UMP Discovery
To protect backwards compatibility in a MIDI environment with expanded features, devices need to confirm the capabilities of other connected devices. When 2 devices are connected to each other, they confirm each other’s capabilities before using expanded features. If both devices share support for the same expanded MIDI features they can agree to use those expanded MIDI features.
The additional capabilities that MIDI 2.0 brings to devices are enabled by MIDI-CI and by new UMP Device Discovery mechanisms.
New MIDI products that support MIDI-CI and UMP Discovery can be configured by devices communicating directly themselves. Users won’t have to spend as much time configuring the way products work together.
Both MIDI-CI and UMP Discovery share certain common features:
They separate older MIDI products from newer products with new capabilities and provides a mechanism for two MIDI devices to understand which new capabilities are supported.
They assume and require bidirectional communication. Once a bi-directional connection is established between devices, query and response messages define what capabilities each device has then negotiate or auto-configure to use those features that are common between the devices.
MIDI DATA FORMATS AND ADDRESSING
MIDI 1.0 BYTE STREAM DATA FORMAT
MIDI 1.0 originally defined a byte stream data format and a dedicated 5 pin DIN cable as the transport. When computers became part of the MIDI environment, various other transports were needed to carry the byte stream, including software connections between applications. What remained common at the heart of MIDI 1.0 was the byte stream data format.
The MIDI 1.0 Data Format defines the byte stream as a Status Byte followed by data bytes. Status bytes have the first bit set high. The number of data bytes is determined by the Status.
Addressing in MIDI 1.0 DATA FORMAT
The original MIDI 1.0 design had 16 channels. Back then synthesizers were analog synths with limited polyphony (4 to 6 Voices) that were only just starting to be controlled by microprocessors.
In MIDI 1.0 byte stream format, the value of the Status Byte of the message determines whether the message is a System Message or a Channel Voice Message. System Messages are addressed to the whole connection. Channel Voice Messages are addressed to any of 16 Channels.
Addressing in USB MIDI 1.0 DATA FORMAT
In 1999 when the USB MIDI 1.0 specification was adopted, USB added the concept of a multiple MIDI ports. You could have 16 ports each with its own 16 channels on a single USB connection.
The Universal MIDI Packet (UMP) Format
The Universal MIDI Packet (UMP) Format, introduced as part of MIDI 2.0, uses a packet-based data format instead of a byte stream. Packets can be 32 bits, 64 bits, 96 bits, or 128 bits in size.
This format, based on 32 bit words, is more friendly to modern processors and systems than the byte stream format of MIDI 1.0. It is well suited to transports and processing capabilities that are faster and more powerful than those when MIDI 1.0 was introduced in 1983.
More importantly, UMP can carry both MIDI 1.0 protocol and MIDI 2.0 protocol. It is called a Universal MIDI Packet because it handles both MIDI 1.0 and MIDI 2.0 and is planned to be used for all new transports defined by the MIDI Association including the already updated USB MIDI 2.0 specification and the Network Transport specification that we are currently working on.
Addressing in UMP FORMAT
The Universal MIDI Packet introduces an optional Group field for messages. Each Message Type is defined to be addressed with a Group or without a Group field (“Groupless”).
Channels, Groups and Groupless Messages in UMP
These mechanisms expand the addressing space beyond that of MIDI 1.0.
Groupless Messages are addressed to the whole connection. Other messages are addressed to a specific Group, either as a System message for that whole Group or to a specific Channel within that Group.
UMP continues this step by step expansion of MIDI capabilities while maintaining the ability to map back to MIDI products from 1983.
UMP carries 16 Groups of MIDI Messages, each Group containing an independent set of System Messages and 16 MIDI Channels. Therefore, a single connection using the Universal MIDI Packet carries up to 16 sets of System Messages and up to 256 Channels.
Each of the 16 Groups can carry either MIDI 1.0 Protocol or MIDI 2.0 Protocol. Therefore, a single connection can carry both protocols simultaneously. MIDI 1.0 Protocol and MIDI 2.0 Protocol messages cannot be mixed together within 1 Group.
Groups are slightly different than Ports, but for compatibility with legacy 5 PIN DIN, a single 16 channel Group in UMP can be easily mapped back to a 5 PIN DIN Port or to a Port in USB MIDI.
You will soon start to see applications which offer selection for Groups and Channels.
The newest specifications in June 2023 add the concept of Groupless Messages and Function Blocks.
Groupless Messages are used to discover details about a UMP Endpoint and its Function Blocks.
Some Groupless Messages are passed to operating systems and applications which use them to provide you with details of what functions exist in the MIDI products you have.
Now a MIDI Device can declare that Groups 1,2,3,and 4 are all used for a single function for 96 Channels (for example a mixer or a sequencer).
All of these decisions had to be made very carefully to ensure that everything would map back and work seamlessly with MIDI 1.0 products from 1983.
UMP Discovery
The UMP Format defines mechanisms for Devices to discover fundamental properties of other Devices to connect, communicate and address messages. Discoverable properties include:
1. Device Identifiers: Name, Manufacturer, Model, Version, and Product Instance Id (e.g. unique identifier).
2. Data Formats Supported: Version of UMP Format (necessary for expansion in the future), MIDI Protocols, and whether Jitter Reduction Timestamps can be used.
3. Device Topology: including which Groups are currently valid for transmitting and receiving messages and which Groups are available for MIDI-CI transactions.
These properties can be used for Devices to auto-configure through bidirectional transactions, thereby enabling the best connectivity between the Devices. These properties can also provide useful information to users for manual configuration.
UMP handles both MIDI 1.0 and MIDI 2.0 Protocols
A MIDI Protocol is the language of MIDI, or the set of messages that MIDI uses. Architectural concepts and semantics from MIDI 1.0 are the same in the MIDI 2.0 Protocol. Compatibility for translation to/from MIDI 1.0 Protocol is given high priority in the design of MIDI 2.0 Protocol.
In fact, Apple has used MIDI 2.0 as the core data format for Core MIDI with hi resolution 16 bit velocity and 32 bit controllers since the Monterey OS was released in 2021. So if you have an Apple computer or iOS device, you probably already have MIDI 2.0. in your operating system. Apple has taken care of detecting that when you plug in a MIDI 1.0 device, the Apple operating system translated MIDI 2.0 messages into MIDI 1.0 messages so you can just keep making music.
This seamless integration of MIDI 1.0 and MIDI 2.0 is the goal of the numerous implementations that have been released or are under development. Google has added MIDI 2.0 protocol to Android in Android 13, Analog Devices has added it to their A2B network. Open Source ALSA implementations for Linux and Microsoft Windows drivers/APIs are expected to be released later this year.
One of our main goals in the MIDI Association is to bring added possibilities to MIDI without breaking anything that already works and making sure that MIDI 1.0 devices work smoothly in a MIDI 2.0 environment.
The MIDI 1.0 Protocol and the MIDI 2.0 Protocol have many messages in common and messages that are identical in both protocols.
The MIDI 2.0 Protocol extends some MIDI 1.0 messages with higher resolution and new features. There are newly defined messages. Some can be used in both protocols and some are exclusive to the MIDI 2.0 Protocol.
New UMP messages allow one device to query what MIDI protocols another device supports and they can mutually agree to use a new protocol.
In some cases (the Apple example above is a good one), an operating system or an API might have additional means for discovering or selecting Protocols and JR Timestamps to fit the needs of a particular MIDI system.
MIDI 2.0 Protocol- Higher Resolution, More Controllers and Better Timing
The MIDI 2.0 Protocol uses the architecture of MIDI 1.0 Protocol to maintain backward compatibility and easy translation while offering expanded features.
Extends the data resolution for all Channel Voice Messages.
Makes some messages easier to use by aggregating combination messages into one atomic message.
Adds new properties for several Channel Voice Messages.
Adds several new Channel Voice Messages to provide increased Per-Note control and musical expression.
Adds New data messages include System Exclusive 8 and Mixed Data Set. The System Exclusive 8 message is very similar to MIDI 1.0 System Exclusive but with 8-bit data format. The Mixed Data Set Message is used to transfer large data sets, including non-MIDI data.
Keeps all System messages the same as in MIDI 1.0.
Expanded Resolution and Expanded Capabilities
This example of a MIDI 2.0 Protocol Note message shows the expansions beyond the MIDI 1.0 Protocol equivalent. The MIDI 2.0 Protocol Note On has higher resolution Velocity. The 2 new fields, Attribute Type and Attribute data field, provide space for additional data such as articulation or tuning details
Easier to Use: Registered Controllers (RPN) and Assignable Controllers (NRPN)
Creating and editing RPNs and NRPNs with MIDI 1.0 Protocol requires the use of compound messages. These can be confusing or difficult for both developers and users. MIDI 2.0 Protocol replaces RPN and NRPN compound messages with single messages. The new Registered Controllers and Assignable Controllers are much easier to use.
The MIDI 2.0 Protocol replaces RPN and NRPN with 16,384 Registered Controllers and 16,384 Assignable Controller that are as easy to use as Control Change messages.
Managing so many controllers might be cumbersome. Therefore, Registered Controllers are organized in 128 Banks, each Bank having 128 controllers. Assignable Controllers are also organized in 128 Banks, each Bank having 128 controllers.
Registered Controllers and Assignable Controllers support data values up to 32bits in resolution.
MIDI 2.0 Program Change Message
MIDI 2.0 Protocol combines the Program Change and Bank Select mechanism from MIDI 1.0 Protocol into one message. The MIDI 1.0 mechanism for selecting Banks and Programs requires sending three MIDI messages. MIDI 2.0 changes the mechanism by replicating the Banks Select and Program Change in one new MIDI 2.0 Program Change message. Banks and Programs in MIDI 2.0 translate directly to Banks and Programs in MIDI 1.0.
Built for the Future
MIDI 1.0 is not being replaced. Rather it is being extended and is expected to continue, well integrated with the new MIDI 2.0 environment. It is part of the Universal MIDI Packet, the fundamental MIDI data format.
In the meantime, MIDI 1.0 works really well. In fact, MIDI 2.0 is just more MIDI. As new features arrive on new instruments, they will work with existing devices and system. The same is true for the long list of other additions made to MIDI since 1983. MIDI 2.0 is just part of the evolution of MIDI that has gone on for 36 years. The step by step evolution continues.
Many MIDI devices will not need any of the new features of MIDI 2.0 in order to perform all their functions. Some devices will continue to use the MIDI 1.0 Protocol while using other extensions of MIDI 2.0, such as Profile Configuration, Property Exchange or Process Inquiry.
MIDI 2.0 is the result of a global, decade-long development effort.
Unlike MIDI 1.0, which was initially tied to a specific hardware implementation, a new Universal MIDI Packet format makes it easy to implement MIDI 2.0 on any digital transport. MIDI 2.0 already runs on USB, Analog Devices A2b Bus and we are working on an network transport spec.
To enable future applications that we can’t envision today, there’s ample space reserved for brand-new MIDI messages.
Further development of the MIDI specification, as well as safeguards to ensure future compatibility and growth, will continue to be managed by the MIDI Manufacturers Association working in close cooperation with the Association of Musical Electronics Industry (AMEI), the Japanese trade association that oversees the MIDI specification in Japan.
MIDI will continue to serve musicians, DJs, producers, educators, artists, and hobbyists—anyone who creates, performs, learns, and shares music and artistic works—in the decades to come.
MIDI 2.0 FAQs
We have been monitoring the comments on a number of websites and wanted to provide some FAQs about MIDI 2.0 as well as videos of some requested MIDI 2.0 features.
Will MIDI 2.0 devices need to use a new connector or cable?
No, MIDI 2.0 is a transport agnostic protocol.
Transport- To transfer or convey from one place to another
Agnostic- designed to be compatible with different devices
Protocol-a set of conventions governing the treatment and especially the formatting of data in an electronic communications system
That’s engineering speak for MIDI 2.0 is a set of messages and those messages are not tied to any particular cable or connector.
When MIDI first started it could only run over the classic 5 Pin DIN cable and the definition of that connector and how it was built was described in the MIDI 1.0 spec.
However soon the MIDI Manufacturers Association and Association of Music Electronic Industries defined how to run MIDI over many different cables and connectors.
So for many years, MIDI 1.0 has been a transport agnostic protocol..
MIDI 1.0 messages currently run over 5 PIN Din, serial ports, Tip Ring Sleeve 1/8″ cables, Firewire, Ethernet and USB transports.
Can MIDI 2.0 run over those different MIDI 1.0 transports now?
Yes, MIDI 2.0 products can use MIDI 1.0 protocol and even use 5 Pin DIN if they support the Automated Bi-Directional Communication of MIDI-CI and :
One or more Profiles controllable by MIDI-CI Profile Configuration messages.
Any Property Data exchange by MIDI-CI Property Exchange messages.
Any Process Inquiry exchange by MIDI-CI Process Inquiry messages.
However to run the Universal MIDI Packet and take advantage of MIDI 2.0 Voice Channel messages with expanded resolution, there needs to be new specifications written for each transport.
The new Universal Packet Format that will be common to all new transports defined by AMEI and The MIDI Associaton. The new Universal Packet contains both MIDI 1 .0 messages and MIDI 2.0 Voice Channel Messages plus some messages that can be used with both.
The most popular MIDI transport today is USB. The vast majority of MIDI products are connected to computers or hosts via USB.
The USB specification for MIDI 2.0 is the first transport specification completed, but we are working on a UMP Network Transport for Ethernet and Wireless Connectivity
Can MIDI 2.0 provide more reliable timing?
Yes. Products that support the new USB MIDI Version 2 UMP format can provide higher speed for better timing characteristics. More data can be sent between devices to greatly lessen the chances of data bottlenecks that might cause delays.
UMP format also provides optional “Jitter Reduction Timestamps”. These can be implemented for both MIDI 1.0 and MIDI 2.0 in UMP format.
With JR Timestamps, we can mark multiple Notes to play with identical timing. In fact, all MIDI messages can be tagged with precise timing information. This also applies to MIDI Clock messages which can gain more accurate timing.
Goals of JR Timestamps:
Capture a performance with accurate timing
Transmit MIDI message with accurate timing over a system that is subject to jitter
Does not depend on system-wide synchronization, master clock, or explicit clock synchronization between Sender and Receiver.
Note: There are two different sources of error for timing: Jitter (precision) and Latency (sync). The Jitter Reduction Timestamp mechanism only addresses the errors introduced by jitter. The problem of synchronization or time alignment across multiple devices in a system requires a measurement of latency. This is a complex problem and is not addressed by the JR Timestamping mechanism.
Also we have added Delta Time Stamps to the MIDI Clip File Specification.
Can MIDI 2.0 provide more resolution?
Yes, MIDI 1.0 Voice Channel messages are usually 7 bit (14 bit is possible by not so widely implemented because there are only 128 CC messages).
With MIDI 2.0 Voice Channel Messages velocity is 16 bit.
The 128 Control Change messages, 16,384 Registered Controllers, 16,384 Assignable Controllers, Poly and Channel Pressure, and Pitch Bend are all 32 bit resolution.
Can MIDI 2.0 make it easier to have microtonal control and different non-western scales?
Yes, MIDI 2.0 Voice Channel Messages allow Per Note precise control of the pitch of every note to better support non-western scales, arbitrary pitches, note retuning, dynamic pitch fluctuations or inflections, or to escape equal temperament when using the western 12 tone scale.
Check out Pete Brown’s post on the Microsoft Dev blog for important updates on MIDI 2.0
Pete is not just the designated representative to the MIDI Association for Microsoft, he is also the current chair of our Executive Board and an incredible evangelist for MIDI and particularly for MIDI 2.0.
Here are some of the topics he covers in his blog article targeted to developers.
Where the Standards are Today
The OS API Working Group
MIDI 2.0 Implementation Guide
Cross-company Cooperation and the Joint AMEI Meeting in Tokyo
MIDI 2.0 at the NAMM Show in Anaheim
Data Formats
Protocol vs Data Format
UMP Endpoint vs Port
Windows MIDI Services Update
If you develop MIDI products and applications for Windows, you will want to read the full article on the Microsoft dev blog, but to tantalize you a bit here is a graphic from Pete’s post.
One of the things that has always made MIDI unique in the world of standards is that no one owns MIDI and the MIDI Associations (AMEI in Japan and The MIDI Association in the rest of the world) don’t sell anything.
We (AMEI and The MIDI Association) get companies to volunteer their staff to work on really complex problems (like MIDI 2.0), work together to solve those problems and once those problems are solved, we give away the solutions and specifications for free so anyone can use them to make MIDI products.
MIDI is also unique because it enables all kinds of instruments – keyboards, drums, wind controllers, pad controllers, lights, and in fact anything that can be controlled digitally can be controlled by MIDI.
There really is no other standards that works quite the same way and it is what makes MIDI so very special.
MIDI 2.0 meeting in Japan March 27,28, 29, 2023
A great example of the collaboration is the meeting that happened in Japan recently.
All of the major OS companies gathered to talk about details of handling MIDI 2.0 in operating systems. We understand that people are waiting (some not so patiently) for MIDI 2.0, But there was one thing that was clear to both AMEI and The MIDI Association since the very beginning of discussions about MIDI 2.0- we couldn’t break MIDI 1.0!
The spirit of cooperation between these OS companies and musical instrument manufacturers was awe inspiring.
Companies set aside their differences and competitive natures to the goal of the meeting was to cooperate together for the greater benefit of musicians around the world.
In a remarkable coincidence, the presentation by the OS companies that was made at Audio Developer Conference 2022 was put up on Youtube by ADC on the second day of the meeting in Japan.
Audio Developer Conference 2022 video featuring Pete Brown, Phil Burk, Torrey Holbrook Walker & Mike Kent available
Engineers from Apple, Google, and Microsoft will present the current state of MIDI 2.0 implementations in their operating systems.
We’ll describe the API changes required for MIDI 2.0 for each platform as well as discuss the philosophy and reasoning behind various design decisions. We’ll also present the status of transports, such as USB and Ethernet.
If you’re a developer who is interested in the practical implementations of MIDI 2.0, this is the session for you.
Pete Brown
Pete works in the Windows + Devices org in Microsoft, primarily focusing on partners, apps, and technology for musicians. He’s the lead for the Windows MIDI Services project which is bringing an updated MIDI stack to Windows, and adding full MIDI 2.0 support.
He also serves as the current Chair of the Executive Board of the MIDI Association.
When not working, he enjoys synthesizers, electronics, woodworking, astrophotography, 3d Printing, and CNC projects at his home on the east coast of the US. _ Phil Burk Music and audio software developer. I
nterested in compositional tools and techniques, synthesis, and real-time performance on Android. Worked on HMSL, JForth, 3DO, PortAudio, JSyn, WebDrum, ListenUp, Sony PS3, Syntona, ME3000, Android MIDI, AAudio, Oboe and MIDI 2.0.
Torrey Holbrook Walker
I am a senior software framework engineer on the Core Audio team at Apple and a frequent MIDI specification contributor and prototyper with the MIDI Association. I have been passionate about creating music production technologies that delight audio software developers, musicians, and music producers over my 16-year career with Apple.
You should talk to me about:
– MIDI 2.0 software implementations or USB MIDI 2.0 hardware support.
– CoreMIDI APIs, USB MIDI, or BLE MIDI.
– The best food in London.
– Analog high-end audio and vinyl.
– Autechre, Aphex Twin, Squarepusher, and any wonky music with a shedload of bass.
Mike Kent
Mike Kent is the Co-Founder and Chief Strategy Officer of AmeNote Inc. Mike is a world leader in technology for musical instruments and professional audio/video.
Mike is the Chair of the MIDI 2.0 Working Group of the MIDI Association. He is a co-author of USB MIDI 1.0, the principal architect of USB MIDI 2.0, and Chair of the MIDI Working Group of the USB Implementers Forum.
The MIDI Association will be presenting two very important sessions at the Audio Developers Conference in 2022
There are two very important MIDI Association sessions for developers at ADC 2022 described below.
Those sessions are important because since adopting the core MIDI 2.0 specifications in January of 2020, we have been working hard to develop the infrastructure necessary and then prototype those MIDI 2.0 specs.
During that process we discussed and agreed on some significant improvements to the core specifications that are in the final process of review and voting by the MIDI Association and AMEI.
Perhaps most obvious example is that one of the three P’s of Profiles Configuration, Property Exchange and Protocol Negotiation will change.
We plan to deprecate Profile Negotiation via MIDI-CI in favor of a simpler method accomplished by a new UMP message.
But there are still three P’s because we created a new P called Process Inquiry.
As the MIDI Association, we share with AMEI the awesome responsibility of advancing MIDI while maintaining compatibility with MIDI products made all the back in 1983. So we are sure that everyone appreciates that we need to take the time to test things completely before releasing MIDI 2.0 products.
We will be sharing an overview of those changes both at ADC and in this core MIDI 2.0 article.
MIDI 2.0 extends MIDI in many ways: more channels, higher resolution, jitter reduction, auto-configuration via bidirectional transactions.
Core members of the MIDI Association present an overview of the available tools for developing, debugging, and deploying MIDI 2.0 products.
A number of tools have been developed to jump-start prototyping and validation of UMP functions and fuel the transition to MIDI 2.0. These tools include software applications for implementing and debugging UMP software and hardware, and testing MIDI-CI implementations. All tools will be shown in action and basic usage will be explained.
Moderated by Florian Bomers (MIDI 2.0 Ethernet Transport WG Chair) and other MIDI Association members
Engineers from Apple, Google, and Microsoft will present the current state of MIDI 2.0 implementations in their operating systems. We’ll describe the API changes required for MIDI 2.0 for each platform as well as discuss the philosophy and reasoning behind various design decisions. We’ll also present the status of transports, such as USB and Ethernet. If you’re a developer who is interested in the practical implementations of MIDI 2.0, this is the session for you.
Moderated by Mike Kent (MIDI 2.0 WG Chair) and other MIDI Association members including Apple, Google and Microsoft
Mike Kent
Mike Kent Chief Strategy Officer, AmeNote Inc.
Mike Kent is the Co-Founder and Chief Strategy Officer of AmeNote Inc. Mike is a world leader in technology for musical instruments and professional audio/video. Mike is the Chair of the MIDI 2.0 Working Group of the MIDI Association. He is a co-author of USB MIDI 1.0, the principal architect of USB MIDI 2.0, and Chair of the MIDI Working Group of the USB Implementers Forum.
Pete Brown
Pete Brown Principal Software Engineer, Windows, Microsoft
Pete works in the Windows + Devices org in Microsoft, primarily focusing on partners, apps, and technology for musicians. He’s the lead for the Windows MIDI Services project which is bringing an updated MIDI stack to Windows, and adding full MIDI 2.0 support.
He’s also serves as the current Chair of the Executive Board of the MIDI Association.
When not working, he enjoys synthesizers, electronics, woodworking, astrophotography, 3d Printing, and CNC projects at his home on the east coast of the US.
Phil Burk
Phil Burk Staff Software Engineer, Google Inc
Music and audio software developer. Interested in compositional tools and techniques, synthesis, and real-time performance on Android. Worked on HMSL, JForth, 3DO, PortAudio, JSyn, WebDrum, ListenUp, Sony PS3, Syntona, ME3000, Android MIDI, AAudio, Oboe and MIDI 2.0.
Torrey Holbrook Walker
Torrey Holbrook Walker Audio/MIDI Framework Engineer, Apple Inc.
I am a senior software framework engineer on the Core Audio team at Apple and a frequent MIDI specification contributor and prototyper with the MIDI Association. I have been passionate about creating music production technologies that delight audio software developers, musicians, and music producers over my 16-year career with Apple
You should talk to me about: – MIDI 2.0 software implementations or USB MIDI 2.0 hardware support. – CoreMIDI APIs, USB MIDI, or BLE MIDI. – The best food in London. – Analog high-end audio and vinyl. – Autechre, Aphex Twin, Squarepusher, and any wonky music with a shedload of bass.
What’s happening with MIDI 2.0?
The MIDI Association adopted MIDI 2.0 at the January 2020 Winter NAMM show.
We had worked over 4 years in developing and editing those core specifications.
Then a few weeks after the 2020 NAMM show a global pandemic struck and affected everything.
How did the pandemic affect MIDI 2.0? The pandemic was as disruptive to MIDI 2.0 as it was to everything else.
Although the sales of MIDI products of all types actually increased significantly during the pandemic as people stuck in their homes took refuge and solace in playing music, overall it did slow MIDI 2.0 progress. Because of supply chain issues many companies were forced to re-design current products and planned products on their roadmaps to use different microprocessors. So instead of working on new things that were redesigning current models.
The MIDI Association has been meeting virtually for several years on the MIDIable collaboration platform developed by Lawrence Levine, (one of our Exec Board members), but the pandemic made it impossible to hold face to face meetings or plugfests.
The MIDI Association faced the problem that all the work we had done on developing the initial specs for MIDI 2.0 was done strictly from a theoretical point of view.
No transports existed that could send the Universal MIDI Packet (UMP), no operating systems that supported UMP and no devices that either supported UMP or MIDI-CI.
Look at the answers Mike Kent and Pete Brown recently posted on a popular blog site.
How do you prototype something that doesn’t exist?
So how do you prototype something that doesn’t exist.
We needed 4 things to prototype MIDI 2.0 completely.
Transports that support the Universal MIDI Packet (UMP)
Hardware Devices that support MIDI-CI specifications over current MIDI 1.0 transports
Operating Systems that support both UMP and have MIDI 2.0 APIs
Hardware Devices that support UMP and MIDI-CI
USB MIDI 2.0 -the first UMP Transport
The first step was to create a transport specification that could run the Universal MIDI Packet because even after that transport spec was create and adopted, operating systems would have to develop class compliant drivers and driver development takes time.
USB Implementers Forum, Inc. (USB-IF) is a non-profit corporation founded by the group of companies that developed the Universal Serial Bus specification. USB has its own set of rules, IP policies and bylaws. Fortunately there were a group of MIDI Association companies who were also USB-IF members. So a number of companies including Apple, Focusrite. Native Instruments, Roland and Yamaha worked in the USB-IF to development the USB Class Definition for MIDI Devices v2.0.
In June of 2020, the USB Class Definition for MIDI Devices v2.0 was adopted by the USB-IF which meant operating systems could start developing Class Compliant drivers and APIs.
As computers have become central components in many MIDI systems, USB has become the most widely used protocol for transporting MIDI data. With the introduction of MIDI 2.0, the USB Implementers Forum’s USB MIDI 2.0 working group, headed by members o
The Groovesizer TB2 – The First Open Source MIDI 2.0 Synth
TB2 Groovesizer Open Source Synth
Groovesizers are kit-built DIY sequencers and synths. They’re open-source instruments, which means firmware for the Groovesizers can be freely examined, shared and changed in the beginner friendly Arduino IDE.
by Groovesizer
Andrew Mee, head of the MIDI 2.0 Prototyping Working group found an interesting Open Source Synthesizer, the TB2 Groovesizer.
With the Quartet firmware, the TB2 is a 4 voice paraphonic wavetable synth shield for the Arduino Due development board. The TB2 features 2 oscillators per voice, an ADSR envelope, LFO, digital filter, arpeggiator, as well as a 16-step sequencer.
For sound generation, the TB2 makes use of the pair of 12-bit DACs built into the Arduino Due’s 32 bit ARM processor. The TB2 uses an SD card for storing patches and sequences, and it also allows the user to load single cycle waveshapes for the two oscillators and the LFO.
The MIDI Association reached out to Jean Marais, a South African living in Taiwan. Jean graciously agreed to make some TB2’s specifically for the MIDI Association and we sent TB2s outo some of our members so they could start prototyping MIDI 2.0.
The Groovesizer only has a 5 PIn DIN MIDI In and a 5 PIn DIN Out. So how can it be a MIDI 2.0 device? MIDI 2.0 is defined in the specifications as something that can establish bi-directional MIDI connectivity that allows two devices to connect to each other and query their capabilities (MIDI Capability Inquiry) and auto configure themselves.
So MIDI-CI Profile Configuration and MIDI-CI Property Exchange can be done on any MIDI 1.0 transports because the device discovery is done using MIDI 1.0 Universal SysEx Messages.
MIDI 2.0 Operating System Support
Apple, Google and Microsoft are all MIDI Association members.
In fact, Torrey Holbrook Walker from Apple and Phil Burk from Google are both former MIDI Association Executive Board Members and Pete Brown from Microsoft is the current Chair of the Executive Board.
We recently put out a press release for AMEI (Association of Music Electronics Industries), our partner in Japan in developing MIDI specifications that made an announcement about AMEI’s plans to support an Open Source driver for Microsoft and reviewed the current situation with Apple, Google and Linux.
The Association of Musical Electronics Industries (AMEI), the organization that oversees the MIDI specification in Japan, has committed to funding the development of an open-source USB MIDI 2.0 Host Driver for Windows Operating Systems under a memorandum of understanding between AMEI, AmeNote Inc, and Microsoft.
MIDI 2.0 is a global industry-wide effort. The MIDI Association (TMA), is the organization that oversees the MIDI specification in all other areas of the world besides Japan. TMA recently funded AmeNote’s development of the ProtoZOA, a USB MIDI 2.0 prototyping board that software developers can use to test with their MIDI 2.0 applications.
AmeNote’s plans to release large parts of the ProtoZOA firmware as open-source code. So, all hardware developers can utilize that code and incorporate it in their own MIDI 2.0 devices.
TMA members Apple and Google have already announced and released their support for MIDI 2.0. A number of AMEI members and TMA members have developed MIDI 2.0 compliance and testing tools that they plan to release for free public download on GitHub.
AMEI and TMA have also recently engaged with members of the ALSA community about the development of open-source drivers and APIs for the Linux platform. These new developments regarding Microsoft and Linux signal a further step in the development of the MIDI 2.0 ecosystem. They also highlight the continuing cooperative efforts of AMEI and TMA to work together to provide free MIDI 2.0 resources(tools/applications) and open source code to make the development of MIDI 2.0 products easier for companies of all sizes.
November 1, 2022 – The Association of Musical Electronics Industries (AMEI), the organization that oversees the MIDI specification in Japan, has committed to funding the development of an open-source USB MIDI 2.0 Host Driver for Windows Operating Sys
To accelerate MIDI 2.0 development, the MIDI Association has helped fund ProtoZOA’s technical development and donated ProtoZOAs and TB2 Groovesizers at no charge to any MIDI Association member who wanted to join the prototyping effort. These tools work together for prototyping and testing foundational MIDI 2.0 features such as the new Universal MIDI Packet, MIDI-CI Discovery, Profile Configuration, Property Exchange, USB MIDI 2.0, and MIDI 1.0 to 2.0 Translation.
With these advances, companies around the world now have the software and hardware tools needed to build, test, and ensure the compatibility of their MIDI 2.0 products.
Amenote developed the ProtoZOA using Raspberry PICO CPUs because they are openly accessible and extremely affordable.
ProtoZOA is a USB MIDI 2.0 device that software developers can use to test with their MIDI 2.0 applications and its firmware provides source code that hardware developers can incorporate in their own MIDI 2.0 devices. MIDI Association members are currently helping to test, and optimize the ProtoZOA code.
Jean Baptiste Thiebaut- MIDI Association Exec Board
If you are attending ADC in person, there are lots of MIDI Association members who will be at ADC. Also on top the presenters listed below, we arranged to have Jean Baptiste (JB) Thibeaut (MIDI Association Exec Board member and co-founder of the MIDI Innovation Awards) attend. JB is CEO of Music Hackspace now, but when he worked for ROLI he actually ran Audio Developers conference for many years. Just look for the MIDI Association poster in the poster area and JB is happy to give you details about why now is a great time to join the MIDI Association.
If you are attending ADC virtually, Athan Billias, MIDI Association President is attending virtually. Here is an image of his booth schedule for ADC and it also gives you a peek at what a typical week for the MIDI Association looks like.
As you can see, we are working hard every week to bring the promise of MIDI 2.0 to the world.
Times on the far left are London time and next to them is Pacific.
November 1, 2022 – The Association of Musical Electronics Industries (AMEI), the organization that oversees the MIDI specification in Japan, has committed to funding the development of an open-source USB MIDI 2.0 Host Driver for Windows Operating Systems under a memorandum of understanding between AMEI, AmeNote Inc, and Microsoft.
AMEI is underwriting the cost and has engaged AmeNote Inc. to develop the driver because of AmeNote’s extensive experience in MIDI 2.0 and USB development. In addition, concurrent to this, Microsoft has also agreed to start development of a Windows standard open-source MIDI 2.0 API. The driver and API will be developed in accordance with Microsoft’s quality control standards, and will be managed as a permissively licensed (MIT license) Microsoft open-source project. As a result, anyone can participate in the development as an open-source contributor in the future, or use the code in their own devices or operating systems. Because of this open source arrangement, continuous and timely improvements and enhancements to the USB MIDI 2.0 Host driver and MIDI 2.0 API are expected. Development is currently underway with the goal of completing the development in 2023.
MIDI 2.0 is a global industry-wide effort. The MIDI Association (TMA), is the organization that oversees the MIDI specification in all other areas of the world besides Japan. TMA recently funded AmeNote’s development of the ProtoZOA, a USB MIDI 2.0 prototyping board that software developers can use to test with their MIDI 2.0 applications.
AmeNote’s plans to release large parts of the ProtoZOA firmware as open-source code. So, all hardware developers can utilize that code and incorporate it in their own MIDI 2.0 devices.
TMA members Apple and Google have already announced and released their support for MIDI 2.0. A number of AMEI members and TMA members have developed MIDI 2.0 compliance and testing tools that they plan to release for free public download on GitHub.
AMEI and TMA have also recently engaged with members of the ALSA community about the development of open-source drivers and APIs for the Linux platform. These new developments regarding Microsoft and Linux signal a further step in the development of the MIDI 2.0 ecosystem. They also highlight the continuing cooperative efforts of AMEI and TMA to work together to provide free MIDI 2.0 resources(tools/applications) and open source code to make the development of MIDI 2.0 products easier for companies of all sizes.
About MIDI 2.0: AMEI and TMA released the MIDI 2.0 Core Standards on February 25, 2020. Subsequently, in June 2020, the USB-IF, a management organization for USB technology, released the USB MIDI 2.0 standard, a communication standard for connecting MIDI 2.0 devices.
Currently, AMEI and TMA are working together on joint prototyping and some major updates to the core MIDI specifications in order to bring MIDI 2.0 devices to market as soon as possible.
MIDI Association announces global initiative by over 50 MIDI Association companies to prototype MIDI 2.0.
The MIDI Association has released details of the ongoing, industry-wide initiative by over 50 MIDI Association companies to develop MIDI 2.0 products and services. Despite the challenges presented by the pandemic, MIDI Association members persevered, and have addressed these challenges through global collaboration and cooperation.
Yamaha Corporation has funded the development of the MIDI Workbench, a software tool for MIDI 2.0 testing and compliance developed by Australian Andrew Mee.
MIDI Workbench MIDI 2.0 testing and compliance tool
The MIDI Workbench MIDI 2.0 is a Standalone Electron Application for complete MIDI 2.0 environment. This workbench uses UMP internally and translates MIDI 1.0 (including MPE) to and from MIDI 2.0.
Mee has also updated firmware for the TB2 Groovesizer, an Open Source MIDI 2.0 hardware synthesizer developed by Jean Marais, a South African living in Taiwan.
With the Quartet firmware, the TB2 is a 4 voice paraphonic wavetable synth shield for the Arduino Due development board.
The TB2 features 2 oscillators per voice, an ADSR envelope, LFO, digital filter, arpeggiator, as well as a 16-step sequencer.For sound generation, the TB2 makes use of the pair of 12-bit DACs built into the Arduino Due’s 32 bit ARM processor.
The TB2 uses an SD card for storing patches and sequences, and it also allows the user to load single cycle waveshapes for the two oscillators and the LFO. The Groovesizer only has a 5 PIn DIN MIDI In and a 5 PIn DIN Out.
So how can it be a MIDI 2.0 device? MIDI 2.0 is defined in the specifications as something that can establish bi-directional MIDI connectivity that allows two devices to connect to each other and query their capabilities (MIDI Capability Inquiry) and auto configure themselves. So MIDI-CI Profile Configuration and MIDI-CI Property Exchange can be done on any MIDI 1.0 transports because the device discovery is done using MIDI 1.0 Universal SysEx Messages.
Canadian-based company AmeNote, founded by industry veterans Mike Kent (Chair of the MIDI 2.0 Working Group) and Micheal Loh (founder of iConnectivity) has designed ProtoZOA, a flexible Raspberry Pico based prototyping tool for MIDI 2.0.
To accelerate MIDI 2.0 development, the MIDI Association has helped fund ProtoZOA’s technical development and donated ProtoZOAs and TB2 Groovesizers at no charge to any MIDI Association member who wanted to join the prototyping effort. These tools work together for prototyping and testing foundational MIDI 2.0 features such as the new Universal MIDI Packet, MIDI-CI Discovery, Profile Configuration, Property Exchange, USB MIDI 2.0, and MIDI 1.0 to 2.0 Translation.
With these advances, companies around the world now have the software and hardware tools needed to build, test, and ensure the compatibility of their MIDI 2.0 products.
Amenote developed the ProtoZOA using Raspberry PICO CPUs because they are openly accessible and extremely affordable.
ProtoZOA is a USB MIDI 2.0 device that software developers can use to test with their MIDI 2.0 applications and its firmware provides source code that hardware developers can incorporate in their own MIDI 2.0 devices. MIDI Association members are currently helping to test, and optimize the ProtoZOA code.
“Our plan is to release most of the ProtoZOA source code as Open Source with a permissive license. That will allow even non-MIDI Association members to use the code to develop MIDI 2.0 products.”
by Mike Kent from AmeNote and Chair of the MIDI 2.0 Working Group
With a hardware and software foundation for MIDI 2.0 development in place, companies can move forward to take advantage of the protocol’s advanced features—as well as maintain full backward compatibility with existing MIDI 1.0 gear.
“These MIDI 2.0 prototyping efforts highlight what is truly unique about the MIDI Association.
Since MIDI’s genesis, companies that are traditionally fierce competitors have chosen cooperation as the best way to solve difficult problems—and to contribute those solutions at no charge back to the global community, for the benefit of musicians, artists, and engineers everywhere.”
The MIDI Association announced today the addition of MIDI 2.0 capabilities to the Automotive Audio Bus (A2B®) from Analog Devices, Inc. The technology was showcased at the MIDI Association booth #10300 at the NAMM show in Anaheim, California on June 3-5, 2022.
A2B® is a high bandwidth, bidirectional, digital audio bus capable of distributing 32 channels of audio and MIDI control data together with clock and power over a single, unshielded twisted-pair wire. The technology enables the development of advanced, feature-rich and cost-effective audio and MIDI LAN systems in a variety of musical instrument and pro audio applications.
“We see many opportunities for the extension of Analog Device’s A2B® into musical instrument and pro audio applications, particularly for guitar effects, electronic drums, digital keyboards and small format audio mixers,” said David Dashefsky, Director for Strategic Marketing and Systems in the Consumer Business Unit at Analog Devices. “MIDI 2.0 and ADI’s A2B® digital audio bus now allow your whole band to connect together with multi-channel digital audio over low-cost cables, or inexpensively connect modular systems like guitar pedals or electronic drum kits”
MIDI (Musical Instrument Digital Interface) is the industry standard developed to connect digital musical instruments to each other, as well as to computers, tablets and smartphones. MIDI 2.0 is a significant upgrade to the original MIDI 1.0 specification adopted in 1983 and makes MIDI more expressive and easier to use by changing MIDI from a monolog to a dialog and allowing MIDI devices to discover shared capabilities and auto configure themselves. A2B® will support both MIDI 1.0 and MIDI 2.0 devices and provide backward compatibility/translation where necessary.
“Combining the multi-channel audio networking capabilities of the Analog Devices A2B® with MIDI’s expressive musical control creates a brand-new technology platform for the musical instrument and pro audio industry,” said Athan Billias, President of the MIDI Association. “This inexpensive platform to connect multiple digital instruments together is a big boon to designers of musical instrument and pro audio applications.”
At the June 2022 NAMM show in Anaheim, the MIDI Association showcased the A2B technology using the ProtoZOA USB MIDI 2.0 prototyping and testing tool developed by Amenote Inc.
The Amenote ProtoZOA USB MIDI 2.0 Prototyping Board connected to an Analog Devices A2B module at June NAMM 2022
A lot of FX pedals are digital these days, yet each pedal has an analog to digital convertor on one side that converts the analog signal in to digital, the signal gets processed and then on the other side of the pedal is a digital to analog converter that converts the signal back to analog again. Digital keyboards, electronic drums and almost all digital musical instruments work the same way. A2B® with MIDI 2.0 eliminates the need for all that A/D and D/A conversion by providing a low cost digital audio network with MIDI control protocol. It solves a fundamental problem that has existed since the early 1980s when digital musical instruments and FX first became possible.
by Athan Billias, President of the MIDI Association
Athan Billias, Pat Scandalis, Mike Kent and Pravin Angolkar discuss MIDI 2.0 over A2B at A3E
Dolby featured a car with Dolby Atmos in their NAMM booth. The worlds of Autos and Audio are truly colliding.
Autonomous vehicles will make it possible to have recording studios on wheels
Los Angeles CA, May 1, 2022 – The MIDI Association announces the release of an update (v1.1) to the MIDI Polyphonic Expression (MPE) (v1.0, January 2018) specification.
In March of 2021, the MIDI Association’s MPE Working Group reconvened to evaluate the current MPE specification and create an editorial revision. The working group has gone over the MPE v1.0 specification with the goal of making it clearer and easier to adopt. No technical design changes were made while every point of confusion or misinterpretation we’ve encountered over the past few years has been addressed. All the implementation rules are now gathered together into section 2 “Detailed Specification”. Further, the best practices and appendices have been elaborated to provide greater detail and examples.
The next step for the MPE Subcommittee is to create a MIDI 2.0 MIDI-CI Profile for MPE, taking advantage of MIDI-CI to enable auto-configuration between MPE senders and receivers, with a goal to complete this work in 2022.
MIDI Polyphonic Expression (MPE) makes it possible for artists to perform independent gestures for each musical note, with up to three dimensions of expression. Without MPE, expressive gestures on synthesizers—such as pitch bending or adding vibrato—affected all notes being played. With MPE, every note a musician plays can be articulated individually for much greater expressiveness. At the present time over one hundred DAWs, Synthesizers and Controllers support MPE.
The working group also consulted with a variety of other hardware manufacturers, plugin developers and DAW vendors to make sure their input was reflected into the updated specification.
The new specification is already available for download on the MIDI.org website.
From the fountains at the Bellagio to Beethoven’s 10th Symphony, MIDI has been powering live music and immersive experiences for nearly 40 years. In this week’s episode, Tristra Newyear Yeager sits down with Athan Billias and Brett Porter from the MIDI association to explore the latest innovations in MIDI 2.0.
Learn more about the MIDI Association, a cross industry coalition of MIDI makers and innovators working to bring the MIDI protocol to over 2.5 billion devices around the world. Discover how artists, producers, DJs, educators, and more are using the Musical Instrument Digital Interface, or MIDI, in new ways. Find out how the MIDI Association is partnering with companies like Artiphon to create Orbacam, the latest MIDI powered app allowing users to create music directly in videos. What’s next for MIDI? Find out in this week’s episode!
From the fountains at the Bellagio to Beethoven’s 10th Symphony, MIDI has been powering live music and immersive experiences for nearly 40 years. In this week’s episode, Tristra Newyear Yeager sits down with Athan Ballias and Brett Porter from the MIDI association to explore the latest innovations in MIDI 2.0. Learn more about the MIDI Association, a cross industry coalition of MIDI makers and innovators working to bring the MIDI protocol to over 2.5 billion devices around the world. Discover ho
MIDI 2.0 — What’s New and How it Will Affect the Way We Work
Join Jennifer Hruska as she moderates a discussion with leading experts about this major update to the MIDI specification. The original specification was released in 1983 and for 35 years remained at version 1.0. It has literally revolutionised the way in which electronic instruments and other devices are controlled. The new revision is completely backward compatible and codifies many of the technical developments manufacturers have introduced in recent years. This session provides an overview of MIDI 2.0 and examines the implications for users and the industry.
Dezeen names top rebrands of 2021 and lists Facebook’s Meta, Volvo and the Whitehouse along with MIDI 2.0
Dezeen is the world’s most popular and influential architecture, interiors and design magazine, with over three million monthly readers and six million social media followers.
Pentagram makes this list again with its brand identity for Musical Instrument Digital Interface (MIDI), the global standard that allows digital musical instruments to talk to each other.
Yuri Suzuki, a musician and Pentagram partner, worked with the graphic designer and partner Sascha Lobe on the update. The logo, which looks like an abstract letter M, replaces its previous wordmark and follows the 2020 release of MIDI 2.0, the first major update of the standard in over 35 years.
by Dezeen
For more information, check out the full articles at the links below.
Geert was instrumental in getting MPE standardized
Geert currently works at Moog as a product manager and software engineer, but he was at the center of the MPE revolution and helped develop firmware for several key MPE products including the Roger Linn LinnStrument and the Eigenharp. The whole Gaz Williams show is 2 hours, but we jumped right to the section where Geert gives a concise explanation of MPE and then talks about the current MPE work we are doing in the MIDI Association.
Pat Scandalis from Geoshred heads up the current MIDI Association MPE working group
The MPE working group is doing editorial revisions the current MPE spec to make it easier to understand and implement and then will work on taking that current spec and adding MIDI-CI Profile capabilities to it to ensure greater interoperability between MPE devices.
As Geert said in many ways, MPE is the gateway to MIDI 2.0.
Join members of the MIDI Association Technical Standards Board and MIDI 2.0 working group chairs for an in-depth look at all the MIDI 2.0 specifications under development
As you can see from the table above, there is a lot of technical standards activity in The MIDI Association’s working groups.
The MIDI 2.0 Working Group handles all the Profiles, Property Exchange and Protocol Message discussions. We have started work on a completely new branch of MIDI 2.0 (adding to the “Three P’s” of Profiles Configuration, Property Exchange and Protocol Negotiation) which is currently called MIDI Implementation Discovery. This new branch of MIDI 2.0 has a lot of exciting possibilities.
There is a separate Transport Working Group which is currently focused on developing a network transport to add to the work already completed on USB.
The SMF2 Working Group is focused on developing a file format that includes MIDI 1.0, MIDI 2.0, notation, audio and other media in a single container.
Some of the Profiles Working Groups are self explanatory like Drawbar Organ, Piano, Rotary Speaker, etc.
One that may not be so apparent is the Orchestral Articulation profile. This is a new design that uses the Attribute Type and Attribute Data fields in the MIDI 2.0 Note On and Note Off to put articulation data directly into the MIDI Notes. There are many great orchestral libraries available, but they all have their own ways of selecting articulations so there is no standardization.
This new Orchestral Articulation Profile would allow different libraries to easily be used together by creating a clear, standardized table for articulations and including that information directly in a MIDI 2.0 Note on and Off. It would also allow writing a part for one instrument and easily switching to another while maintaining all the musically appropriate articulations.
Synth and Software’s Nick Batzdorf interviews the MIDI Association about MIDI 2.0, Orchestral Articulations and more! Check out this interview with MIDI Association Exec Board member Athan BIllias with Nick Batzdorf from Synth and Software
Developers wanting to learn how MIDI 2.0 works under the hood, and how to get started writing software for it right away
Overview of what participants will learn:
This workshop will provide developers with knowledge and code for starting MIDI 2.0 development. At first, the concepts of MIDI 2.0 are explained. Then, the participants will co-develop a first implementation of a MIDI-CI parser for robust device discovery, and for querying and offering profiles. For that, a stub workspace will be provided. Exercises will let the participants practice the newly learned concepts. Last, but not least, this workshop also includes automated testing as a tool to verify the implementation.
Brett is a member of the Executive Board of the MIDI Association, chair of the MIDI 2 Prototyping and Testing Working Group. He is based in the New York City area.
Florian Bömersa Founder, Bome software
Florian has been an active MIDI 2.0 working group member since its inception. He serves on the Technical Standards Board of the MIDI Association and chairs the MIDI 2.0 Transports Working Group. He is based in Munich, Germany.
This article is for companies looking to develop MIDI 2.0 products, both software developers and hardware manufacturers. If you are a MIDI user looking for the benefits of MIDI 2.0, go to this article, which is a more general overview of MIDI 2.0 features.
This article is to explain the benefits of MIDI 2.0 to people who use MIDI. If you are a MIDI developer looking for the technical details about MIDI 2.0, go to this article updated to reflect the major updates published to the core MIDI 2.0 specs in June 2023. MIDI 2.0 Overview Back in 1983, musical instrument companies that c…
Foundational specifications for MIDI 2.0 were released in February 2020, which allowed MIDI Association members, including Operating System companies to start actually implementing MIDI 2.0.
Since that time the MIDI Association and its members have been developing tools for and prototyping the first MIDI 2.0 products.
As a result, we have been improving and enhancing the specifications.
The MIDI Association and AMEI adopted the following notable specifications on May 29, 2023 and these are now the specifications that should be used as references for developing MIDI products.
If you previously downloaded MIDI 2.0 specifications, please download the latest revisions.
CURRENT CORE MIDI 2.0 SPECIFICATIONS
These core specifications define the architectural foundations for MIDI 2.0 and the MIDI 2.0 Specification overview and defines minimum requirements for devices to claim MIDI 2.0 compatibility and to apply to use the MIDI Association’s MIDI 2.0 logo.
M2-100-U MIDI 2.0 Specification Overview, Version 1.1 NEW
M2-101-UM MIDI Capability Inquiry (MIDI-CI), Version 1.2 NEW
M2-102-U Common Rules for MIDI-CI Profiles, Version 1.1 NEW
M2-103-UM Common Rules for Property Exchange, Version 1.1
M2-104-UM Universal MIDI Packet (UMP) Format and MIDI 2.0 Protocol, Version 1.1 NEW
M2-116-U MIDI Clip File (SMF2), Version 1.0 NEW
Documents labeled as NEW are notable updates released in June 2023.
There are numerous other MIDI 2.0 specifications which build on these core documents available for download and listed below.
NEW MIDI 2.0 Specification Overview- Version 1.1
The MIDI 2.0 Specification Overview outlines those documents which define the core architecture of MIDI 2.0 It also defines the Minimum Compatibility Requirements for MIDI 2.0
Summary of Minimum Compatibility Requirements for MIDI 2.0
(Updated June 2023)
Any Device which claims MIDI 2.0 compatibility shall implement either A or B, or both A and B:
A. MIDI-CI* to at least its minimum requirements, including discovery mechanisms, plus any one or more of the following features:
One or more Profiles controllable by MIDI-CI Profile Configuration messages.
Any Property Data exchange by MIDI-CI Property Exchange messages.
Any Process Inquiry exchange by MIDI-CI Process Inquiry messages.
B. The UMP Data Format** to at least its minimum requirements, including discovery mechanisms, plus any one or more of the following features:
MIDI 2.0 Channel Voice Messages as defined by the Universal MIDI Packet (UMP) Format and MIDI 2.0 Protocol.
Jitter Reduction Timestamps as defined by the Universal MIDI Packet (UMP) Format and MIDI 2.0 Protocol.
System Exclusive 8 as defined by the Universal MIDI Packet (UMP) Format and MIDI 2.0 Protocol.
Mixed Data Set as defined by the Universal MIDI Packet (UMP) Format and MIDI 2.0 Protocol.
NEW MIDI Capability Inquiry (MIDI-CI)- Version 1.2
MIDI Capability Inquiry (MIDI-CI) is a set of bidirectional mechanisms which allow devices to negotiate with each other for autoconfiguration. MIDI-CI also allows the expansion of MIDI with new features while protecting backward compatibility with MIDI Devices that do not understand these newly defined features.
Latest Notable Changes:
Adds Process Inquiry. Deprecates Protocol Negotiation (replaced by new Protocol Selection mechanisms in (UMP) Format and MIDI 2.0 Protocol) . Adds Function Blocks. Added Profile Details Inquiry. Added features for backward and forward compatibility through future update versions.
NEW Common Rules for MIDI-CI Profiles, Version 1.1
The Common Rules for Profiles complements MIDI-CI by defining a set of design rules for all Profile Specifications.
Latest Notable Changes:
Update to align with updates to MIDI-CI and UMP Format & MIDI 2.0 Protocol specifications. Added Profile Details Inquiry messages. Added Profile Added Report and Profile Removed Report messages. Added Function Block Profiles and made resulting adjustments to Profile Addresses.
Common Rules for Property Exchange, Version 1.1
The Common Rules for MIDI-CI Property Exchange, complements MIDI-CI by defining a set of design rules for all Property Exchange Resources and Properties.
Unchanged since 2020.
NEW Universal MIDI Packet (UMP) Format and MIDI 2.0 Protocol
The Universal MIDI Packet provides a standardized modern packet format for all MIDI messages, both MIDI 1.0 Protocol and MIDI 2.0 Protocol. This specification also defines messages in the MIDI 2.0 Protocol.
Latest Notable Changes:
Added the notion of Groupless messages. Some UMP Message Types are not sent to a specific Group. These messages are intended to be processed by the MIDI Endpoint.
Utility messages (Message Type 0x0) are now Groupless. Group field is changed to Reserved.
Added Section 6, Function Blocks.
A Device may have one or more Function Blocks. A Function Block is a single functional component or application that operates on a set of one or more Groups. Function Blocks are used to separate a Device’s functional components into manageable units. System Messages are also now sent to a Function Block instead of to each Group, reducing the need for multiple messages.
Added MIDI Endpoint Messages (Message Type 0xF)
These Groupless messages are used to discover details about a MIDI Endpoint and its Function Blocks. Discovery of Max System Exclusive 8 Messages has been moved to these messages.
Added Flex Data Messages (Message Type 0xD)
Flex Data Messages are used to send messages to a Channel, Group or a Function Block. New Flex Data Messages include Lyric and Text messages as well messages useful to the MIDI Clip Specification.
Added Utility Messages for use in the MIDI Clip File specification.
Deprecated MIDI-CI Protocol Negotiation
These mechanisms have been replaced by MIDI Endpoint mechanisms and the Protocol Request and Protocol Notification Utility Messages.
Added a Per-Note Pitch Sensitivity Registered Controller Message
Clarifying specific CC/RPN Message translation between MIDI 1.0 and MIDI 2.0 Protocol
Added MIDI 2.0 Addressing Appendix to help clarify if messages are meant for a Channel, Group, Function Block or MIDI Endpoint.
Other Adopted MIDI 2.0 Specifications available on the site for download.
You must be logged in as a TMA member to download the spec. If you are not a member yet (or not logged in) , clicking on the link will take you to the signup page to either create an account or log in.
CORPORATE MEMBERS HAVE ACCESS TO ALL SPECIFICATIONS INCLUDING THESE AND OTHERS UNDER DEVELOPMENT:
UMP Network Transport for Ethernet and Wireless Connectivity
UMP Serial Transport
Piano Profile
Orchestral Articulation Profile for MIDI 2.0 Note On and Note Off
MPE Profile
OS API Implementation Guide
Camera Control Profile
DAW and Mixer Control Profile
MIDI 2.0 Container File Format (SMF2)
What is MIDI 2.0?
Back in 1983, musical instrument companies that competed fiercely against one another nonetheless banded together to create a visionary specification—MIDI 1.0, the first universal Musical Instrument Digital Interface. Nearly four decades on, it’s clear that MIDI was crafted so well that it has remained viable and relevant. Its ability to join computers, music, and the arts has become an essential part of live performance, recording, smartphones, and even stage lighting. Now, MIDI 2.0 takes the specification even further, while retaining backward compatibility with the MIDI 1.0 gear and software already in use. Here’s why MIDI 2.0 is the biggest advance in music technology in decades.
MIDI 2.0 Means Two-way MIDI Conversations
MIDI 1.0 messages went in one direction: from a transmitter to a receiver. MIDI 2.0 is bi-directional and changes MIDI from a monologue to a dialog. For example, with the new MIDI-CI (Capability Inquiry) messages, MIDI 2.0 devices can talk to each other, and auto-configure themselves to work together. They can also exchange information on functionality, which is key to backward compatibility—MIDI 2.0 gear can find out if a device doesn’t support MIDI 2.0, and then simply communicate using MIDI 1.0.
Higher Resolution, More Controllers and Better Timing
To deliver an unprecedented level of nuanced musical and artistic expressiveness, MIDI 2.0 re-imagines the role of performance controllers, the aspect of MIDI that translates human performance gestures to data computers can understand. Controllers are now easier to use, and there are more of them: over 32,000 controllers, including controls for individual notes. Enhanced, 32-bit resolution gives controls a smooth, continuous, “analog” feel. New Note-On options were added for articulation control and precise note pitch. In addition, dynamic response (velocity) has been upgraded. What’s more, major timing improvements in MIDI 2.0 can apply to MIDI 1.0 devices—in fact, some MIDI 1.0 gear can even “retrofit” certain MIDI 2.0 features.
Profile Configuration
MIDI gear can now have Profiles that can dynamically configure a device for a particular use case. If a control surface queries a device with a “mixer” Profile, then the controls will map to faders, panpots, and other mixer parameters. But with a “drawbar organ” Profile, that same control surface can map its controls automatically to virtual drawbars and other keyboard parameters—or map to dimmers if the profile is a lighting controller. This saves setup time, improves workflow, and eliminates tedious manual programming.
Property Exchange
While Profiles set up an entire device, Property Exchange messages provide specific, detailed information sharing. These messages can discover, retrieve, and set many properties like preset names, individual parameter settings, and unique functionalities—basically, everything a MIDI 2.0 device needs to know about another MIDI 2.0 device. For example, your recording software could display everything you need to know about a synthesizer onscreen, effectively bringing hardware synths up to the same level of recallability as their software counterparts.
Built for the Future.
MIDI 2.0 is the result of a global, decade-long development effort. Unlike MIDI 1.0, which was initially tied to a specific hardware implementation, a new Universal MIDI Packet format makes it easy to implement MIDI 2.0 on any digital transport (like USB or Ethernet). To enable future applications that we can’t envision today, there’s ample space reserved for brand-new MIDI messages.
Further development of the MIDI specification, as well as safeguards to ensure future compatibility and growth, will continue to be managed by the MIDI Manufacturers Association working in close cooperation with the Association of Musical Electronics Industry (AMEI), the Japanese trade association that oversees the MIDI specification in Japan.
MIDI will continue to serve musicians, DJs, producers, educators, artists, and hobbyists—anyone who creates, performs, learns, and shares music and artistic works—in the decades to come.
DATA FORMATS: MIDI 1.0 BYTE STREAM DATA FORMAT AND UNIVERSAL MIDI PACKET FORMAT
1983: MIDI 1.0 originally defined a byte stream data format and a dedicated 5 pin DIN cable as the transport. When computers became part of the MIDI environment, various other transports were needed to carry the byte stream, including software connections between applications. What remained common at the heart of MIDI 1.0 was the byte stream data format.
The MIDI 1.0 Data Format defines the byte stream as a Status Byte followed by data bytes. Status bytes have the first bit set high. The number of data bytes is determined by the Status.
The Universal MIDI Packet (UMP) Format, introduced as part of MIDI 2.0, uses a packet-based data format instead of a byte stream. Packets can be 32 bits, 64 bits, 96 bits, or 128 bits in size.
This format, based on 32 bit words, is more friendly to modern processors and systems than the byte stream format of MIDI 1.0. It is well suited to transports and processing capabilities that are faster and more powerful than those when MIDI 1.0 was introduced in 1983.
The first nibble in each packet declares the Message Type. Each Message Type has a defined size and standard format.
Example: MIDI 2.0 Protocol messages in the UMP Format have higher resolution data and can have added properties in new data fields. Here is a comparison of a MIDI 1.0 Note On message in the byte stream format and a MIDI 2.0 Note On message in UMP Format.
Addressing: UNIVERSAL MIDI PACKET FORMAT EXPANDS BEYOND MIDI 1.0 FORMAT
In MIDI 1.0 byte stream format, the value of the Status Byte of the message determines whether the message is a System Message or a Channel Voice Message. System Messages are addressed to the whole connection. Channel Voice Messages are addressed to any of 16 Channels, with the Channel number declared in the 2nd nibble of the Status Byte.
The Universal MIDI Packet introduces an optional Group field for messages. Each Message Type is defined to be addressed with a Group or without a Group field (“Groupless”).
These mechanisms expand the addressing space beyond that of MIDI 1.0. Groupless Messages are addressed to the whole connection. Other messages are addressed to a specific Group, either as a System message for that whole Group or to a specific Channel within that Group.
All MIDI 1.0 System Messages and Channel Voice messages have equivalent messages within a single Group of the UMP Format. Each Group is roughly comparable to a MIDI 1.0 connection when performing Translations between MIDI 1.0 Byte Stream Format and UMP Format. So 16 Groups can be translated to/from 16 MIDI 1.0 byte stream connections.
TRANSPORTS AND FILES: WITH UNIVERSAL MIDI PACKET FORMAT
The Universal MIDI Packet is intended to be the native format for all future MIDI systems supporting both MIDI 1.0 and MIDI 2.0. New or updated, bidirectional transports and new file formats are needed to use the Universal MIDI Packet Format.
UNIVERSAL SERIAL BUS
USB has become a widely used transport for MIDI 1.0. The USB-IF working group has published the USB Class Definition for MIDI Devices v2.0 specification. This uses the Universal MIDI Packet as its native data format for connections between devices and computers.. This includes a mechanism for fall back to USB MIDI 1.0. Both specifications are available for download from https://www.usb.org/documents?search=midi

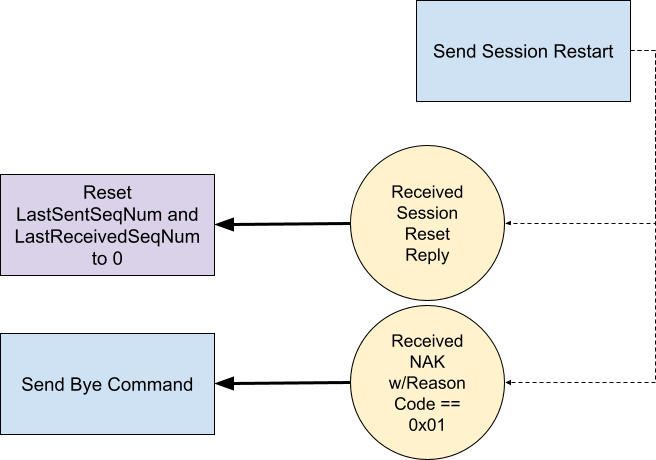

NETWORK
The MIDI Association’s Transport Working Group is currently developing a specification to use the Universal MIDI Packet on network connections for multiple devices, with or without a computer.
OPERATING SYSTEM API FOR MIDI 2.0 – APPLE, GOOGLE, MICROSOFT, LINUX
The MIDI Association’s OS API Working Group is developing implementation guidelines for developers. Key members include representatives for operating systems from Apple, Google, and Microsoft, as well as the ALSA team for Linux. These members have been cooperating to unify architectural concepts as much as possible in their diverse environment so that developers can find core, common concepts across platforms.
MIDI 2.0 requires new Standard MIDI File formats to support the UNiversal MIDI Packet. There are 2 file formats expected, one published and another under development.
This MIDI Clip File specification defines a Standard MIDI File format which supports all MIDI 1.0 data and all MIDI 2.0 data. The MIDI Clip File serves a role which is similar to the version 1 Standard MIDI File Type 0, with all data in a single sequence of Universal MIDI Packet messages.
The MIDI Container File specification is currently under development, with expected release in 2024. This MIDI Container File supports the Universal MIDI Packet data format by containing one or more MIDI Clip Files, arranged in one or more tracks. This container format also expands the applications and markets for Standard MIDI Files by allowing the inclusion of other media files including musical notation, audio, video, and application-specific files.
The Standard MIDI File version 1 specifications for Type 0 and Type 1 defined certain non-MIDI data as Meta Events. In fact, MIDI SMF1 was developed before the concept of metadata was well defined in the multimedia industry and was ahead of its time in codifying authors, publishers, tempo, key signatures and other aspects of musical performance that have now become standardized for the Internet.
MIDI 2.0 provides more space to define new messages, so these Meta Events have been replaced by new MIDI messages that can be sent over MIDI transports. These new messages can be found in the UMP Format and MIDI 2.0 Protocol specification, V1.1.
JITTER REDUCTION TIMESTAMPS FOR TRANSPORTS
The Universal MIDI Packet format adds an optional Jitter Reduction Timestamp mechanism using 2 messages:
The JR Clock message defines the current time of the Sender. The Sender sends independent JR Clock messages, not related to any other message.
The JR Timestamp message can be prepended to any MIDI 1.0 Protocol message or MIDI 2.0 Protocol message for improved timing accuracy over any transport.
DELTA CLOCKSTAMPS FOR SMF2
Delta Clockstamp mechanism is used in a MIDI Clip File to declare precise timing of events in a sequence file. A Delta Clockstamp Ticks Per Quarter Note sets the timing resolution and accuracy. Then Delta Clockstamp messages declare the number of ticks since the last event. The timing of every non-Clockstamp message is set by the most recent preceding Delta Clockstamp.
DISCOVERY
UMP Endpoint
The UMP Format defines mechanisms for Devices to discover fundamental properties of other Devices to connect, communicate and address messages. Discoverable properties on a UMP Endpoint include:
1. Device Identifiers: Name, Manufacturer, Model, Version, and Product Instance Id (e.g. Serial Number).
2. Data Formats Supported: Version of UMP Format*, MIDI Protocols, and whether Jitter Reduction Timestamps can be used.
3. Device Topology: including which Groups are currently valid for transmitting and receiving messages and which Groups are available for MIDI-CI transactions.
These properties can be used for Devices to auto-configure through bidirectional transactions, thereby enabling the best connectivity between the Devices. These properties can also provide useful information to users for
Function Blocks
A Device uses Function Block messages to report topology information including the Group address(es) in use. It also reports metadata including the name of the function, MIDI-CI support, hints for user interfaces which expose senders and receivers for user connection choices, and more.
MIDI-CI – MIDI Capability Inquiry
MIDI-CI is used to discover information about the MIDI features found on each Function Block, Group, and/or MIDI Channel of a Device. MIDI-CI includes queries for three major areas of MIDI functionality:
Profile Configuration: Profiles define specific implementations of a set of MIDI messages chosen to suit a particular instrument, Device type, or to accomplish a particular task. Two Devices that conform to the same Profile will generally have greater interoperability between them than Devices using MIDI without Profiles. Profiles increase interoperability and ease of use while reducing the amount of manual configuration of Devices by users.
Property Exchange is used to Inquire, Get, and Set many properties including but not limited to Device configuration settings, a list of controllers and resolution, a list of patches with names and other metadata, manufacturer, model number, and version. All data is expressed using JSON key:value properties inside System Exclusive messages.
Process Inquiry allows discovery of the current state of properties which are controllable by MIDI Messages in a device including:
• Values controlled by System Messages
• Values controlled by Channel Controller Messages
• Values controlled by Note Data Messages
MIDI MESSAGES
The Universal MIDI Packet Data Format can carry MIDI 1.0 Protocol messages or MIDI 2.0 Protocol messages.
MIDI 1.0 Protocol Inside the Universal MIDI Packet
All existing MIDI 1.0 messages are carried in the Universal MIDI 1.0. As an example, this diagram from the protocol specification shows how MIDI 1.0 Channel Voice Messages are carried in 32-bit packets:
System messages, other than System Exclusive, are encoded similarly to Channel Voice Messages. System Exclusive messages vary in size, can be very large, and can span multiple Universal MIDI Packets.
MIDI 2.0 Protocol Messages
The MIDI 2.0 Protocol uses the architecture of MIDI 1.0 Protocol to maintain backward compatibility and easy translation while offering expanded features.
Extends the data resolution for all Channel Voice Messages.
Makes some messages easier to use by aggregating combination messages into one atomic message.
Adds new properties for several Channel Voice Messages.
Adds several new Channel Voice Messages to provide increased Per-Note control and musical expression.
Adds New data messages include System Exclusive 8 and Mixed Data Set. The System Exclusive 8 message is very similar to MIDI 1.0 System Exclusive but with 8-bit data format. The Mixed Data Set Message is used to transfer large data sets, including non-MIDI data.
Keeps all System messages the same as in MIDI 1.0.
Expanded Resolution and Expanded Capabilities
This example of a MIDI 2.0 Protocol Note message shows the expansions beyond the MIDI 1.0 Protocol equivalent. The MIDI 2.0 Protocol Note On has higher resolution Velocity. The 2 new fields, Attribute Type and Attribute data field, provide space for additional data such as articulation or tuning details
Easier to Use: Registered Controllers (RPN) and Assignable Controllers (NRPN)
Creating and editing RPNs and NRPNs with MIDI 1.0 Protocol requires the use of compound messages. These can be confusing or difficult for both developers and users. MIDI 2.0 Protocol replaces RPN and NRPN compound messages with single messages. The new Registered Controllers and Assignable Controllers are much easier to use.
The MIDI 2.0 Protocol replaces RPN and NRPN with 16,384 Registered Controllers and 16,384 Assignable Controller that are as easy to use as Control Change messages.
Managing so many controllers might be cumbersome. Therefore, Registered Controllers are organized in 128 Banks, each Bank having 128 controllers. Assignable Controllers are also organized in 128 Banks, each Bank having 128 controllers.
Registered Controllers and Assignable Controllers support data values up to 32bits in resolution.
MIDI 2.0 Program Change Message
MIDI 2.0 Protocol combines the Program Change and Bank Select mechanism from MIDI 1.0 Protocol into one message. The MIDI 1.0 mechanism for selecting Banks and Programs requires sending three MIDI messages. MIDI 2.0 changes the mechanism by replicating the Banks Select and Program Change in one new MIDI 2.0 Program Change message. Banks and Programs in MIDI 2.0 translate directly to Banks and Programs in MIDI 1.0.
The MIDI 2.0 Program Change message always selects a Program. A Bank Valid bit (B) determines whether a Bank Select is also performed by the message.
If Bank Valid = 0, then the receiver performs the Program Change without selecting a new Bank; The receiver keeps its currently selected Bank. Bank MSB and Bank LSB data fields are filled with zeroes.
If Bank Valid = 1, then the receiver performs both Bank and Program Change.
Other option flags that are not defined yet and are Reserved.
New Data Messages for MIDI 1.0 Protocol and MIDI 2.0 Protocol
New data messages include System Exclusive 8 and Mixed Data Set. The System Exclusive 8 message is very similar to MIDI 1.0 System Exclusive but with 8-bit data format. The Mixed Data Set Message is used to transfer large data sets, including non-MIDI data. Both messages can be used when using the Universal MIDI Packet format for MIDI 1.0 Protocol or MIDI 2.0 Protocol.
1.6 The Future of MIDI 1.0
MIDI 1.0 is not being replaced. Rather it is being extended and is expected to continue, well integrated with the new MIDI 2.0 environment. It is part of the Universal MIDI Packet, the fundamental MIDI data format. Many MIDI devices will not need any of the new features of MIDI 2.0 in order to perform all their functions. Some devices will continue to use the MIDI 1.0 Protocol while using other extensions of MIDI 2.0, such as Profile Configuration or Property Exchange.
What’s Next
MIDI 1.0 works really well. In fact, MIDI 2.0 is just more MIDI. As new features arrive on new instruments, they will work with existing devices and system. The same is true for the long list of other additions made to MIDI since 1983. MIDI 2.0 is just part of the evolution of MIDI that has gone on for 36 years. The step by step evolution continues.
Various Working Groups of the MIDI Association hold weekly or bi-weekly meetings to continue the development of MIDI 2.0.
A great example of the collaboration inside the MIDI Association is the meeting that happened in Tokyo, April 2023. All of the major OS companies gathered with Japanese MIDI manufacturers to talk about details of handling MIDI 2.0 in operating systems. In the true spirit of MIDI, companies set aside their differences and competitive natures to cooperate for the greater benefit of musicians around the world.
All kinds of companies, all kinds of devices One of the things that has always made MIDI unique in the world of standards is that no one owns MIDI and the MIDI Associations (AMEI in Japan and The MIDI Association in the rest of the world) don’t sell anything. We (AMEI and The MIDI Association) get companies to volunteer their s…
On the Monday after each NAMM Show, some of the dedicated team of volunteer MMA and AMEI members attend an all day planning meeting to map out the plans for the next year.
Lawrence Levine – Horn, MMA Exec Board, MIDI 2.0 Marketing working group co-chair
Holding MIDI 2.0 banner:
Andrew Mee – Yamaha consultant for Property Exchange
Rob Rampley- Media Overkill
Why Join the MMA (MIDI Manufacturers Association)
If you are a developer of MIDI software or hardware, there are a lot of reasons to join the MIDI Manufacturers Association now. This article includes some information about MIDI 2.0, but it is definitely not enough to start developing a MIDI 2.0 product. The reason we do not release specification details before they are finally approved is that if information is released too early and then changes are made, it can lead to interoperability problems.
If you join the MMA now, you not only get access to the current version of the full MIDI 2.0 specification, but will also have a voice in future MIDI specifications including Profiles and Property Exchange messages.
To implement MIDI-CI and MIDI 2.0, you need a manufacturers SysEx ID. A SysEx ID by itself is $260 a year, but it is included with your MMA membership. You will also have access to the MMA Github which has code for MIDI 2.0 to MIDI 1.0 translation (and vis versa), MIDI 2.0 Scope, a tool for sending and testing MIDI 2.0 messages developed by Art and Logic and Property Exchange Work Bench, an application developed by Yamaha for prototyping and testing Property Exchange.
We are also working on a MIDI 2.0 logo and logo licensing program.
So we encourage you to join the MIDI Manufacturers Association now and get access to all the documents you will need to get a head start on MIDI 2.0.
We have been monitoring the comments on a number of websites and wanted to provide some FAQs about MIDI 2.0 as well as videos of some requested MIDI 2.0 features.
Will MIDI 2.0 devices need to use a new connector or cable?
No, MIDI 2.0 is a transport agnostic protocol.
Transport- To transfer or convey from one place to another
Agnostic- designed to be compatible with different devices
Protocol-a set of conventions governing the treatment and especially the formatting of data in an electronic communications system
That’s engineering speak for MIDI 2.0 is a set of messages and those messages are not tied to any particular cable or connector.
When MIDI first started it could only run over the classic 5 Pin DIN cable and the definition of that connector and how it was built was described in the MIDI 1.0 spec.
However soon the MIDI Manufacturers Association and Association of Music Electronic Industries defined how to run MIDI over many different cables and connectors.
So for many years, MIDI 1.0 has been a transport agnostic protocol..
MIDI 1.0 messages currently run over 5 PIN Din, serial ports, Tip Ring Sleeve 1/8″ cables, Firewire, Ethernet and USB transports.
Can MIDI 2.0 run over those different MIDI 1.0 transports now?
Yes, MIDI 2.0 products can use MIDI 1.0 protocol and even use 5 Pin DIN if they support the Automated Bi-Directional Communication of MIDI-CI and :
One or more Profiles controllable by MIDI-CI Profile Configuration messages.
Any Property Data exchange by MIDI-CI Property Exchange messages.
Any Process Inquiry exchange by MIDI-CI Process Inquiry messages.
However to run the Universal MIDI Packet and take advantage of MIDI 2.0 Voice Channel messages with expanded resolution, there needs to be new specifications written for each transport.
The new Universal Packet Format that will be common to all new transports defined by AMEI and The MIDI Associaton. The new Universal Packet contains both MIDI 1 .0 messages and MIDI 2.0 Voice Channel Messages plus some messages that can be used with both.
The most popular MIDI transport today is USB. The vast majority of MIDI products are connected to computers or hosts via USB.
The USB specification for MIDI 2.0 is the first transport specification completed, but we are working on a UMP Network Transport for Ethernet and Wireless Connectivity
Can MIDI 2.0 provide more reliable timing?
Yes. Products that support the new USB MIDI Version 2 UMP format can provide higher speed for better timing characteristics. More data can be sent between devices to greatly lessen the chances of data bottlenecks that might cause delays.
UMP format also provides optional “Jitter Reduction Timestamps”. These can be implemented for both MIDI 1.0 and MIDI 2.0 in UMP format.
With JR Timestamps, we can mark multiple Notes to play with identical timing. In fact, all MIDI messages can be tagged with precise timing information. This also applies to MIDI Clock messages which can gain more accurate timing.
Goals of JR Timestamps:
Capture a performance with accurate timing
Transmit MIDI message with accurate timing over a system that is subject to jitter
Does not depend on system-wide synchronization, master clock, or explicit clock synchronization between Sender and Receiver.
Note: There are two different sources of error for timing: Jitter (precision) and Latency (sync). The Jitter Reduction Timestamp mechanism only addresses the errors introduced by jitter. The problem of synchronization or time alignment across multiple devices in a system requires a measurement of latency. This is a complex problem and is not addressed by the JR Timestamping mechanism.
Also we have added Delta Time Stamps to the MIDI Clip File Specification.
Can MIDI 2.0 provide more resolution?
Yes, MIDI 1.0 Voice Channel messages are usually 7 bit (14 bit is possible by not so widely implemented because there are only 128 CC messages).
With MIDI 2.0 Voice Channel Messages velocity is 16 bit.
The 128 Control Change messages, 16,384 Registered Controllers, 16,384 Assignable Controllers, Poly and Channel Pressure, and Pitch Bend are all 32 bit resolution.
Can MIDI 2.0 make it easier to have microtonal control and different non-western scales?
Yes, MIDI 2.0 Voice Channel Messages allow Per Note precise control of the pitch of every note to better support non-western scales, arbitrary pitches, note retuning, dynamic pitch fluctuations or inflections, or to escape equal temperament when using the western 12 tone scale ( see videos).
Yutaka Hasegawa, Chairman of AMEI (the Japanese MIDI organization)
The really exciting part of Automated Bi-Directional Communication is that it paves the way for a new industry standard MIDI protocol which could enable new features like higher resolution, more channels and improved performance and expressiveness (while still maintaining backwards compatibility with current MIDI 1.0 devices). A new MIDI protocol would offer a bridge between music technology and new emerging technologies in other industries and allow creators, performers, and consumers to enjoy new and exciting musical experiences in the future.
Synth and Software’s Nick Batzdorf interviews the MIDI Association about MIDI 2.0, Orchestral Articulations and more!
Check out this interview with MIDI Association Exec Board member Athan BIllias as Nick Batzdorf from Synth and Software digs into details about MIDI 2.0.
From Master Card to Mister Mayor all the Waze to MIDI
Pentagram , the global multi-disciplinary, independently-owned design studio with offices in Austin, Berlin, New York and London has done some of the most original design work on the planet. They do more than logo design although they have done that for clients like Master Card, Mister Mayor and Waze.
Pentagram does graphics and identity, products and packaging, exhibitions and installations, websites and digital experiences, advertising and communications, sound and motion.
Pentagram was commissioned to head up MIDI’s brand identity design to maximise exposure and adoption of MIDI 2.0. Taking centre stage in the identity, the trademark is inspired by musical forms, such as the Stuttgart pitch, which is an oscilloscope reading of sine waves at a frequency of 440 Hz. The Stuttgart pitch serves as a tuning standard for the musical note of A above middle C, or A4 in scientific pitch notation. A440 has been widely adopted as a reference frequency to calibrate acoustic equipment and to tune various musical instruments.
